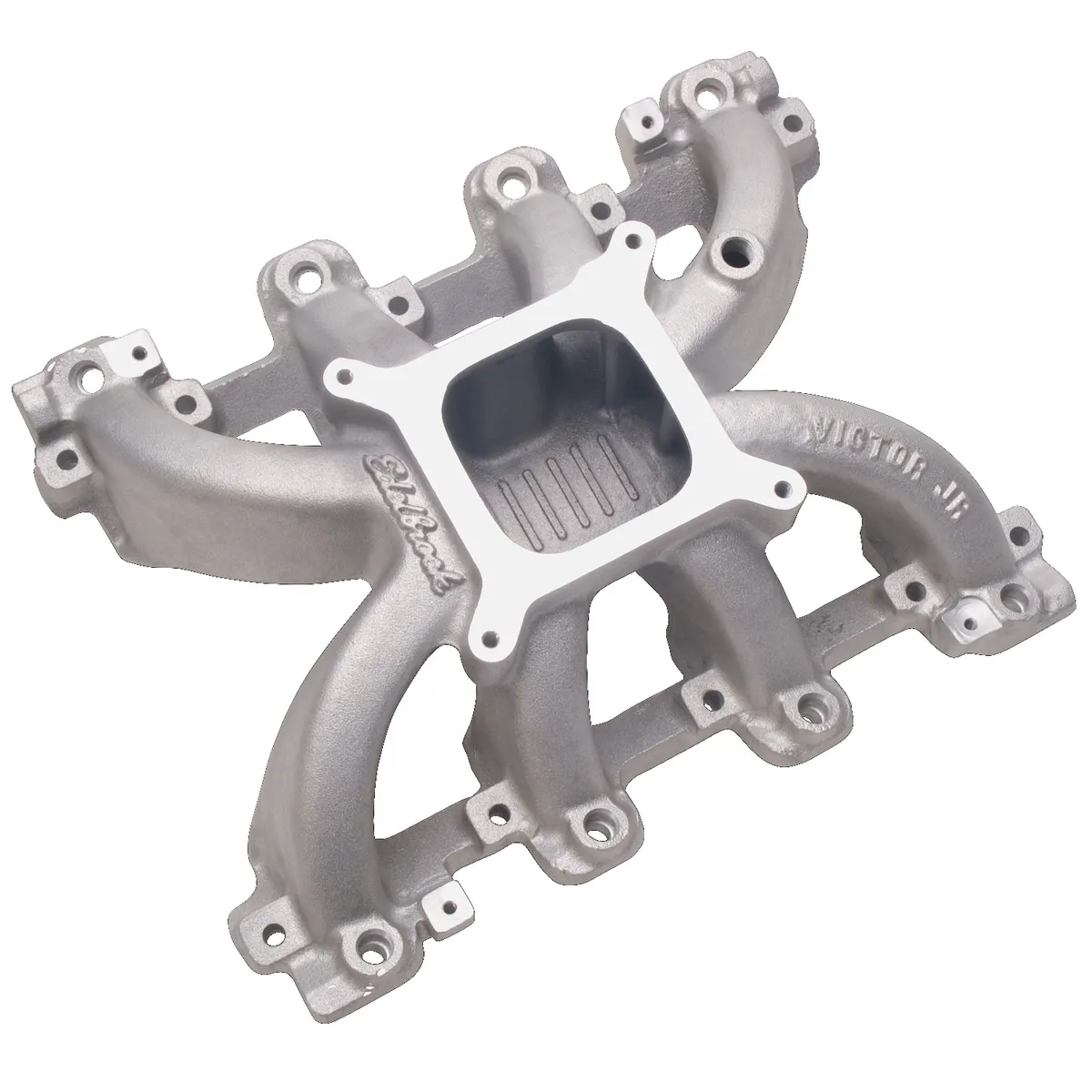

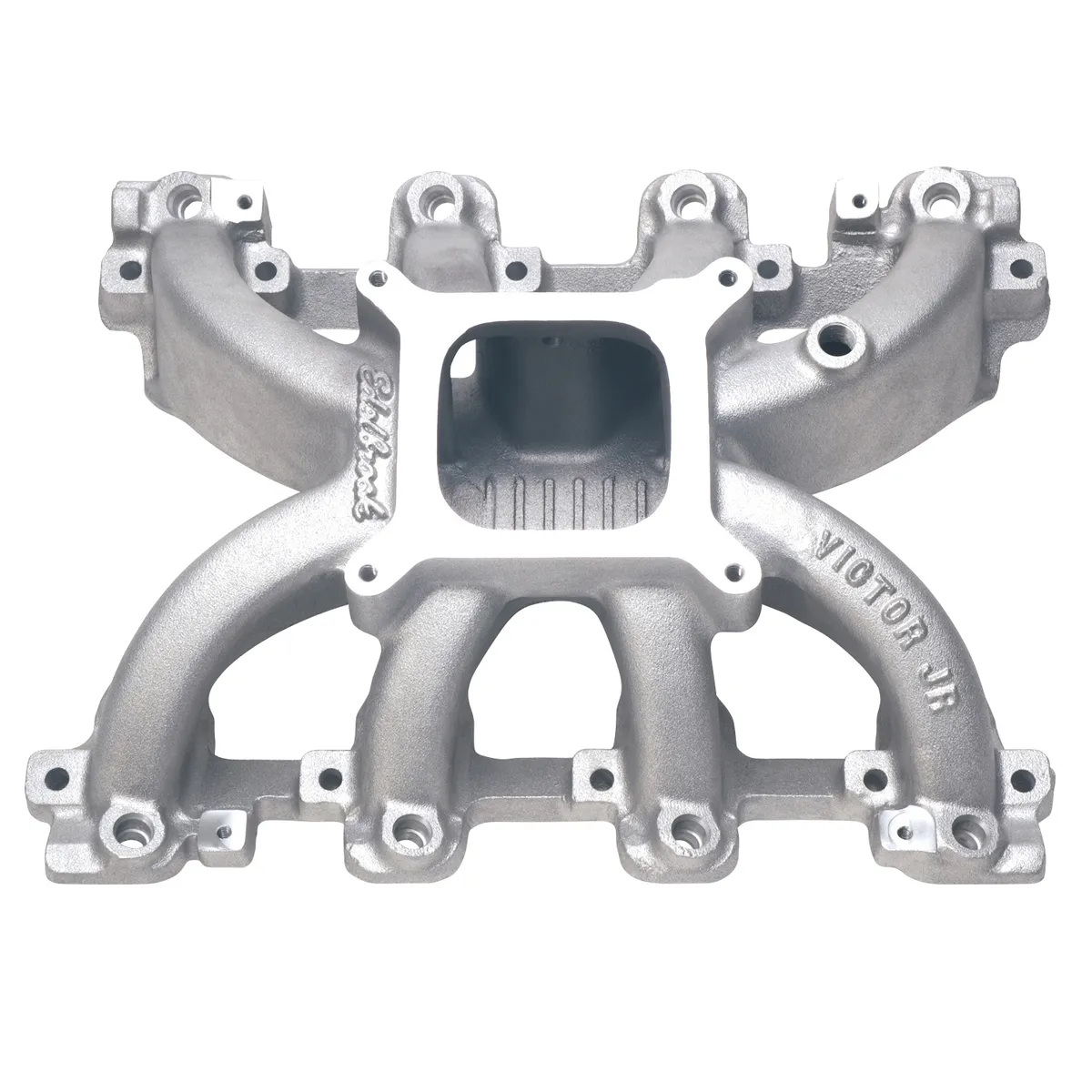

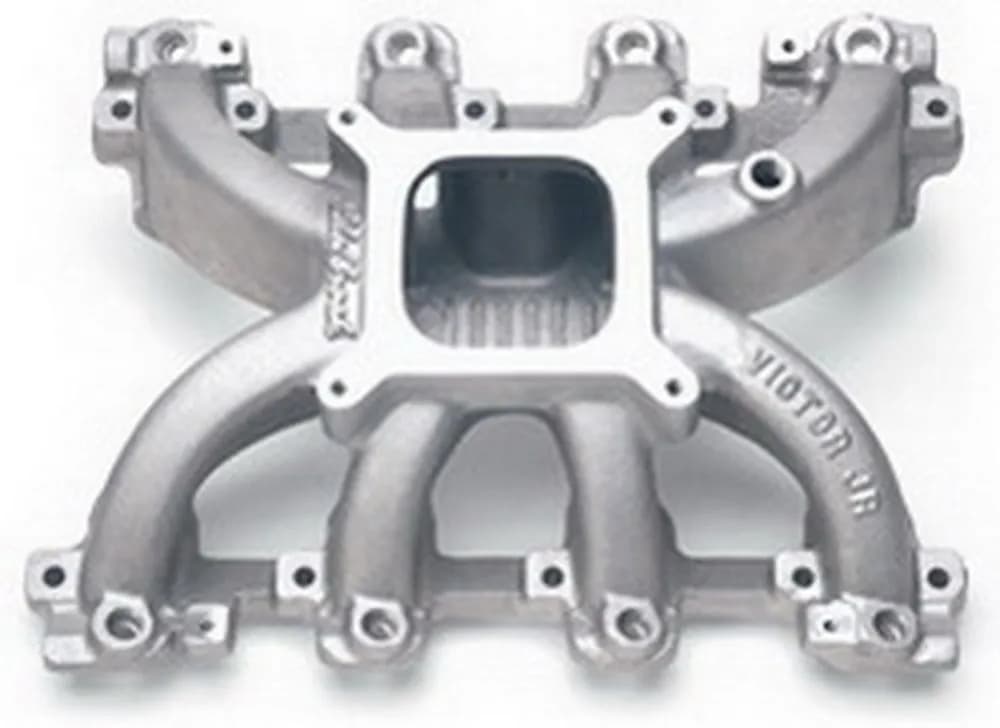

Edelbrock 29085 Victor Jr. Small Block Chevy LS1 EFI Intake Manifold Only
1 / 3
Edelbrock 29085 Victor Jr. Small Block Chevy LS1 EFI Intake Manifold Only
MPN: 29085UPC: 00085347290857In Stock
Almost gone! Only 3 remaining $509.95$530.40SAVE 4%
Starting at $43/mowithaffirm
Intake Manifold - Victor JR. LS1 - Competition EFI Flange - Single Plane - Cathedral Port - Aluminum - Natural - GM LS-Series - Each
Shipping: $11.00· Usually ships in 1-3 business days Intake Manifold
- Victor JR. LS1
- Competition EFI Flange
- Single Plane
- Cathedral Port
- Aluminum
- Natural
- GM LS-Series
- Each
Earn 509 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 16.895 lbs |
| Length | 23.625 in |
| Width | 15.15 in |
| Height | 7.55 in |
| Part Number | 29085 |
| UPC | 00085347290857 |
| Basic Operating RPM Range | 3500-7500 R3 |
| Center Maximum Height | 4.950 IN |
| CNC Ported | No |
| Country of Origin | US |
| EGR Port | No |
| Emissions | Racing or Pre-Emissions Use Only |
| Finish | Satin |
| Flange Type | 4150 |
| Front Maximum Height | 4.950 IN |
| Gasket Or Seal Included | No |
| Grade Type | Performance |
| Height | 7.55 |
| Height (in) | 7 |
| Installation Instructions | 29085.pdf |
| Item Quantity/Size | 1 EA |
| Length | 23.625 |
| Length (in) | 23 |
| Material | Aluminum |
| Qty Per Application | Normal Quantity Used in a Vehicle:1 Each |
| Rear Maximum Height | 4.950 IN |
