Carburetor Thunder Series Avs Dual Quad Annular Boosters 500 Cfm Manual Choke

1 / 5

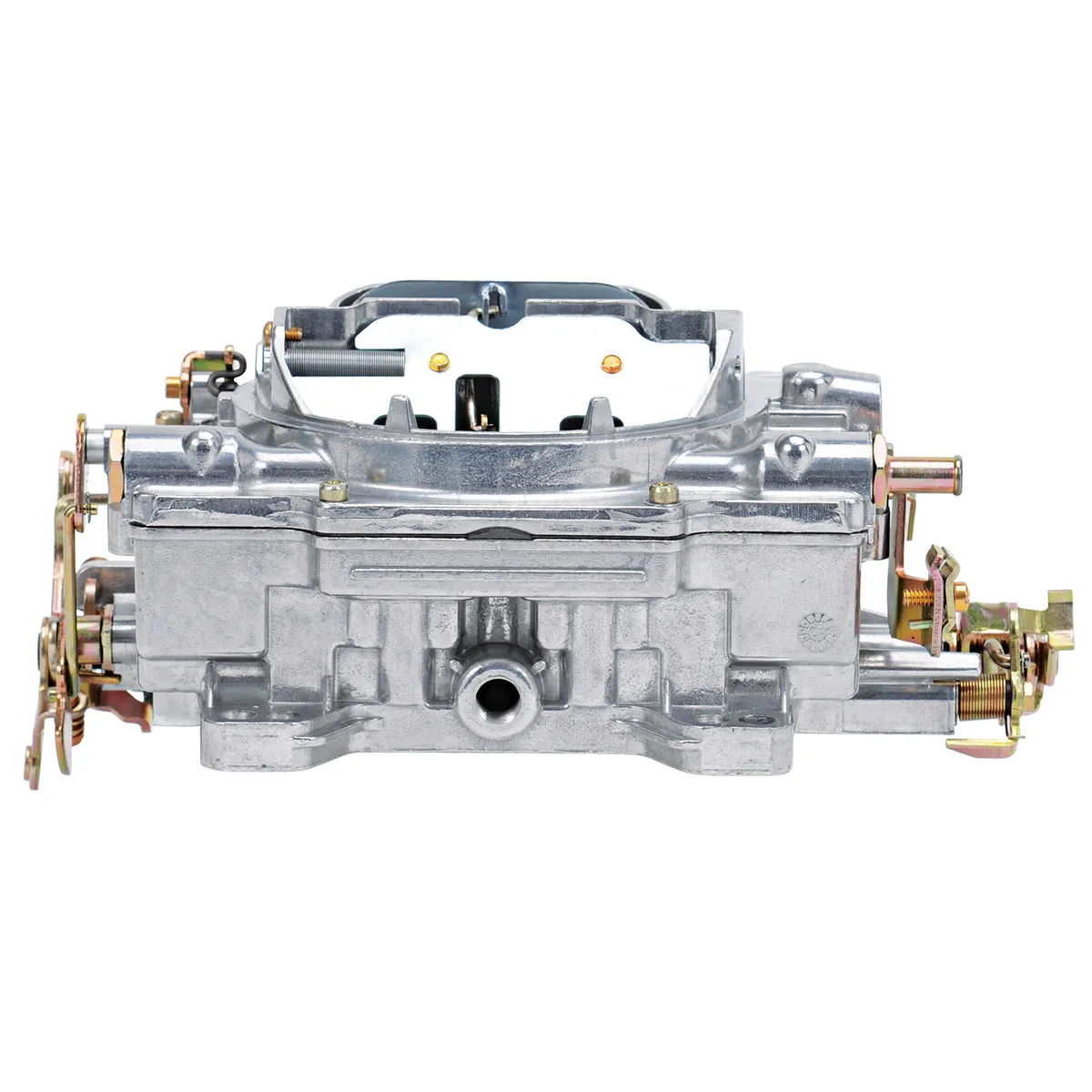

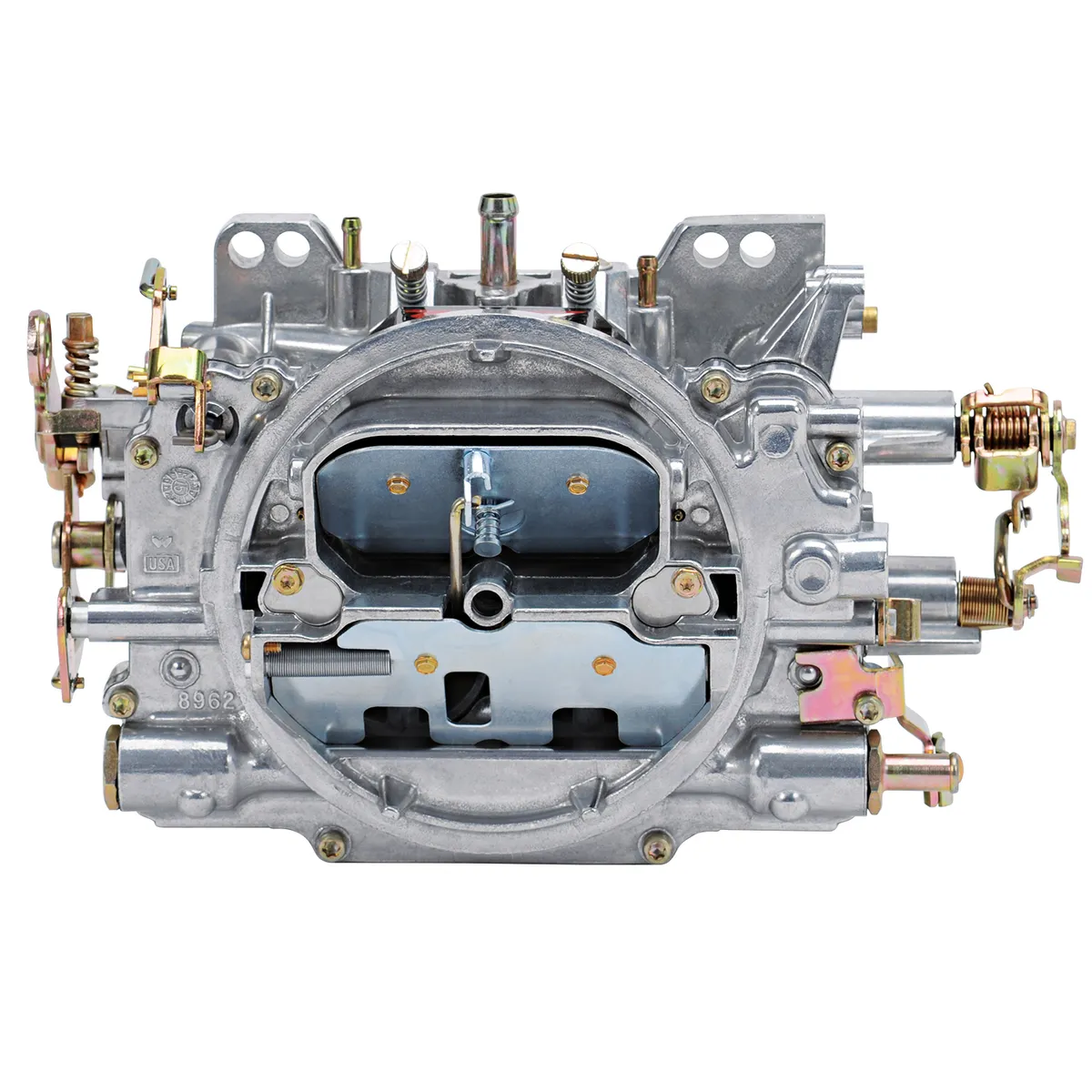

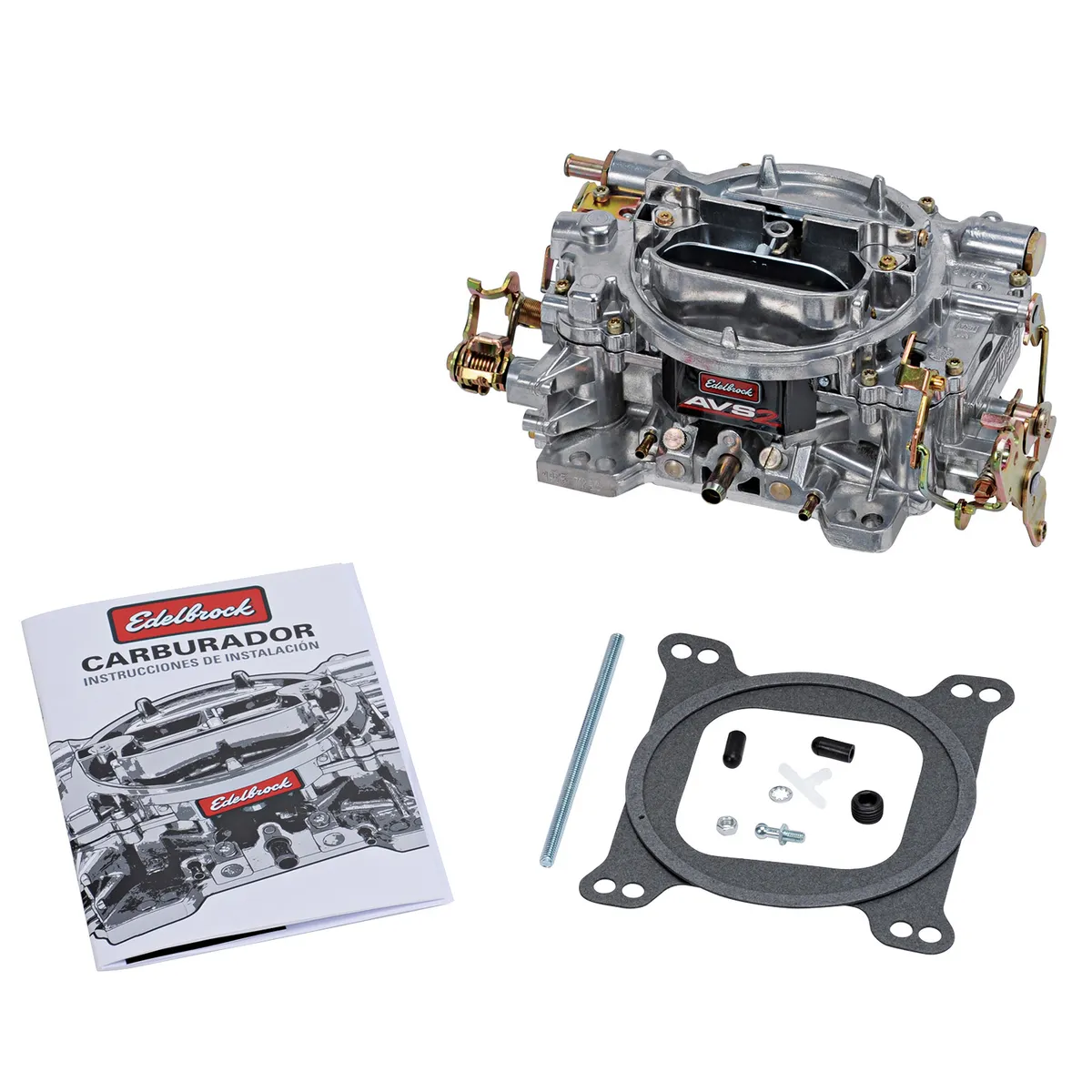

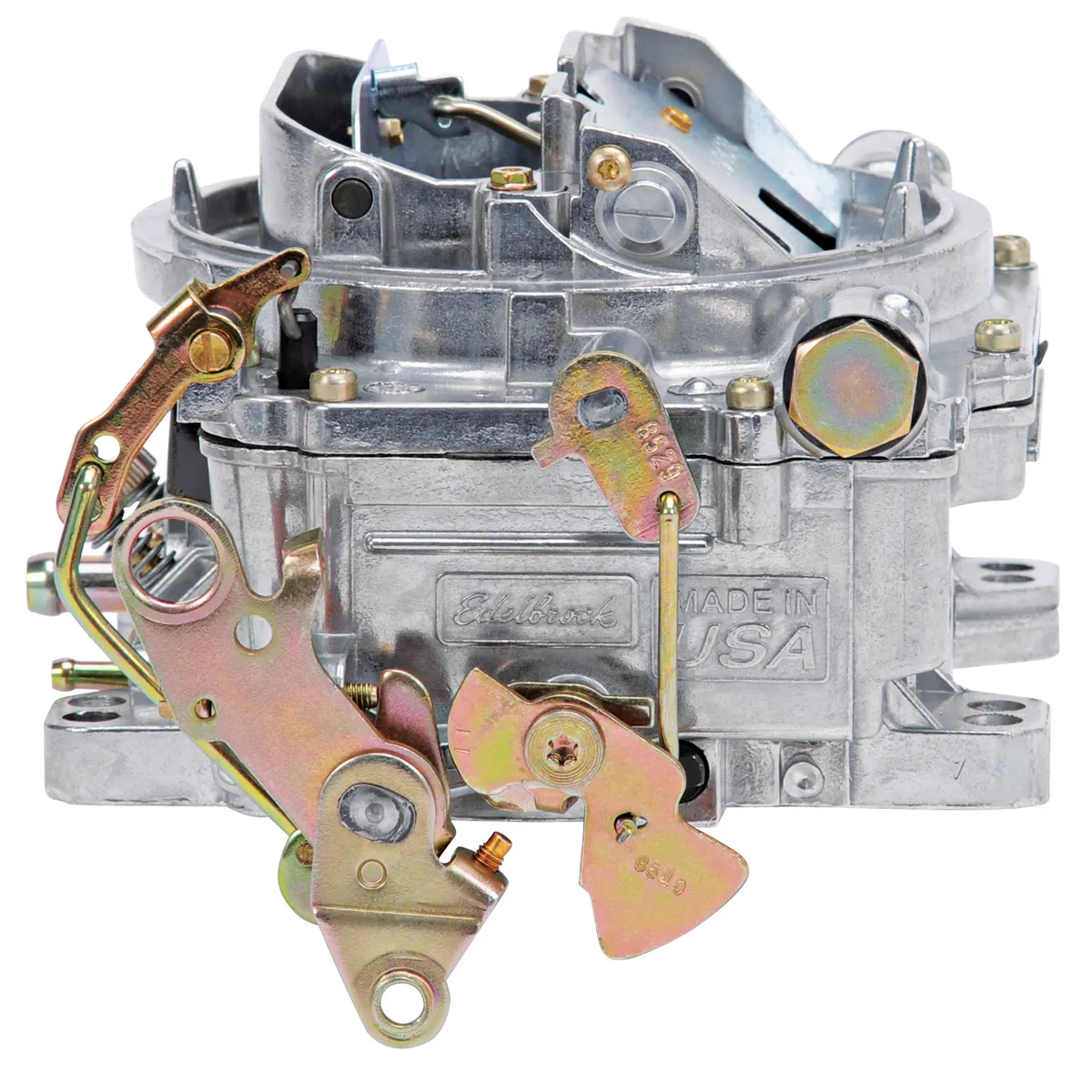

Carburetor Thunder Series Avs Dual Quad Annular Boosters 500 Cfm Manual Choke
MPN: 1904UPC: 00085347019045In Stock
Only 7 left in stock - order soon! $544.95$566.75SAVE 4%
Starting at $46/mowithaffirm
Carburetor - AVS2 - 4-Barrel - 500 CFM - Square Bore - Manual Choke - Mechanical Secondary - Single Inlet - Aluminum - Tumble Polished - Each
Shipping: $11.00· Usually ships in 1-3 business days Carburetor
- AVS2 - 4-Barrel - 500 CFM
- Square Bore
- Manual Choke
- Mechanical Secondary
- Single Inlet
- Aluminum
- Tumble Polished
- Each
Earn 544 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 8.495 lbs |
| Length | 13.3125 in |
| Width | 7.375 in |
| Height | 6.625 in |
| Part Number | 1904 |
| UPC | 00085347019045 |
| Barrel Quantity | 4 Barrel |
| Body Height | 3.25 IN |
| Booster Type | annular |
| Bore Diameter | Primary Bore 1.44 |
| Choke Type | Manual |
| Condition | New |
| Country of Origin | US |
| EGR Port | No |
| Emissions | EPA Eligible |
| Finish | Satin |
| Flange Shape | Square |
| Gasket Or Seal Included | Yes |
| Height | 6.625 |
| Height (in) | 6 |
| Installation Instructions | https://sdda.semadata.org/Standard/Edelbrock/carb-tuning-guide.pdf |
| Item Quantity/Size | 1 EA |
| Length | 13.3125 |
| Length (in) | 13 |
| Main Venturi Diameter | 1.19 IN |
| Material | Aluminum |
