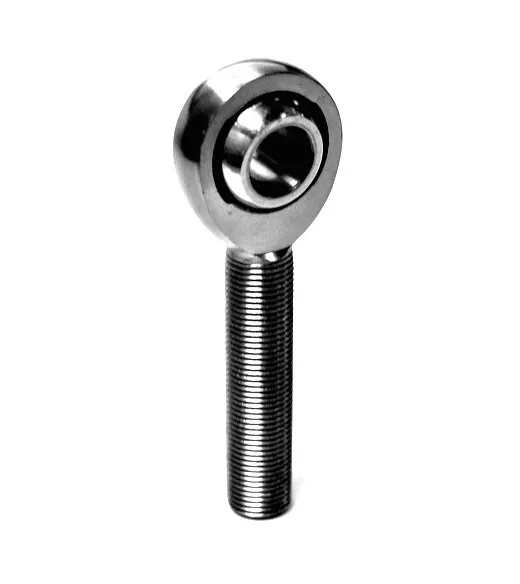

"Universal Rod Ends Inch Male 3/4-16 RH x 3/4 Chrome Moly Housing, Nylon Race Extra Long Stem 1 Pack This design features an EXTRA LONG STEM Quantity Per Package: This package includes one Spherical Rod End Product Name: Male Spherical Rod End Thread: Male 3/4-16 RH x 3.00"" Long Ball ID: 3/4"" Housing Material: 4130 Heat Treated Chrome Moly Steel Finish: Bright Chrome Plated Ball Finish: Hard Chrome Plated Bearing Race: Slotted Nylon Housing Width: 1.755"" Base of Rod End to Center of Ball: 4.125"" Ball Thickness: 0.875"" Ultimate Static Load Rating: 27,019 lbs Common Other Names for this Product: chromoly heim joint, rose joint Application: Our larger chrome moly Spherical Rod Ends are used as sway bar end links, panhard bars, control arms, three link and four link suspensions and strut tower braces. This size rod end is often used in hand or foot actuated push-pull linkages.

Mounting Studs:
This product is available with a factory installed mounting stud. Contact us to enquire about our MXM-12S-A studded rod end.

Warning:
Regardless of a specific product's name or marketing description, rod ends used in the wrong application will fail. We encourage our customers to know the load rating requirements of their application."
