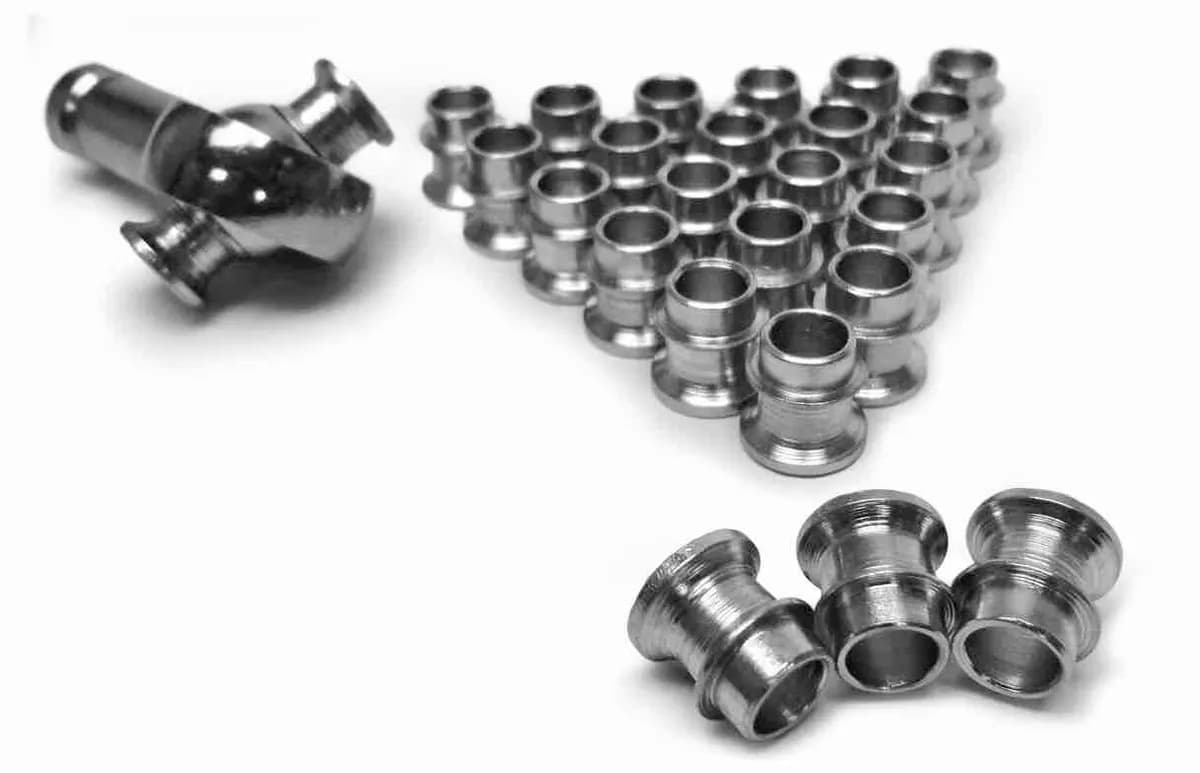

"Universal Rod End Misalignment Inserts For 1 inch Rod Ends Straight Style Yields 5/8 Bore Plated Steel 24 Pack Quantity Per Package: This package includes 24 bushings (enough for 12 spherical rod ends). This item does not include the spherical rod end.

Product Name:
High Misalignment Insert Bushing Fits Rod End Bore Size of: 1"" Bore Size of Insert: 5/8"" Material: Steel Length of Bushing After Installation: Each bushing adds 0.809"" of width to the rod end, or 1.618"" overall (because two bushings are required).

Finish:
Plated Zinc Clear (Silver) Diameter of Flare: 1.500"" Common Other Names for this Product: heim joint bushings, tapered rod end spacers, rod end inserts.

Application:
High Misalignment Bushings are used to increase the misalignment angle of a spherical rod end bearing. Two High Misalignment Bushings are required for each spherical rod end bearing. The high misalignment inserts are a simple slip fit. These bushings provide for more clearance so the bolt head does not minimize the natural cone angle of the spherical rod end bearing.

Typical Mating Part:
These bushings are commonly used in conjuction with our MXM-16 chrome moly spherical rod end bearing, and our STM-16 stainless steel teflon race spherical rod end bearing. They can also be used with some spherical plain bearings, and most 5/8"" bore i.d. spherical rod ends - male or female.

Metric Alternative:
The metric equivalent to this series is our HMBZC-M series."
