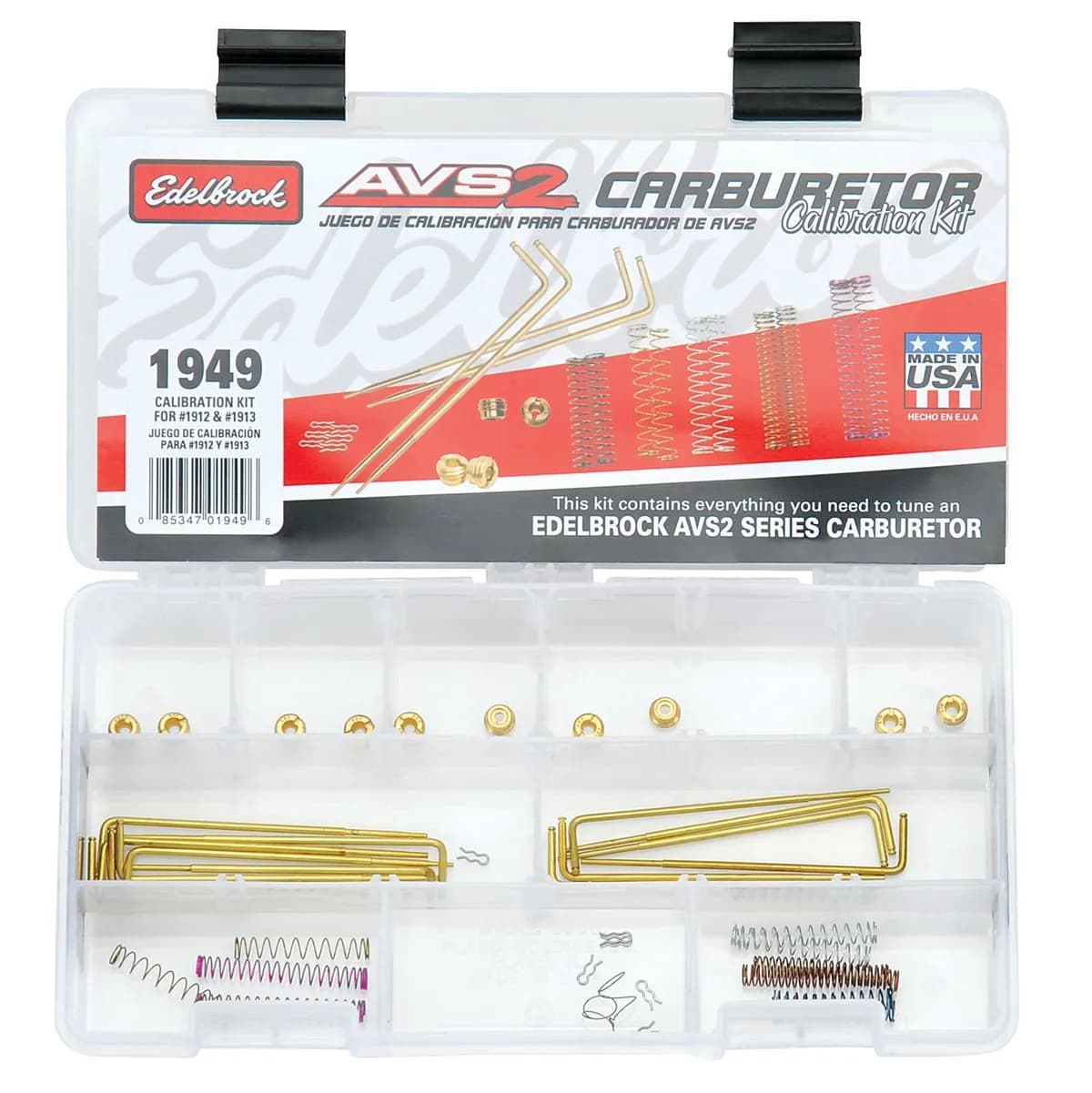

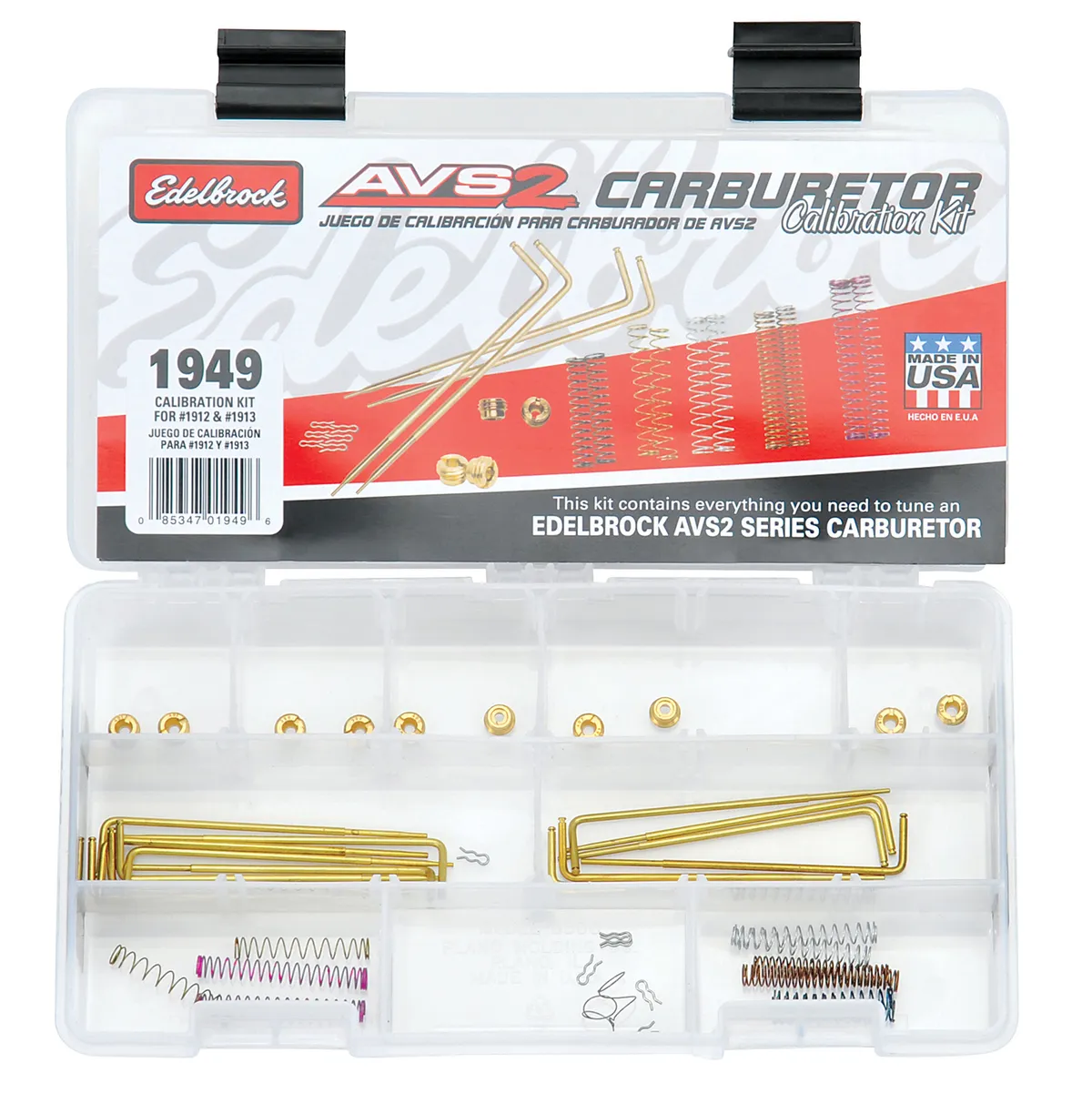

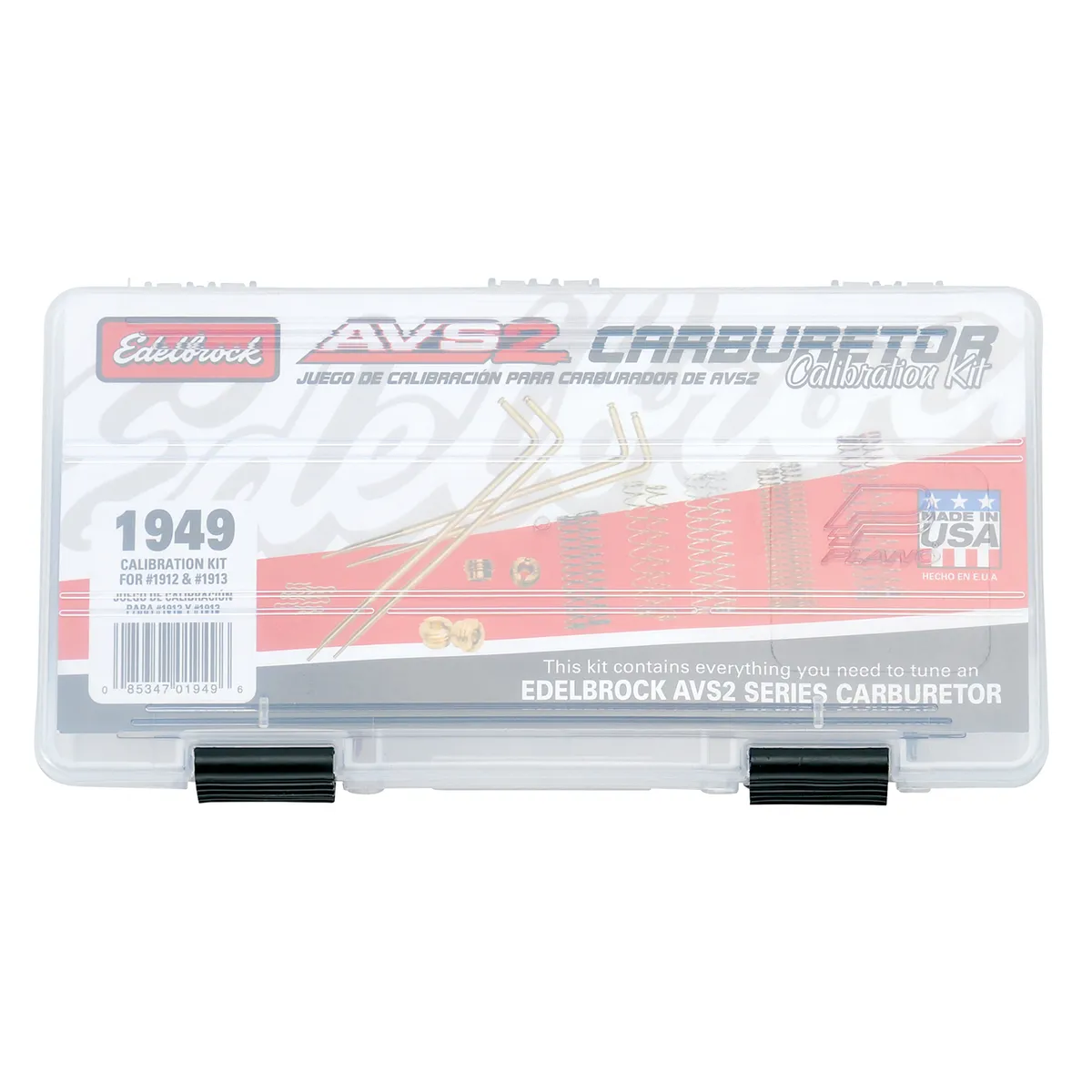

Name: Edelbrock 1949 Edelbrock AVS2 Series Carburetor Calibration Kit #1949
Brand: Edelbrock
SKU: 1949
Price: 88.95 USD
Availability: InStock

Complete the BuildMore from Edelbrock

Clamp-On Hose Fitting

Edelbrock 8166 Heater Hose End Fitting - 90Ã‚° with 1/2 NPT and 3/4 Barb.

$41.95

Engine Timing Cover

Edelbrock 4255 Timing Cover 2004-07 GM LS2 Two Piece

$362.95

Engine Coolant Thermostat

Edelbrock 8604 High Performance Thermostat (53mm) - 180 Deg

$25.00

Intake System Cleaner

Edelbrock 1203 Pro-Flo Black 10 Round Air Cleaner with 2 Paper Element

$40.00

Intake System Cleaner

Edelbrock 1221 Pro-Flo Chrome 14 Round Air Cleaner with 3 Paper Element (Deep Flange)

$47.00

Intake System Cleaner

Edelbrock 1208 Pro-Flo Chrome 10 Round Air Cleaner with 2 Paper Element (Deep Flange)

$37.00

Compare Air and Fuel Delivery Best Air and Fuel Delivery →

Length	9.15 in
Width	4.9 in
Height	1.4 in
Part Number	1949
UPC	00085347019496
Compatibility	Fits With Part Number 1912 1913
Country of Origin	US
Emissions	EPA Eligible
Height	1.5
Height (in)	1.5

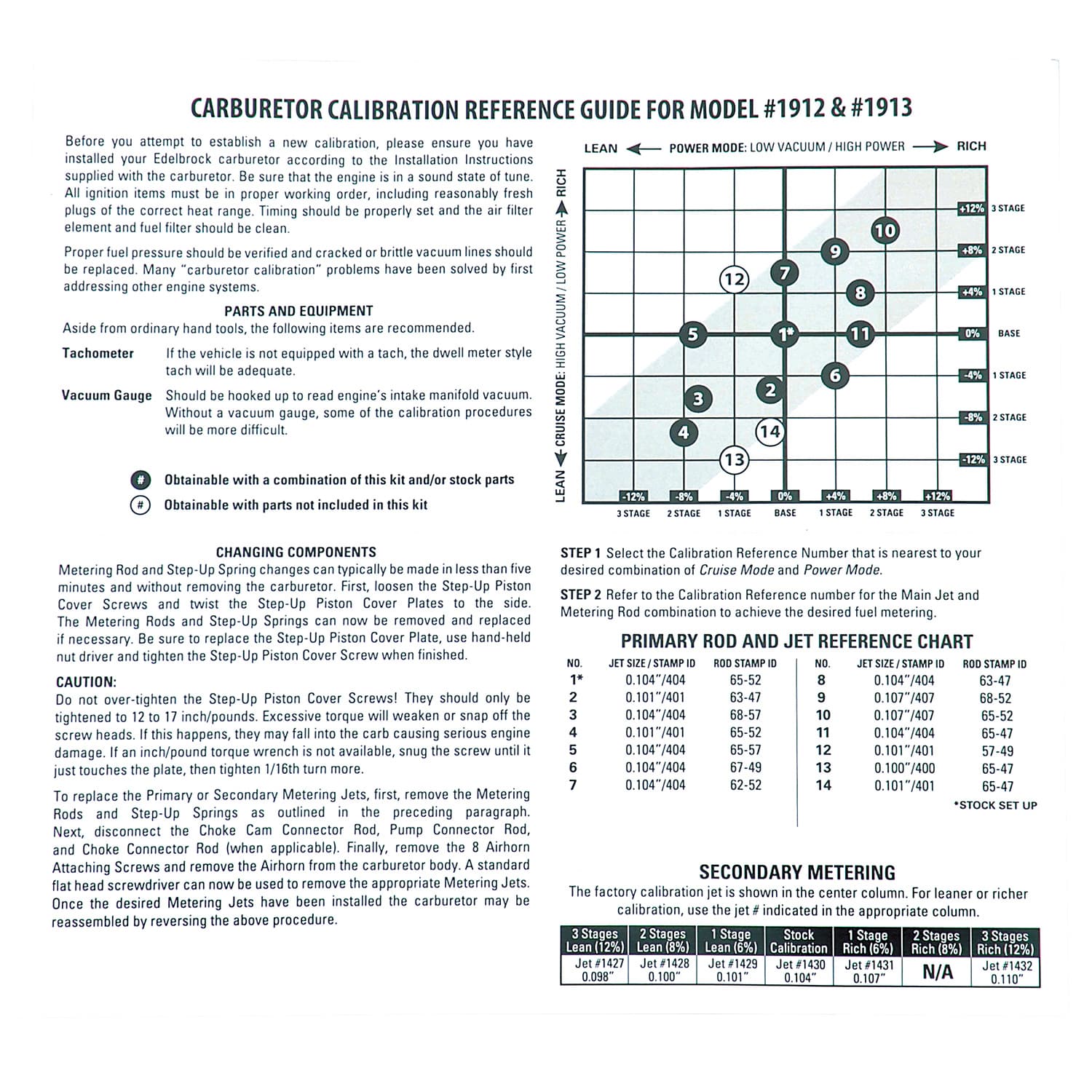

Installation Instructions	1949.pdf
Item Quantity/Size	1 EA
Length	9.15
Length (in)	9

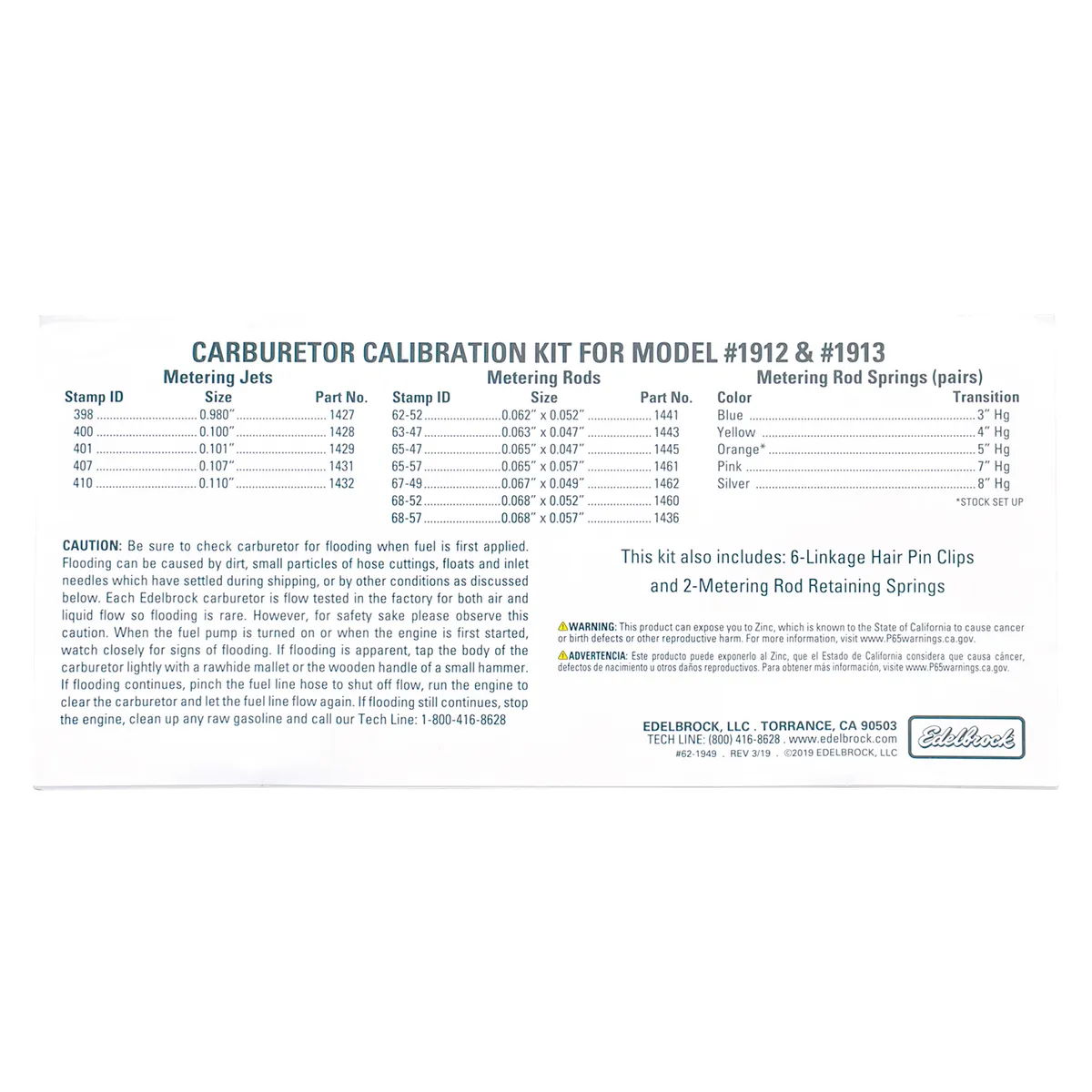

Metering Jet Size	.098 .100 .101 .107 .110 IN
Metering Rod Size	.062 x .052 .063 x .047 .065 x .047 .065 x .057 .067 x .049 .068 x .052 .068 x .057 IN
Qty Per Application	Normal Quantity Used in a Vehicle:1 Each
Quantity	Kit
RGL	WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information visit www.P65warnings.ca.gov.
Series	AVS2
Spring Force	3 Hg (Blue)
Warranty	12 Months
Weight	0.425
Weight (lbs)	0.4
Width	4.9

Edelbrock 1949 Edelbrock AVS2 Series Carburetor Calibration Kit #1949
