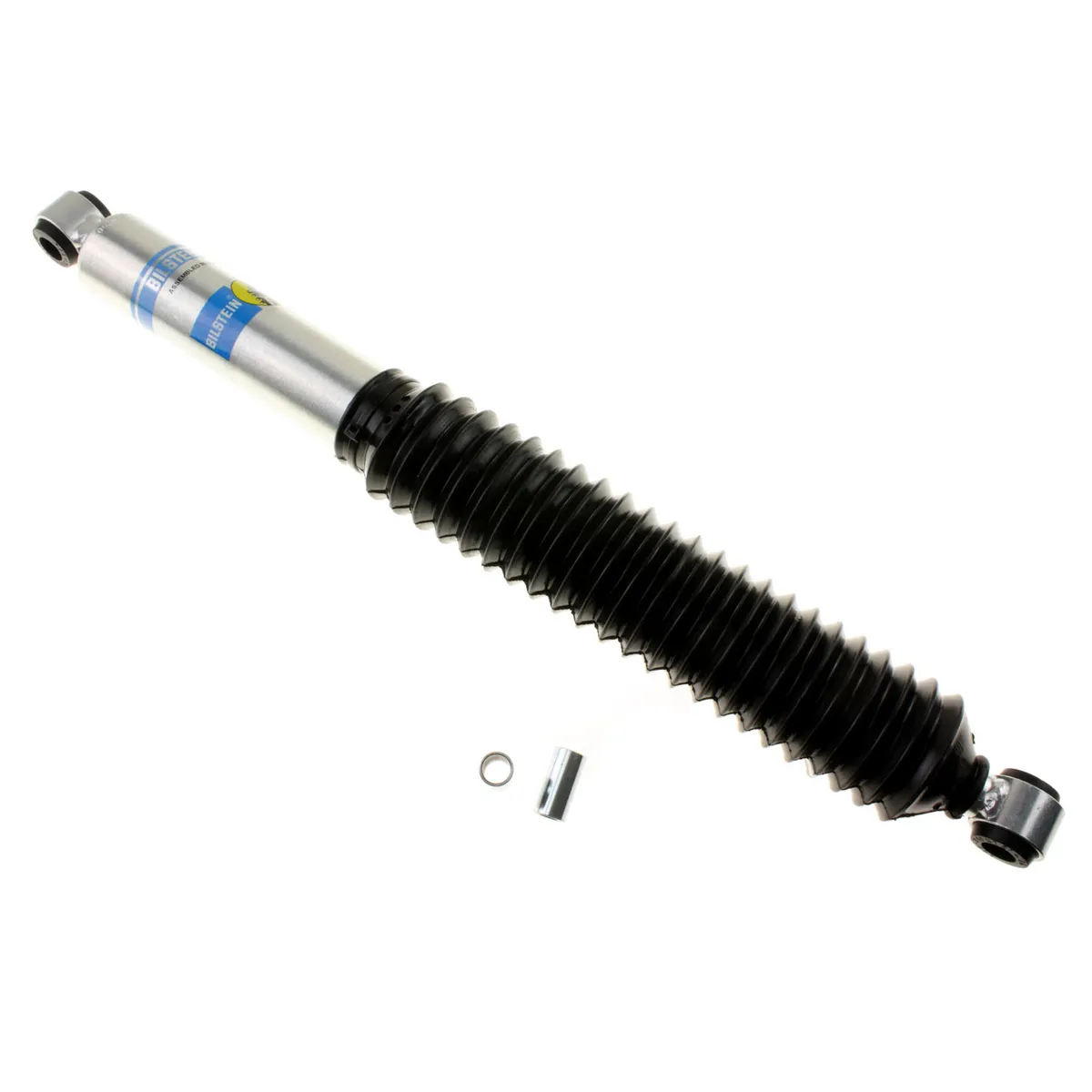

Bilstein 33-230443 B8 5125 - Suspension Shock Absorber
1 / 3
Bilstein 33-230443 B8 5125 - Suspension Shock Absorber
MPN: 33-230443UPC: 00651860729329In Stock — Ready to Ship
$118.00$170.56SAVE 31%
Starting at $10/mowithaffirm
https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/warranty_all_v4.2.pdf Installation GuideShock - B8 Series - Monotube - 14.13 in Compressed / 22.54 in Extended - Steel - Zinc Plated - Each
Shipping: $11.00· Usually ships in 1-3 business days Shock
- B8 Series
- Monotube - 14.13 in Compressed / 22.54 in Extended
- Steel
- Zinc Plated
- Each
Earn 118 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 4.6100 lbs |
| Length | 26.8000 in |
| Width | 2.9500 in |
| Height | 2.9500 in |
| Part Number | 33-230443 |
| UPC | 00651860729329 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | Non-Adjustable |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Black Bellows |
| Collapsed Length (IN) | 14.13 |
| Collapsed Length (MM) | 359.0 |
| Compressed Length | 14.13 IN |
| Compression @0.52m/s | 595 |
| Country of Origin | MX |
| Emissions | Emissions Compliance Exempt |
| Extended Length | 573.2 MM |
| Extended Length (IN) | 22.57 |
| Extended Length (MM) | 573.2 |
| Finish | Zinc Plated |
| Grade Type | Performance |
| Height | 2.9500 |
| Height (in) | 2.95 |
Installation Overview
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
