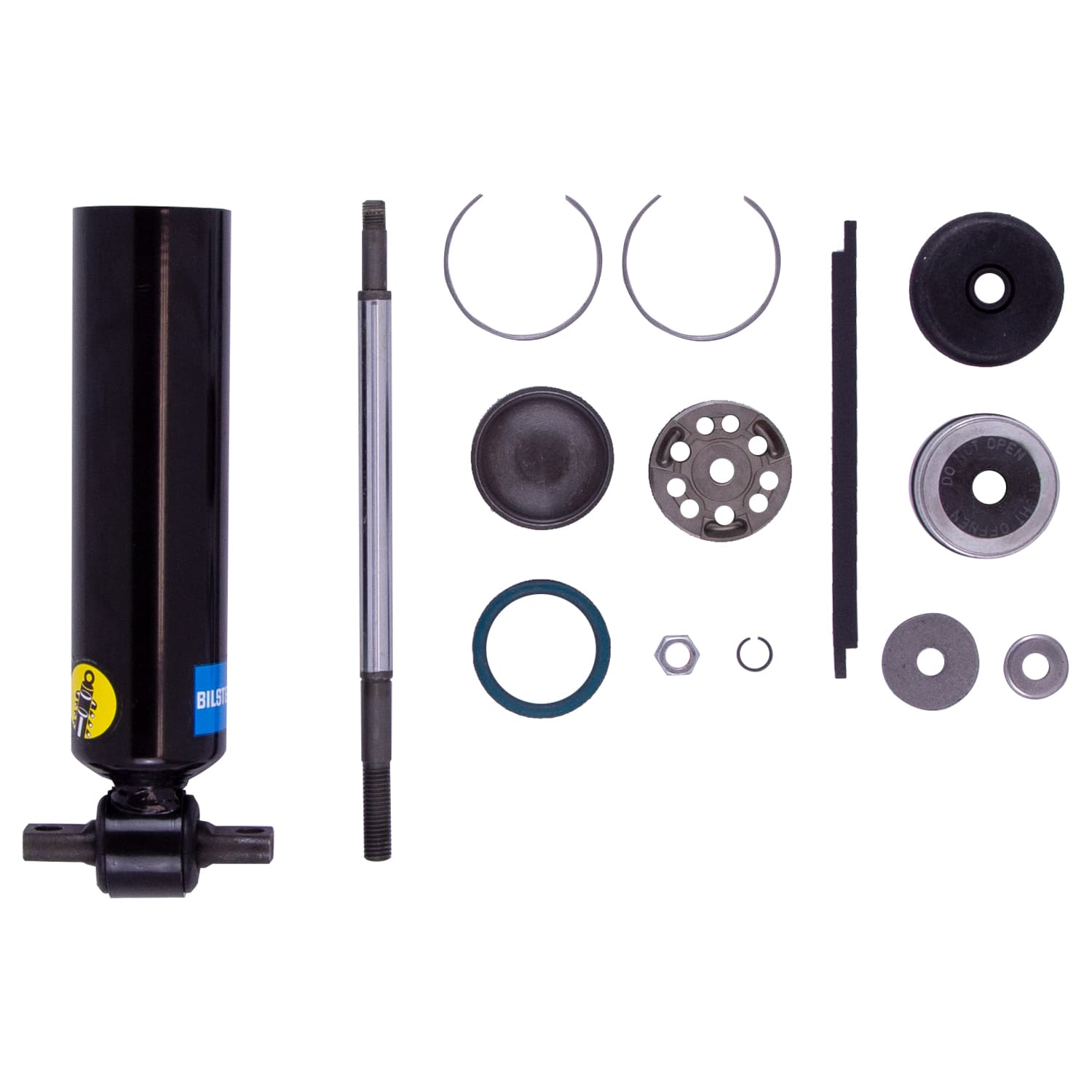

Bilstein 24-294904 SMX Series - Suspension Shock Absorber
1 / 3
Bilstein 24-294904 SMX Series - Suspension Shock Absorber
MPN: 24-294904UPC: 00651860847399In Stock
$135.86$139.26SAVE 2%
Starting at $12/mowithaffirm
Shock - SMX Series - Monotube - 8.27 in Compressed / 12.01 in Extended - 46 mm OD - No Valving - Steel - Black Paint - Each
Shock
- SMX Series
- Monotube - 8.27 in Compressed / 12.01 in Extended - 46 mm OD
- No Valving
- Steel
- Black Paint
- Each
Technical Specifications
| Length | 22.4500 in |
| Width | 2.9500 in |
| Height | 2.9500 in |
| Part Number | 24-294904 |
| UPC | 00651860847399 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | Non-Adjustable |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Design | Stock Mount Smooth Body |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length (IN) | 8.27 |
| Collapsed Length (MM) | 210.0 |
| Compressed Length | 210.0 MM |
| Country of Origin | US |
| Emissions | Emissions Compliance Exempt |
| Extended Length | 305.0 MM |
| Extended Length (IN) | 12.01 |
| Extended Length (MM) | 305.0 |
| Finish | Black Paint |
| Grade Type | Performance |
| Height | 2.9500 |
| Height (in) | 2 |
Installation Overview
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
