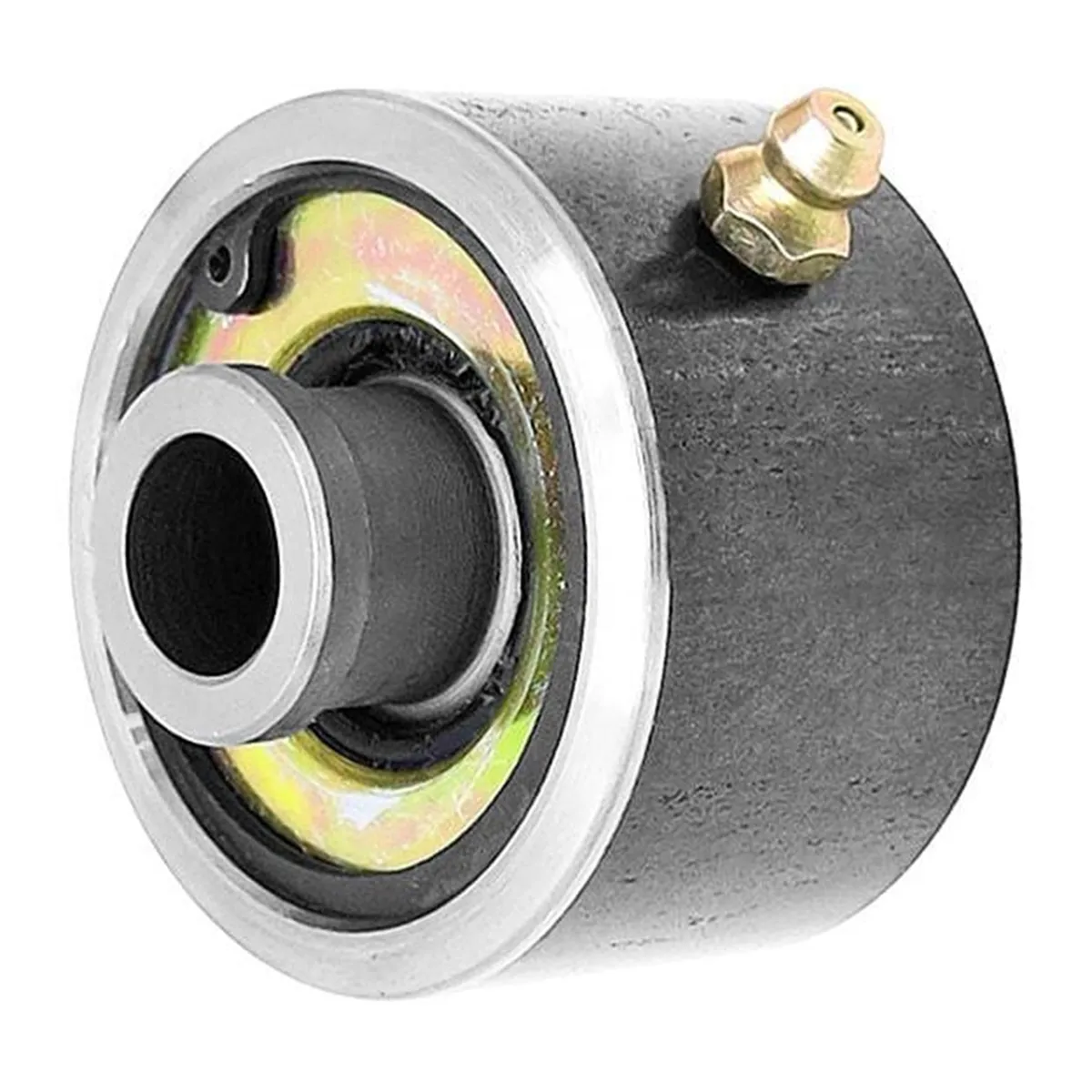

RockJock's Johnny Joint Rod Ends have been a staple in the off road industry since 1996! Available universally for builders or found in our RockJock suspension components, John Currie's proven formula provides a reliable, greasable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use. Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators. Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use. All sizes of joints offer a standard or a narrow width joint body which provide different levels of overall articulation range (30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body's 1 piece bushing will provide a slightly firmer ride. This 2 in. Johnny Joint incorporates our weld-on, narrow width, 4130 chromoly outer barrel, a 1.600 in. overall width x .562 in. thru-bolt hole pivot ball, and a machined safety style side washer on the snap ring side. Greasing is handled externally, via the installed 1/4 in.-28 zerk fitting.

Rod End Fits:
Universal Application Rod End Includes: (1) Weld-On Johnny Joint Assembly Rod End Features: 28 degrees of articulation capability Weldable 4130 chromoly construction 2 in. O.D. x 1.20 in. wide joint outer barrel 1-piece bushing internals (with the exeption of a CE-91126S safety washer installed) 1.600 in. wide x .562 in. thru-hole pivot ball 1/4-28 in. zerk fitting for greasing Ships disassembled, ready for welding Notes: See CE-9120RW for joint vertical stabilzation washers Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G Applicable Johnny Joint Tool for this Rod End: CE-9112T Important - joints require greasing at normal intervals, but they do not hold a lot of grease! Over greasing can cause damage to the joint. To prevent damage, use only a hand pump grease gun, do not expect the joint to take a lot of grease and DO NOT use pneumatic or electric grease guns!
