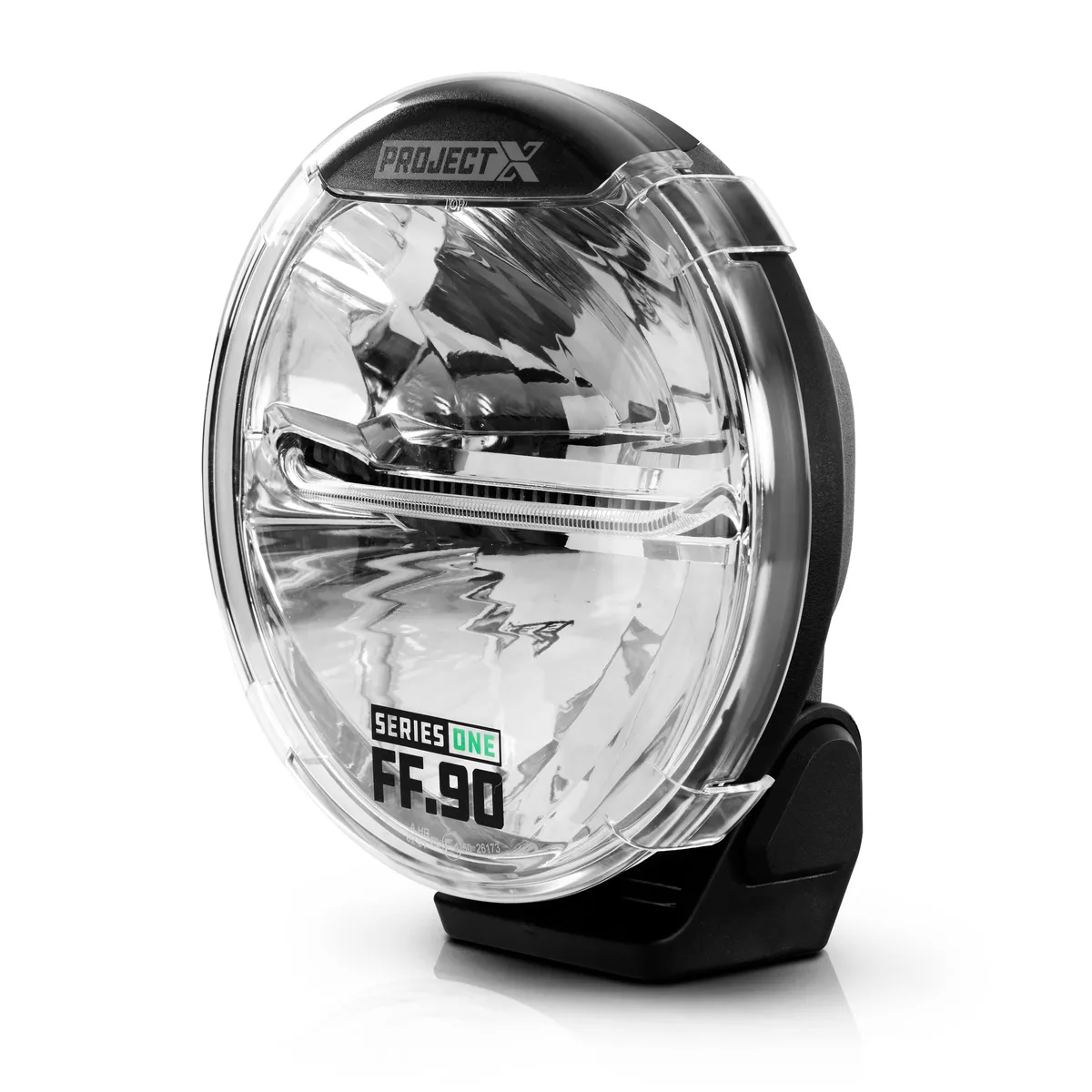

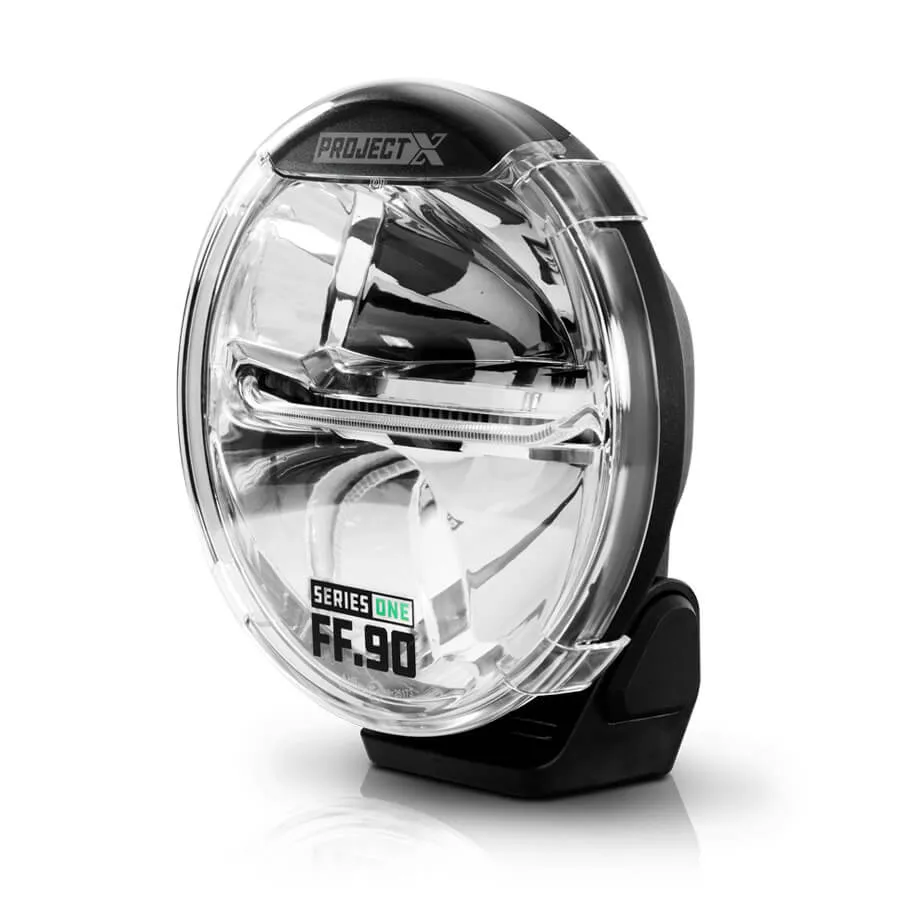

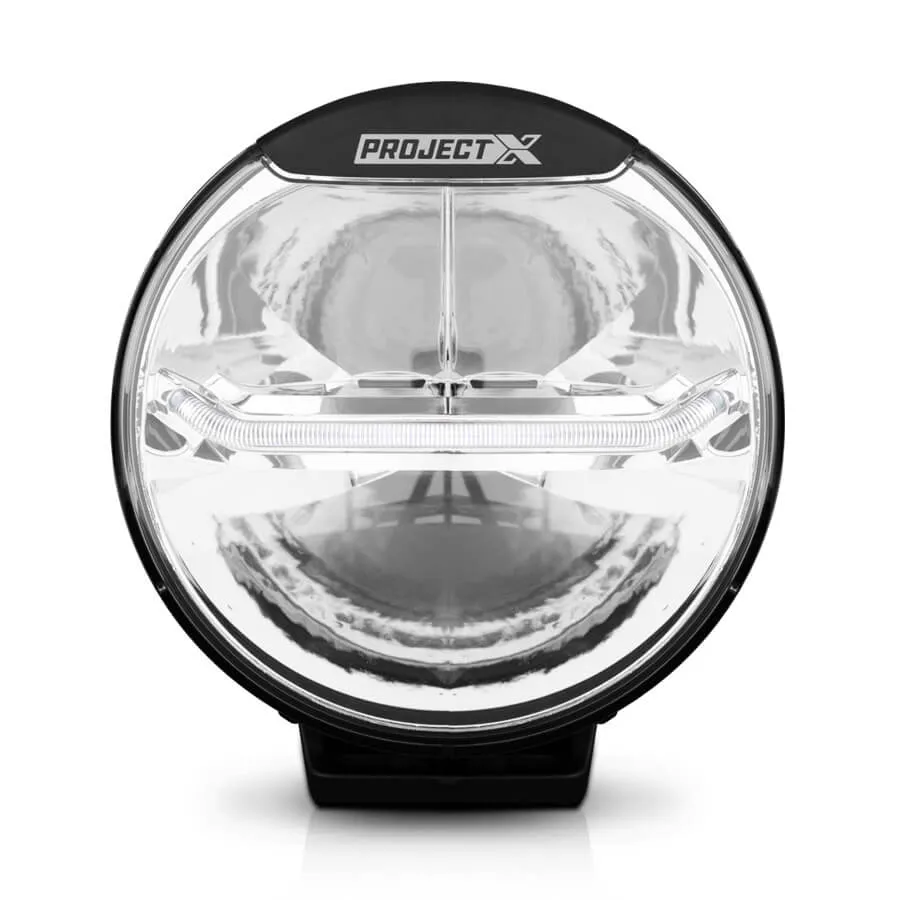

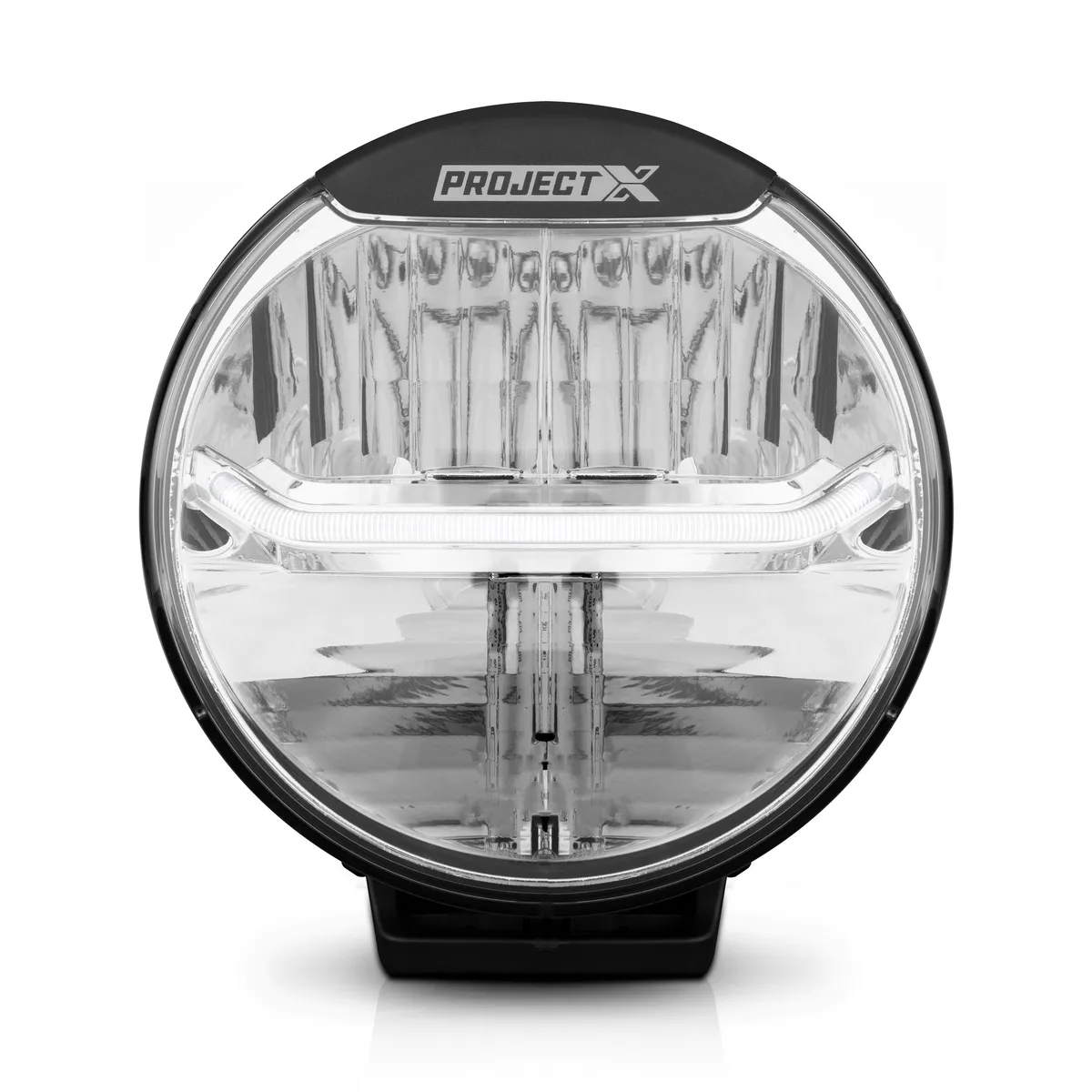

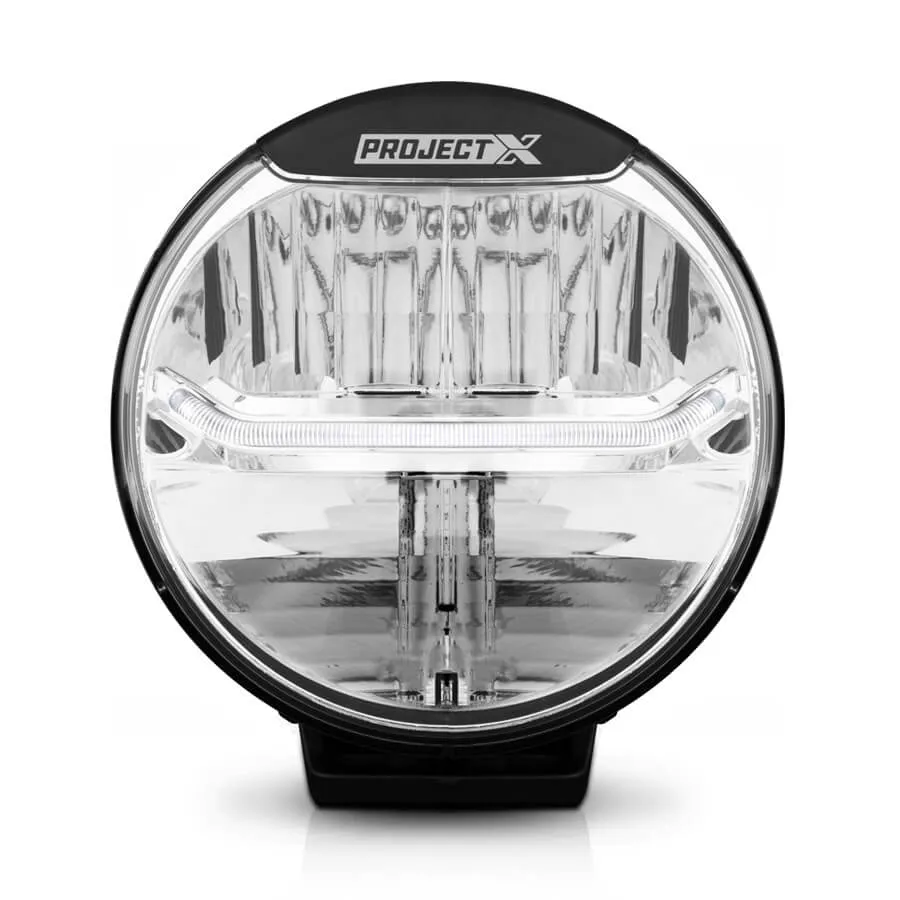

Connect with the Wild with the PROJECT X
- Series One Free Form LED auxiliary lights. The Series One utilizes enhanced free form optics to capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most. Enhanced Free From Optic Drive Technology
- Enhanced free form optics capture and focus more of the light generated from the LEDs to produce a greater penetrating light output down the road, eliminating wasted light and focusing the beam where you need it most. Powered by CREE The very latest in Cree XHP50.2 L.E.D chip sets produce an extremely efficient yet powerful white light output (5000 degree K) and 3,800 raw lumens (1,663 effective) per light. Superior Optics
- The proof is in the data - the Series One's unique design creates a superior optic in a lightweight package that will perform in any condition. LED Front Position Light Pipe
- Signature built-in LED light pipe meets ECE requirements for front position light improving daytime driving visibility and safety. Customizable Appearance
- Customize the look of your Series One FF.70s with your choice of 2 glare shield caps in Black or PROJECT X Green Power Input Voltage: 9-33V LED Power: 45W Current Draw at 12V: 3A Operating Temp: -40 degree F to 149 degree F Heat Management: Active Thermal Management System (ATMS) Protection: Reverse Polarity, Protection EMC: ECE R10 LEDs
- LED Type: 15W XHP50.2, Cree LEDs Light Pattern: Spot Size 9.0 Inch Lumens Color Temp: 5000 degree K Color Rendering Index: 70 Raw Lumens: 5,700 Effective Lumens: 2,500 Beam Length (1 lamp): 1 lux at 1574 Feet Beam Length (2 lamps): 1 lux at 2230 Feet Beam Width (1 lamp): 1 lux at 78 Feet Beam Width (2 lamps): 1 lux at 206 Feet Construction Housing: Fiber Reinforced Polymer Lens: Hard coated Polycarbonate Hardware: Stainless Steel IP Rating: IP67 Weight: 2.42 lbs Details: Beam Length (1 lamp): 1lux at 1574 Feet Beam Length (2 lamps) : 1 lux at 2230 Feet Beam Width (1 lamp): 1 lux at 78 Feet Beam Width (2 lamps) : 1 lux at 206 Feet Black and PROJECT X Green Bulb Quantity: 3 Bulb Technology: LED Bulb Type: 15W XHP50.2, Cree LEDs Color Rendering Index: 70 Connector Gender: Male Connector Quantity: 1 Material: Fiber Reinforced Polymer Effective Lumens: 2500 EMC: ECE R10 Hardware Included: Yes Hardware Material: Stainless Steel Heat Management: Active Thermal Management System Height: 9.8 Inch.

Housing Color:
Black Housing Finish: Matte Housing Material: Fiber Reinforced Polymer Input Voltage Range: 9 - 33V DC IP Rating: IP67 Lamp Current Draw at 12V: 4.9 Lens Color: Clear Lens Material: Hard coated Polycarbonate Mounting Hole Quantity: 2 Operating Temp: Neg 40 Degree F to 149 Degree F Positional Light Current Draw at 12V: 0.13 Amps Protection: Reverse Polarity Protection Terminal Gender: Female Terminal Quantity: 1 Terminal Type: Deutsch DT 3-pin Total Current Draw at 12V: 5 Wattage Draw at 12V DC: Driving Light - 62 Watts, Position - 1.8 Watts Wire Quantity: 3 Wiring Harness Included: Y Weight: 4.85 LBS Width: 5.3 IN.
