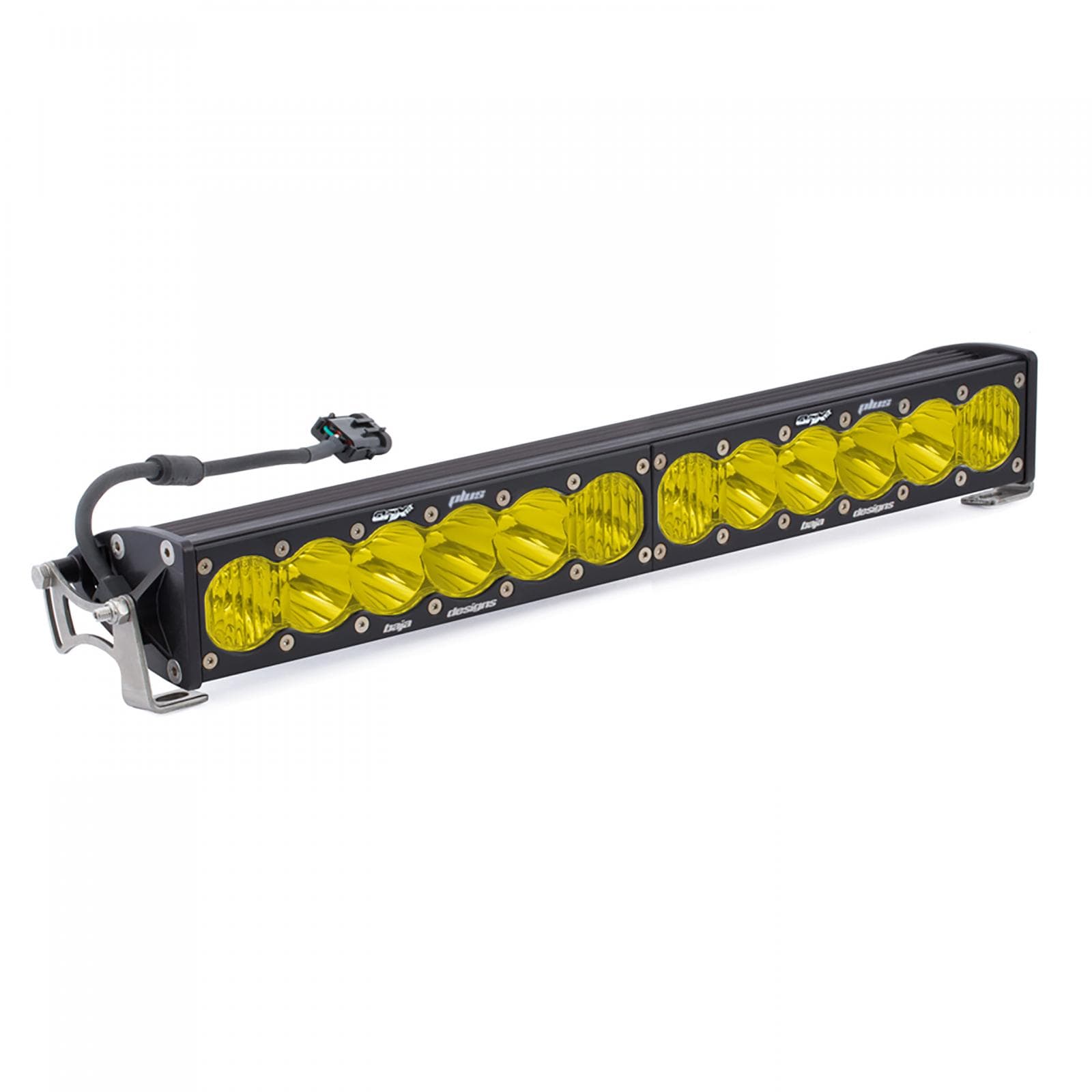

At an impressive 24,920 lumens, the brightest just got up to 69 percent brighter than our previous generation. The OnX6+ LED light bar also integrates Baja Designs trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. This bar is equipped with BMT Battery Management Technology Elimination Of Flickering at Low Voltage Added Protection to Vehicle Wiring and Systems Protection from Dangerous Current Spikes The OnX6+ LED Light Bar is Brighter bolder Better.

Baja Designs Features:
Satisfactions Guarantee 30 Day Money Back Guarantee Limited Lifetime Warranty Complete Purchase Protection uService Replaceable Lenses And Optics ClearView All The Light, Right Where You Need It. MoistureBlock Waterproof, Rain Proof, Submersible CopperDrive Only LED Driven At 100 percent 5000K Daylight Less Driver Fatigue, Natural Color Specifications: Lumens: (High) 24,920 (Low) 18,460 Utilizing 12 Cree LEDs Wattage/Amps: (High) 216W / 16.6A (Low) 160W / 12.0A Dimensions: 20 inch x 4.29 inch x 2.69 inch Weight: 7.85 lbs LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize Bezel: Billet Machined Aluminum Hardware and Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof up to 9ft and Pressure Washable) IK10 Compliant (Mechanical Impact Testing) Includes: OnX6+ 20 inch LED Light Bar Mounting Brackets Hi-Low Dongle Please note that this light does Not include a harness and the applicable harness to this light is
640115.

Patterns:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42 degree) and the spot (6 degree) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3) Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42 degree flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 and 2) (Also available in Baja Amber) High Speed Spot: A longer and narrower 6 degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 and 5) Racer Edition Spot: A 4 degree beam focus for illumination WAY down the trail or road. The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)
