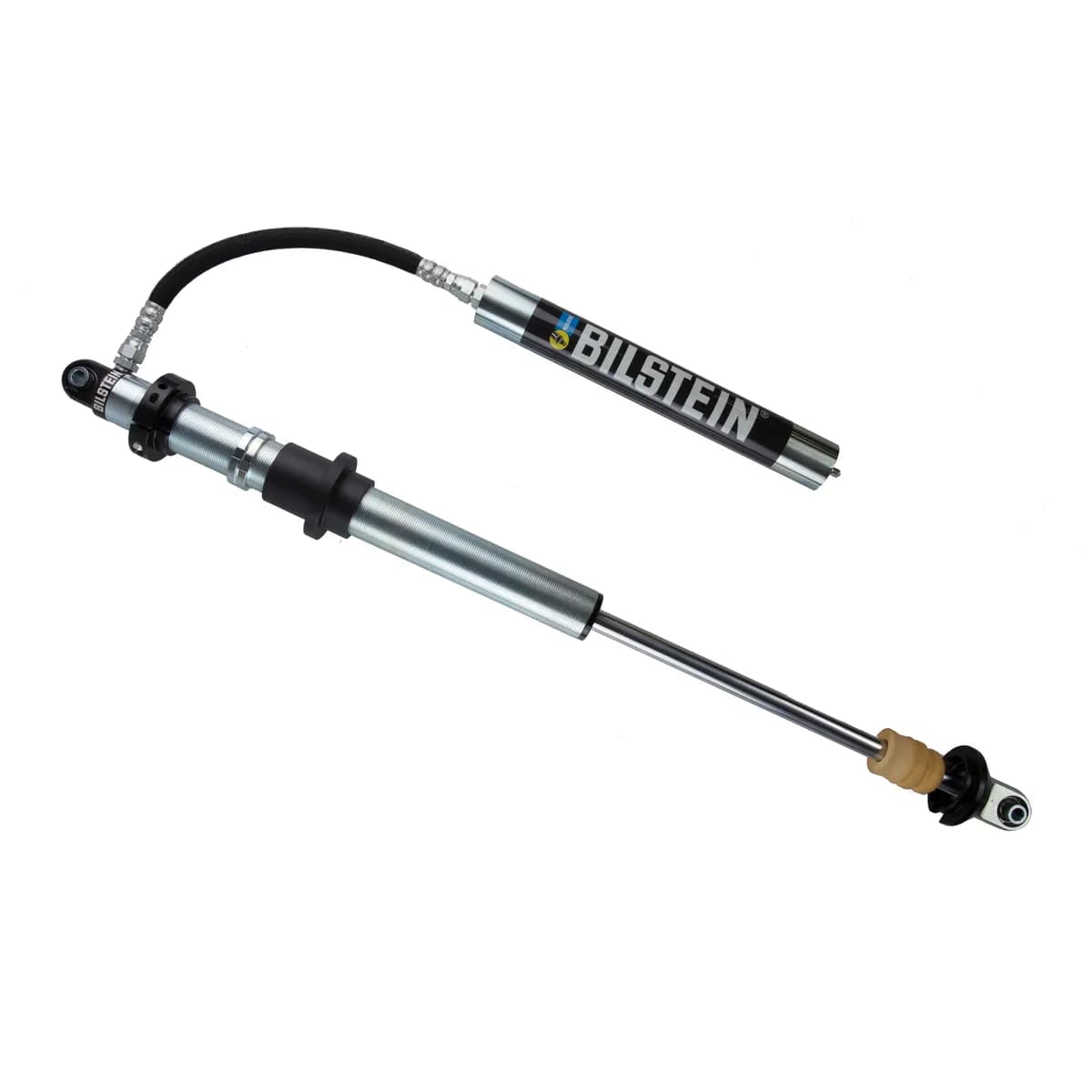

Bilstein 33-225586 B8 8125 - Suspension Shock Absorber
Bilstein 33-225586 B8 8125 - Suspension Shock Absorber
MPN: 33-225586UPC: 00651860756196In Stock
Almost gone! Only 3 remaining $524.00$537.10SAVE 2%
Starting at $44/mowithaffirm
No Applications 8125 Series Shock Absorber
No Applications 8125 Series Shock Absorber
Technical Specifications
| Length | 45.2000 in |
| Width | 7.5000 in |
| Height | 4.5000 in |
| Part Number | 33-225586 |
| UPC | 00651860756196 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Design | Threaded Body Screw Top (Coilover) |
| Collapsed Length (IN) | 23.50 |
| Collapsed Length (MM) | 596.9 |
| Compressed Length | 23.50 IN |
| Compression @0.52m/s | 1000 |
| Country of Origin | US |
| Emissions | Emissions Compliance Exempt |
| Extended Length | 1003.3 MM |
| Extended Length (IN) | 39.50 |
| Extended Length (MM) | 1003.3 |
| Finish | Zinc Plated |
| Grade Type | Performance |
| Height | 4.5000 |
| Height (in) | 4.5 |
| Installation Instructions | https://sdda.semadata.org/Standard/Thyssen Krupp Automotive Group/B8_8125_Tech_Manual.pdf |
| Internal Design | Monotube |
Installation Overview
Difficulty
🔧🔧🔧🔧⚪
Advanced
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
