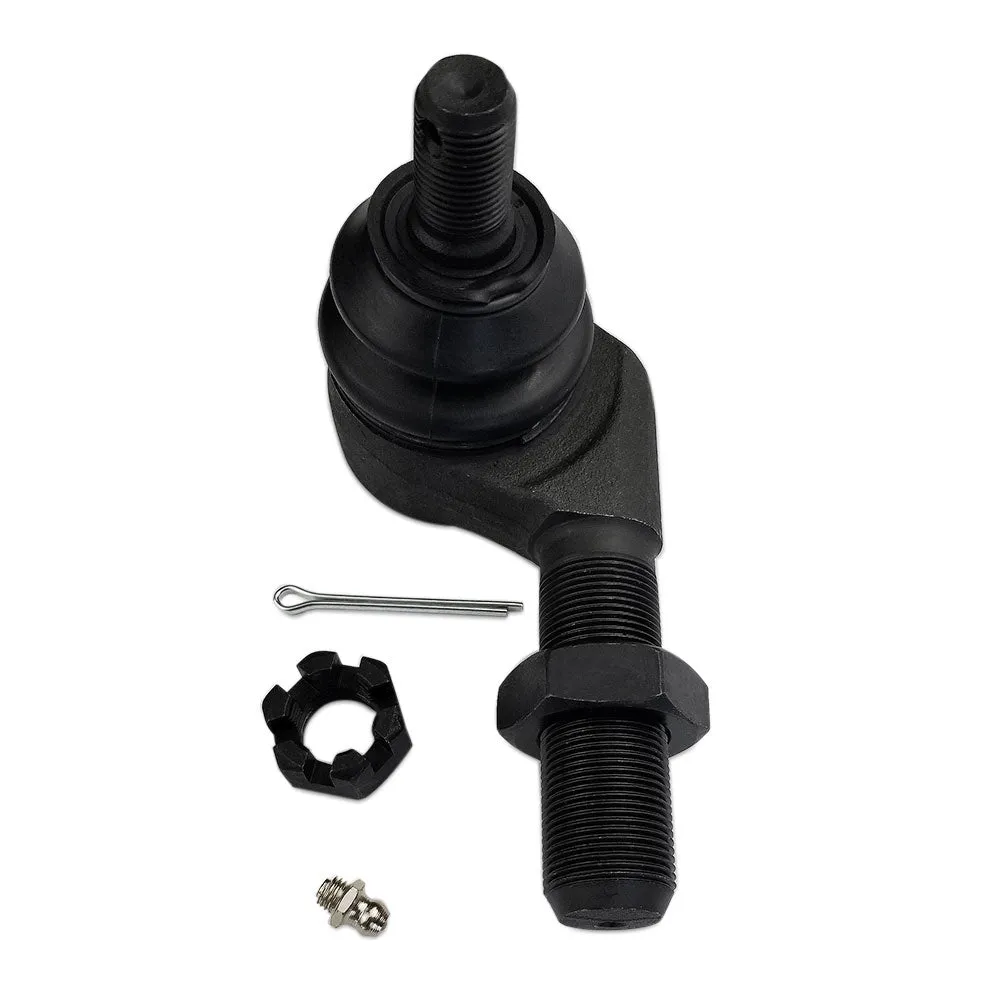

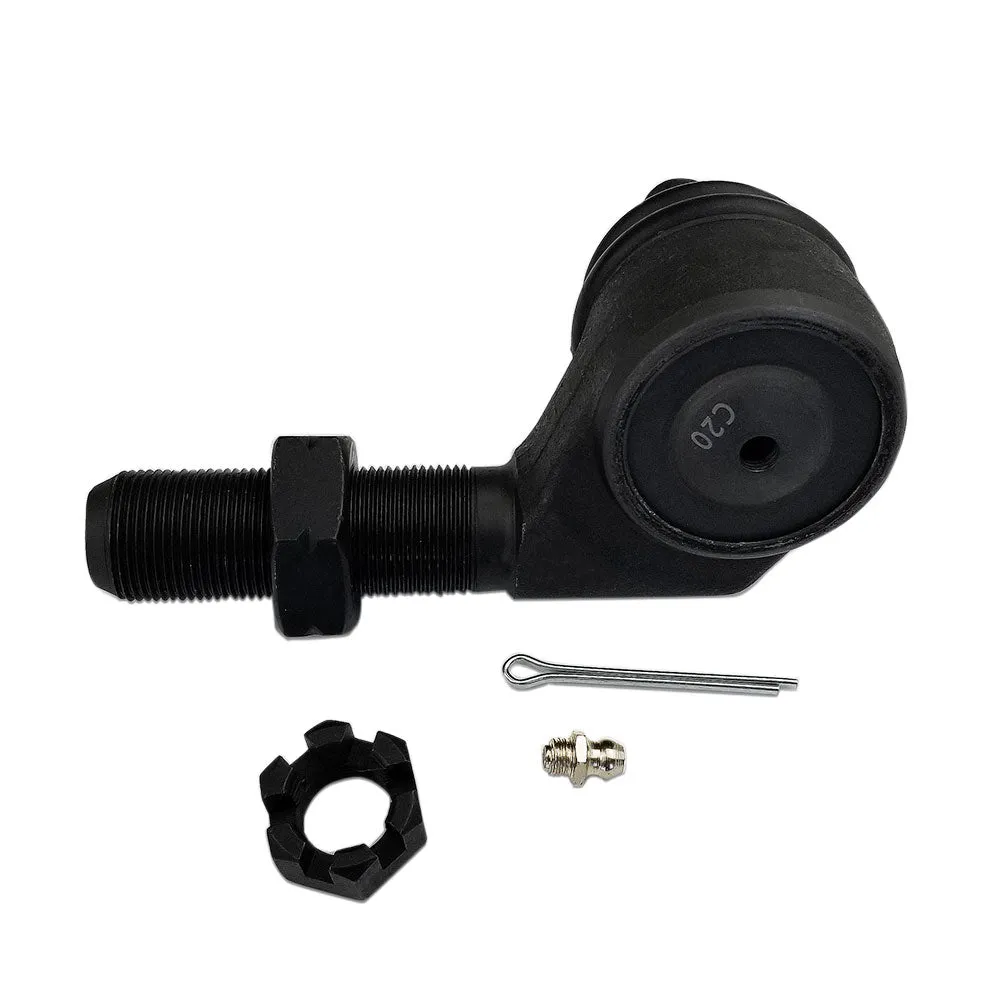

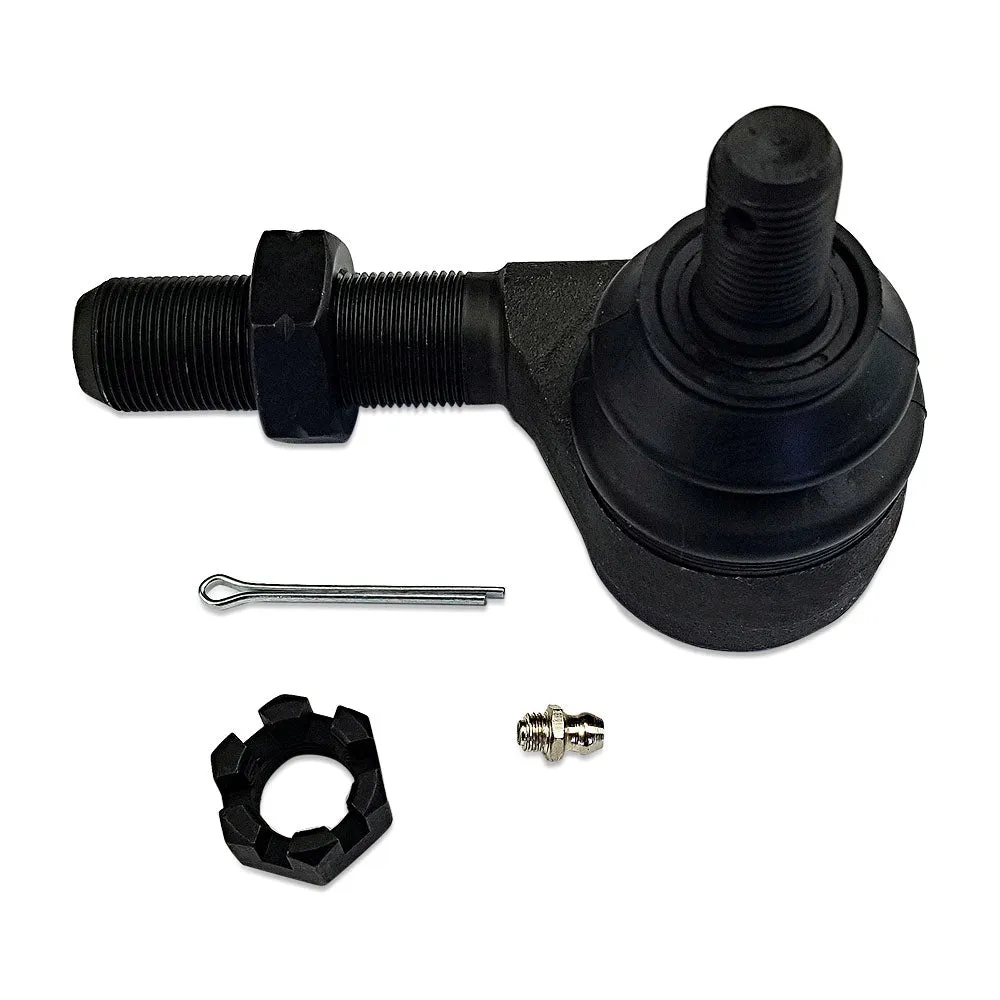

This is a complete "1 Ton" upgraded tie rod kit for your 2007-2018 Jeep Wrangler JK. It includes the tie rod (Polished Aluminum) which is also the adjusting sleeve, and left & right forged steel tie rod ends, plus 2 Ninja Lock Washers. It does not include the steering stabilizer bracket which you will need to choose in the options based on the steering stabilizer you use ,shown after adding the KIT to your cart.

Steering Stabilizer:
XP300
- Track bar relocation bolt will not work on our 1 Ton Kits due to clearance issues.

FITMENT:
Wheels and Spacers: If you run AEV or stock Rubicon wheels, you'll need a 1.5" wheel spacer. This kits works with a 17" wheel with a 4.75" backspacing or less. We recommend the steering stabilizer be fitted in the stock location, or a relocation kit may be required.

Differentials & Mods:
This steering system fits stock Dana 30/44 axles. If you have done any major modifications give us a ring at 480- 470-5500 or email us at sales@apexchassis.com to discuss. This will fit most modifications, but we want to make sure before shipping. You may also want to discuss with your local Jeep shop to make sure all your modifications are compatible. If your jeep has been upgraded to a Dana 60 axle, we have modifications that can work with that as well, just contact us to order.

What It Fits:
Jeep Wrangler JK (2007-2018).
