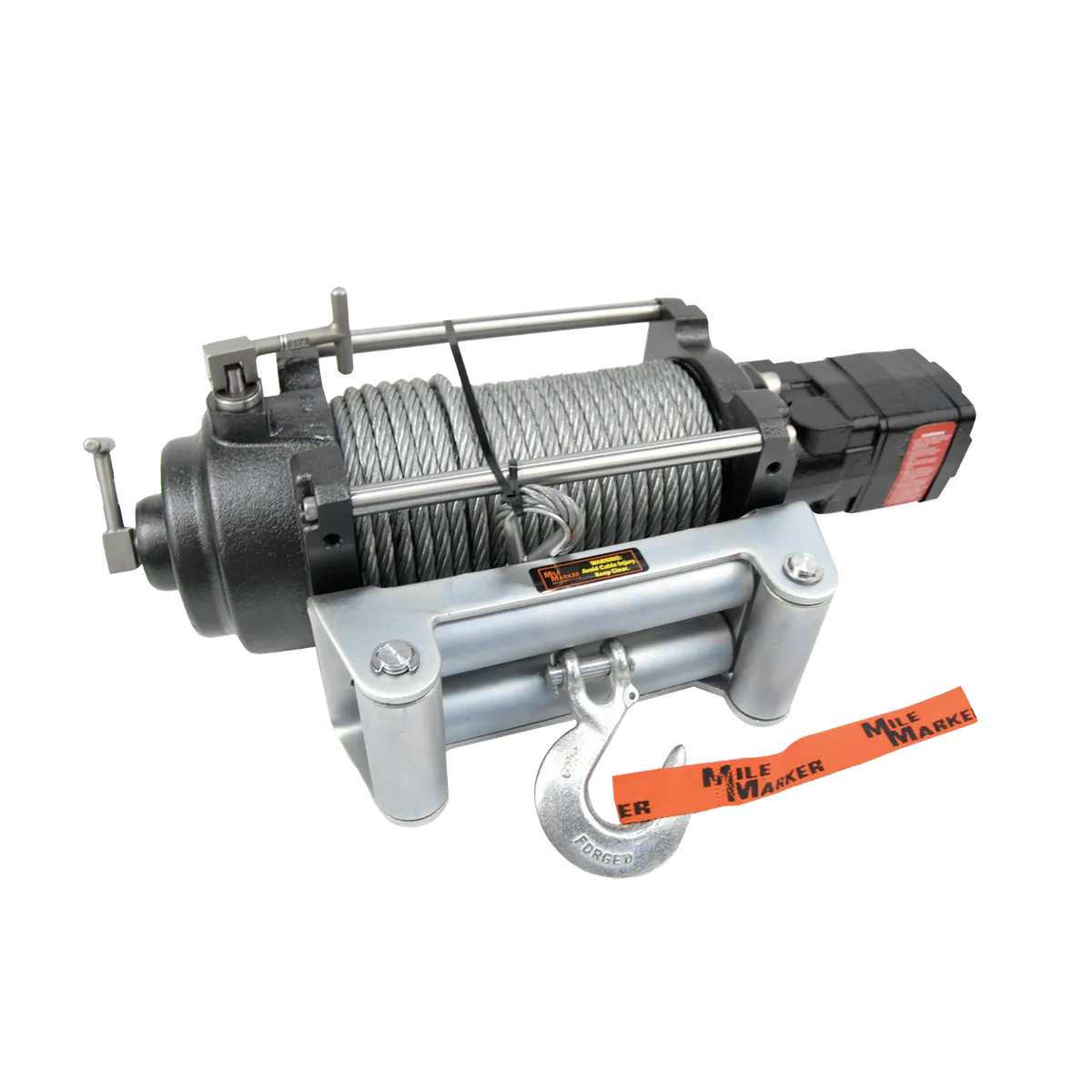

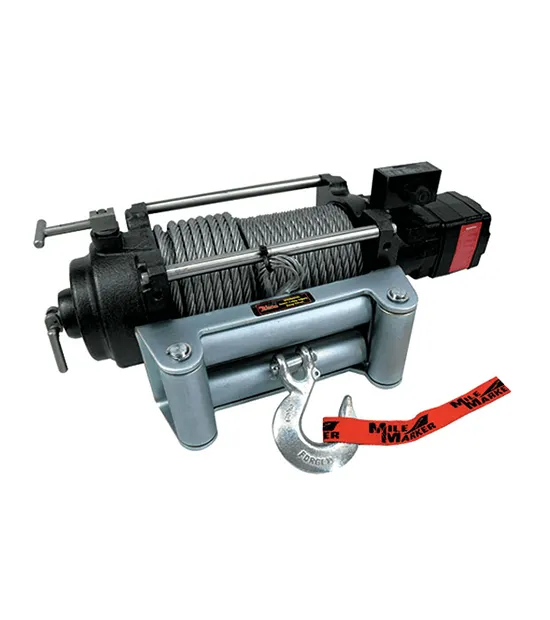

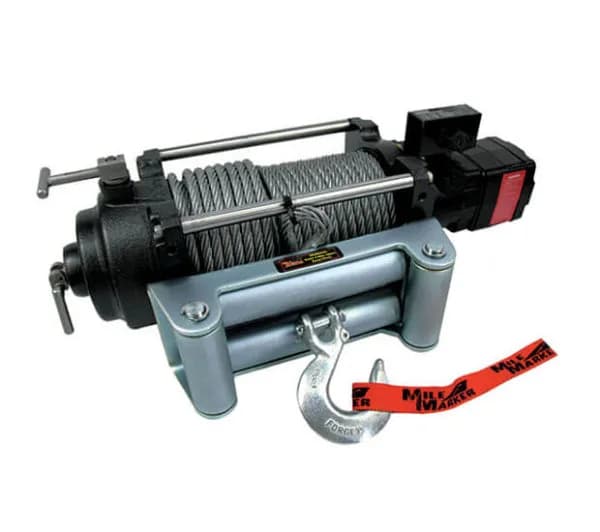

The Mile Marker H12000 Series hydraulic winch is independent from its solenoid control valve to give more freedom in application and can be mounted to the front or rear of the vehicle as a permanent or detachable recovery system. Utilizing the vehicle's power steering system as its power source allows the H12000 to run continuously without draining the battery. Completely element proof construction, corrosion and water resistant, the H12000 features two speed spooling, a mechanical lock system, a ductile iron body, stainless steel tie bars and fasteners, reversible mounting on 3 sides, 100 Feet of steel cable, 12,000 pounds of pulling capacity and requires a vehicle specific 34 Series valve adapter kit for installation and operation.

Features:
2 Speed Freespooling Mechanical Lock Can Use Underwater Corrosion Resistant Stainless Steel Tie Bars and Fasteners 100 Feet Galvanized Aircraft Cable Specifications: Gear Train Planetary Gear Ratio 6:1 Motor 19.5 cubic inch Control Pendant Not Included, Requires 34 Series Kit Cable 3/8 inch X 100 Feet (nominal 14,400 lbs) (9.53 mm X 30.5 m) Drum Size 2.5 inch X 9 inch (63.5 mm X 228.6 mm) Net weight 98 lbs (45 kgs) Bolt Pattern 4 Bolt Pattern, 4.5 inch X 10 inch, (114.3 mm X 254 mm) Power Steering Min. Requirements 3.5 GPM at 1500 psi (13.25 L/m at 103.4 bars)
