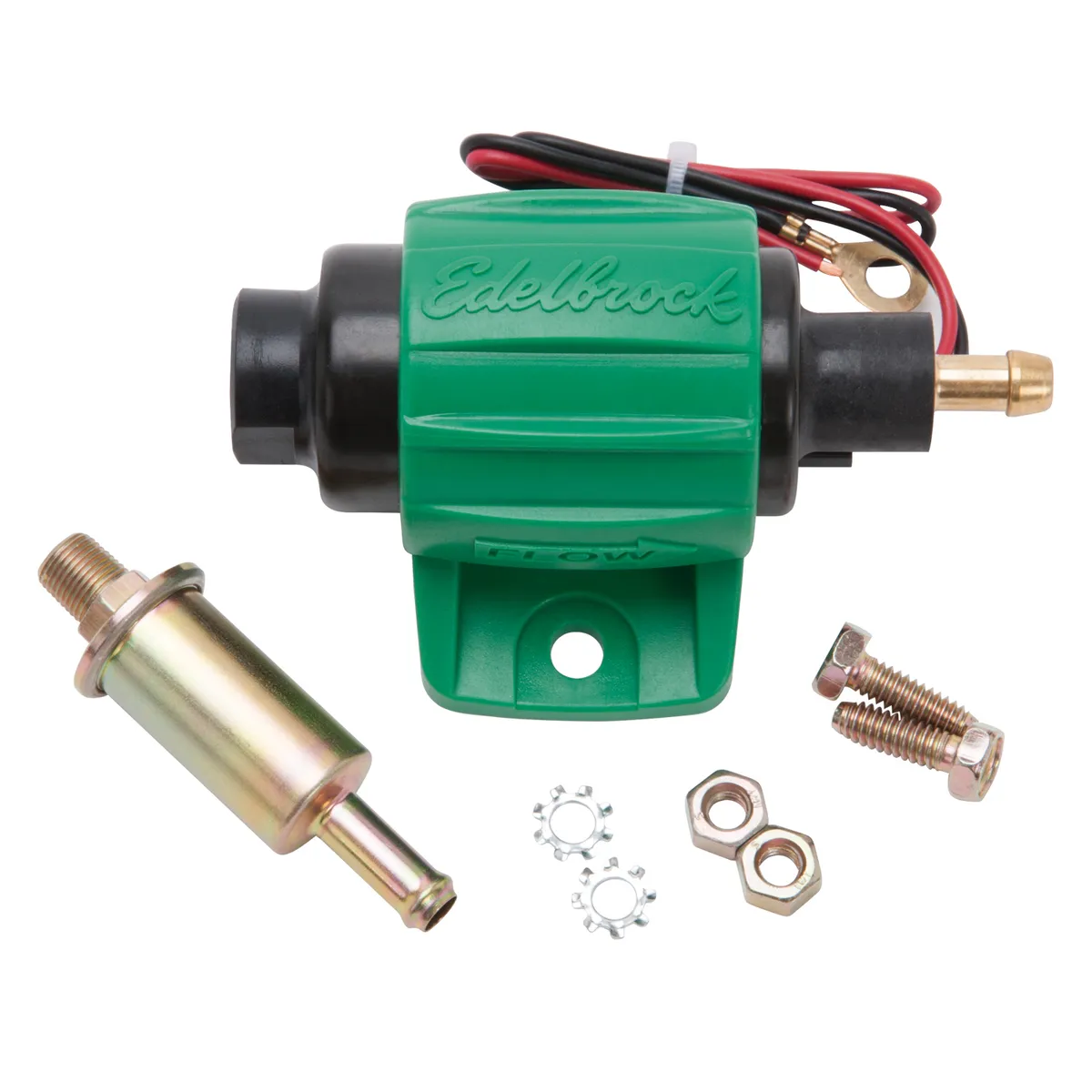

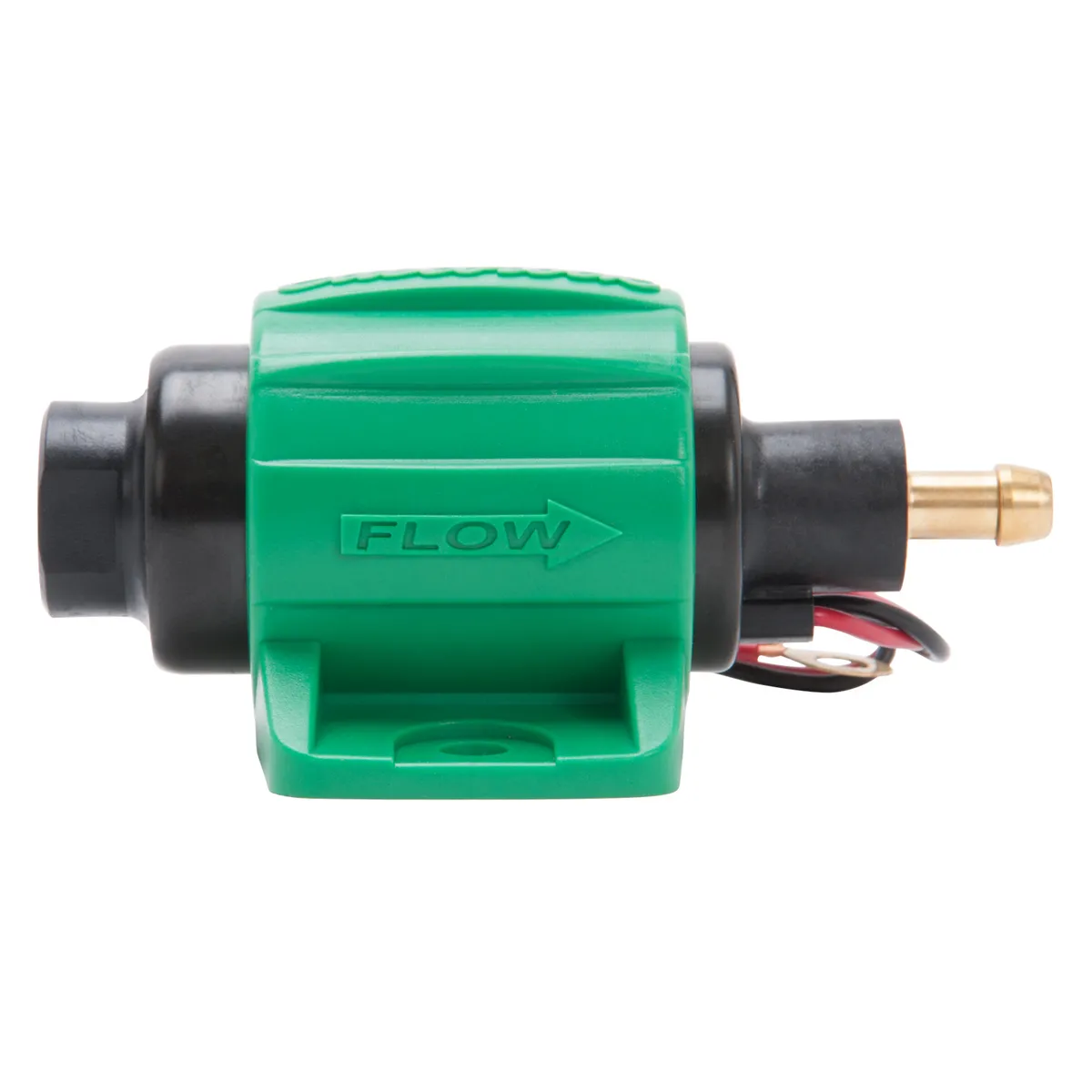

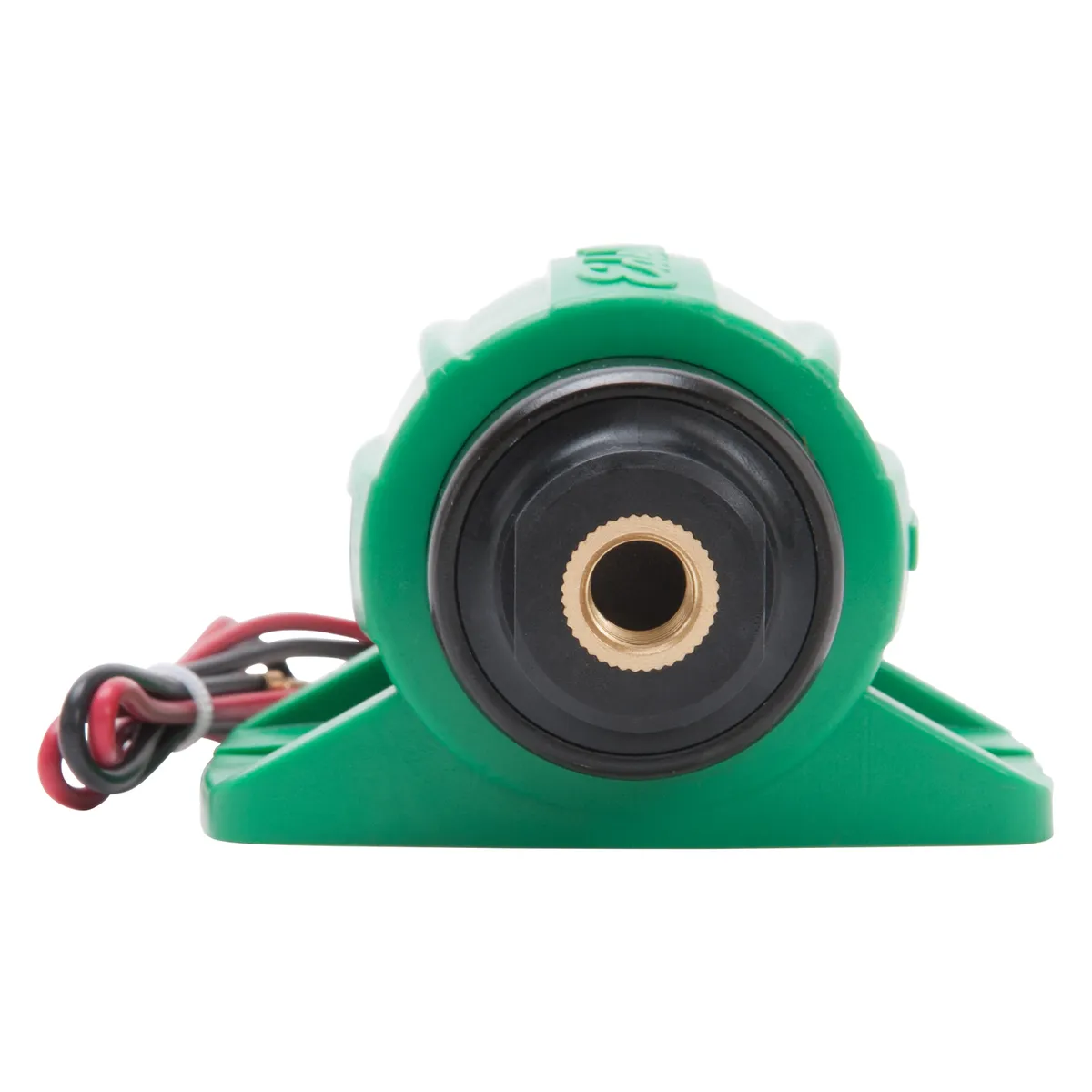

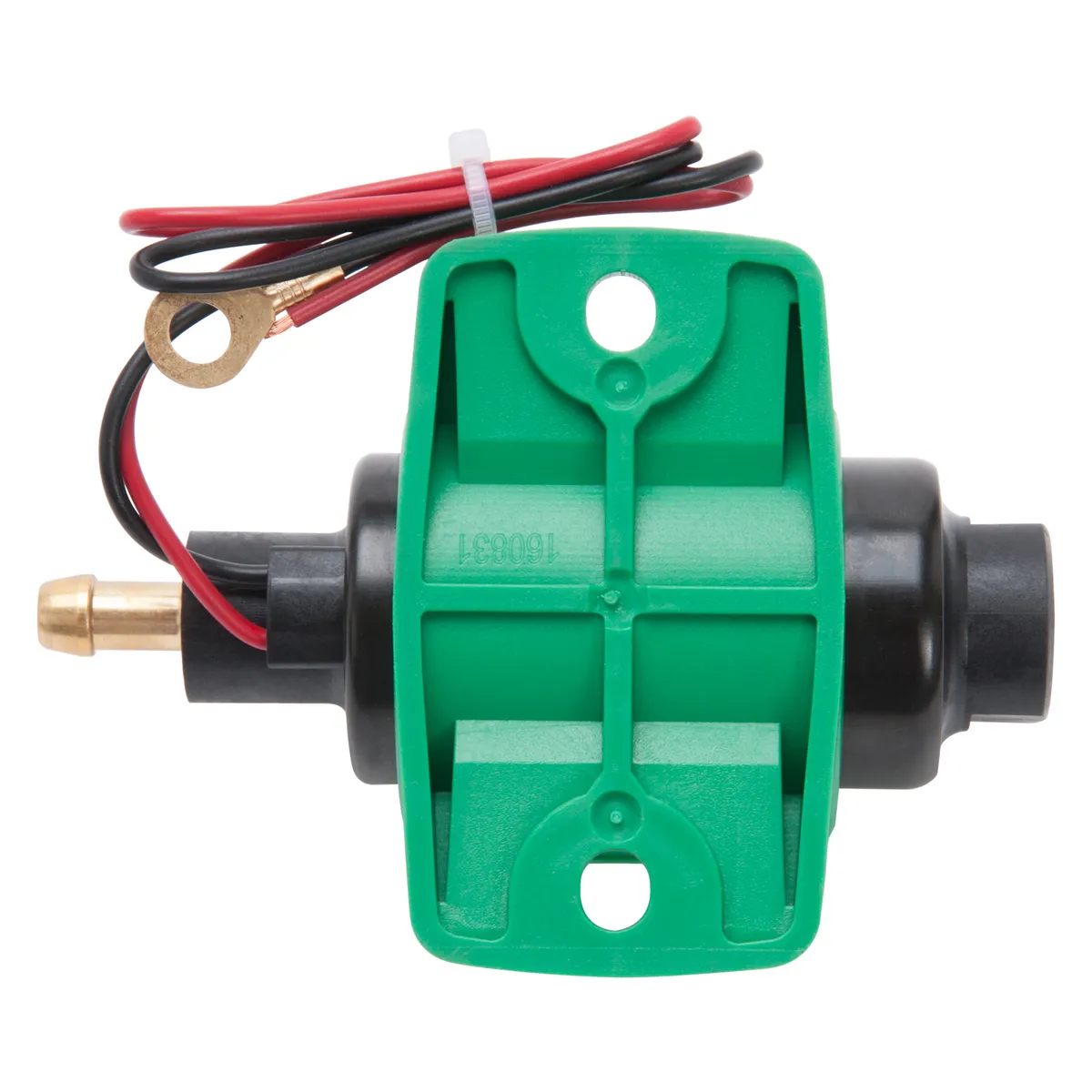

Edelbrock 17302 Universal Micro Electric Fuel Pump - 38 GPH / 144 LPH (Diesel)

1 / 5
Edelbrock 17302 Universal Micro Electric Fuel Pump - 38 GPH / 144 LPH (Diesel)
MPN: 17302UPC: 00085347173020In Stock — Ready to Ship
$84.95$88.35SAVE 4%
Starting at $8/mowithaffirm
Fuel Pump - Micro Electric Diesel - Electric - In-Line - 38 gph Free Flow - 1/8 in NPT Female - 5/16 in Hose Barb Outlet - Filter - Diesel - Each
Shipping: $11.00· Usually ships in 1-3 business days Fuel Pump
- Micro Electric Diesel
- Electric
- In-Line - 38 gph Free Flow - 1/8 in NPT Female - 5/16 in Hose Barb Outlet
- Filter
- Diesel
- Each
Earn 84 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 1.11 lbs |
| Length | 7.5 in |
| Width | 7.25 in |
| Height | 2.7 in |
| Part Number | 17302 |
| UPC | 00085347173020 |
| Case Quantity | 1 |
| Compatible Fuel Type | Diesel |
| Country of Origin | CN |
| Emissions | EPA Eligible |
| Fuel Pump Inlet Type | Hose Barb |
| Fuel Sending Unit Included | No |
| Fuel Type | Diesel |
| Gasket Or Seal Included | No |
| Height | 2.7 |
| Height (in) | 3 |
| In Tank or External | External |
| Inlet Type | Hose Barb |
| Installation Instructions | 17302.pdf |
| Internal Or External | External |
| Item Quantity/Size | 1 EA |
| Length | 7.5 |
| Length (in) | 7 |
| Maximum Flow Rating | 144 LPH/38 GPH |
| Maximum Pressure | 7 PS |
| Minimum Pressure | 4 PS |
