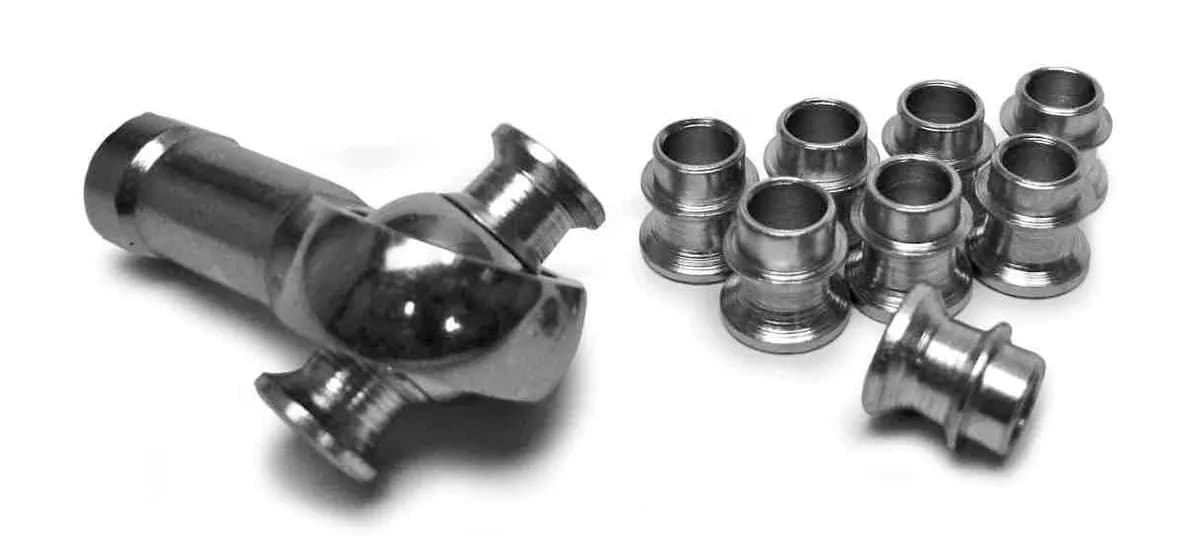

"Universal Rod End Misalignment Inserts For 1 inch Rod Ends Straight Style Yields 3/4 Bore Plated Steel 8 Pack 2.625 Width Quantity Per Package: This package includes eight bushings (enough for four spherical rod ends). This item does not include the spherical rod end.

Product Name:
High Misalignment Insert Bushing Fits Rod End Bore Size of: 1"" Bore Size of Insert: 3/4"" Material: Steel Finish: Plated Zinc Clear (Silver) Length of Bushing After Installation: Each bushing adds 0.620"" of width to the rod end, or 1.240"" overall (because two bushings are required per rod end). This will yield and overall width of 2.625"" when used with the Steinjager SJ-MXM-20-16 or the SJ-MXM-16 Diameter of Flare: 1.500"" Common Other Names for this Product: heim joint bushings, tapered rod end spacers, rod end inserts.

Application:
High Misalignment Bushings are used to increase the misalignment angle of a spherical rod end bearing. Two High Misalignment Bushings are required for each spherical rod end bearing. The high misalignment inserts are a simple slip fit. These bushings provide for more clearance so the bolt head does not minimize the natural cone angle of the spherical rod end bearing.

Typical Mating Part:
These bushings are commonly used in conjunction with our MXM-9 chrome moly spherical rod end bearing, and our STM-9 stainless steel teflon race spherical rod end bearing. They can also be used with some spherical plain bearings, and most 1"" bore i.d. spherical rod ends - male or female.

Metric Alternative:
The metric equivalent to this series is our HMBZC-M series. When used with the Steinjager SJ-MXM-20-16 or the SJ-MXM-16"
