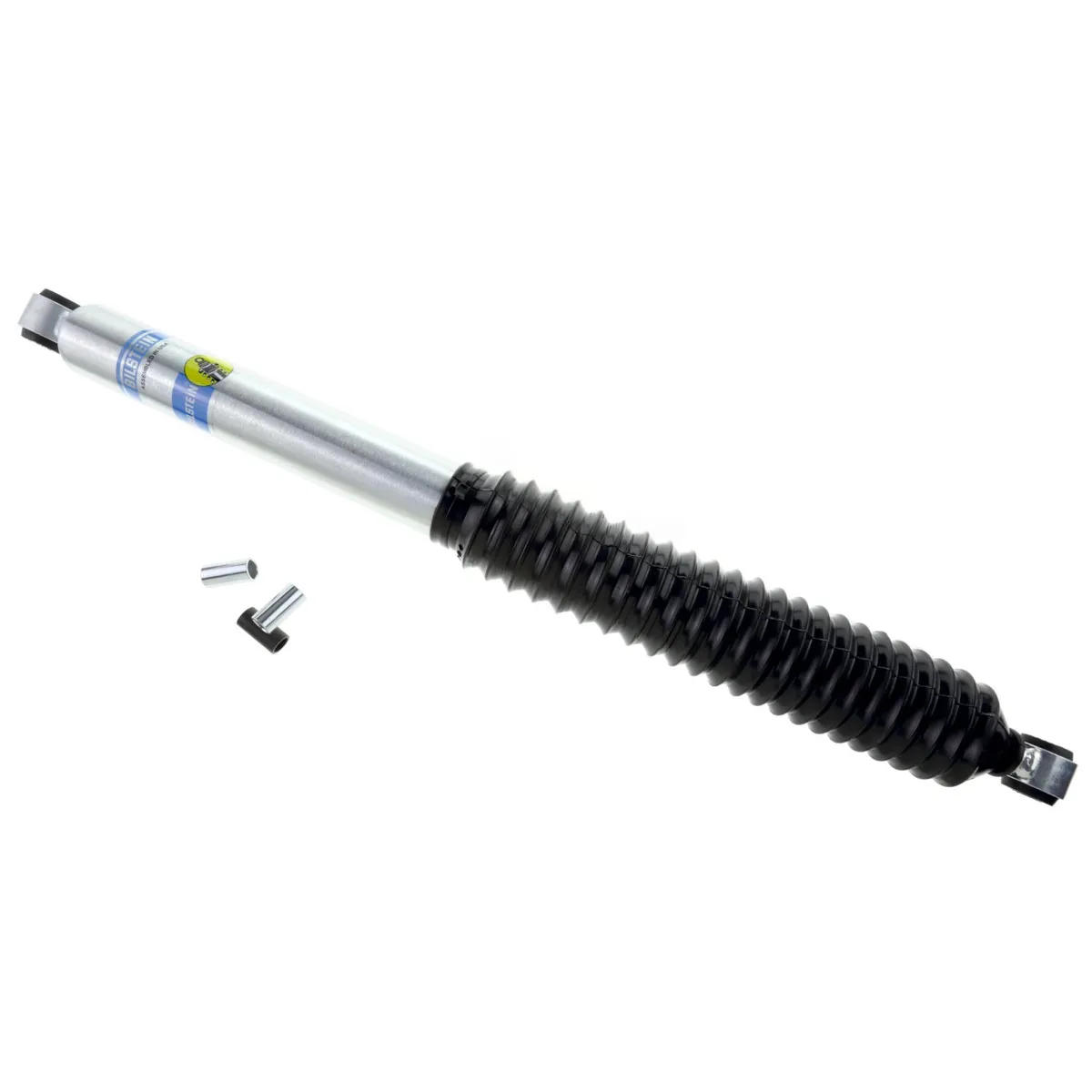

Bilstein 5100 Rear Shock
Bilstein 5100 Rear Shock Part Number: 33-104652 Product Type: Suspension Shock Absorber Series: B8 5125 Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders. Collapsed Length (in) : 17.01 Extended Length (in) : 28.00 Collapsed Length (mm) : 432.0 Extended Length (mm) : 711.2 Compression @0.52m/s : 700 Rebound @0.52m/s : 2550 Mount Type : Eye-to-Eye Finish : Zinc Plated Reservoir : No Body Design : Smooth Body (Non-Coilover) Body Diameter (id) : 46mm Replacement Mounting Kit : B4-KT1-Z254A00 Spring Seat Included : No Adjustable Damping : Non-Adjustable Application : Custom - Used on Clayton Rear 6.5" XJ, 6.0" WJ, 5.0" ZJ, and 7.0" ZJ NOTE : Rear XJ recommended bushing E4-GV3-Z009A03 Rear WJ recommended bushing E4-GV1-Z044A02 & E4-GV1-Z044A28
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
Bilstein 5100 Rear Shock Part Number: 33-104652 Product Type: Suspension Shock Absorber Series: B8 5125 Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Collapsed Length (in) :
17.01 Extended Length (in) : 28.00 Collapsed Length (mm) : 432.0 Extended Length (mm) : 711.2 Compression @0.52m/s : 700 Rebound @0.52m/s : 2550 Mount Type : Eye-to-Eye Finish : Zinc Plated Reservoir : No Body Design : Smooth Body (Non-Coilover) Body Diameter (id) : 46mm Replacement Mounting Kit : B4-KT1-Z254A00 Spring Seat Included : No Adjustable Damping : Non-Adjustable Application : Custom
- Used on Clayton Rear 6.5" XJ, 6.0" WJ, 5.0" ZJ, and 7.0" ZJ NOTE : Rear XJ recommended bushing E4-GV3-Z009A03 Rear WJ recommended bushing E4-GV1-Z044A02 & E4-GV1-Z044A28
