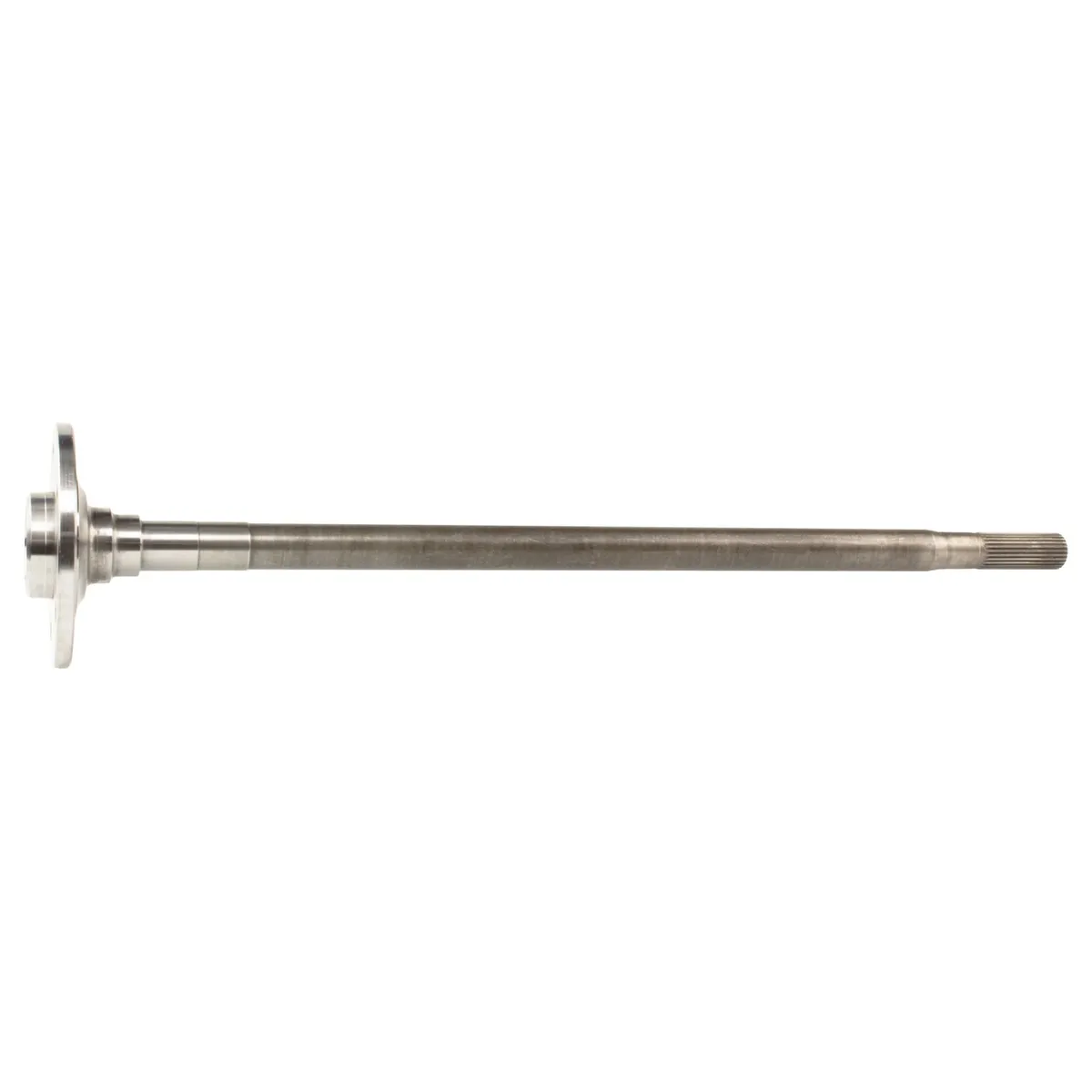

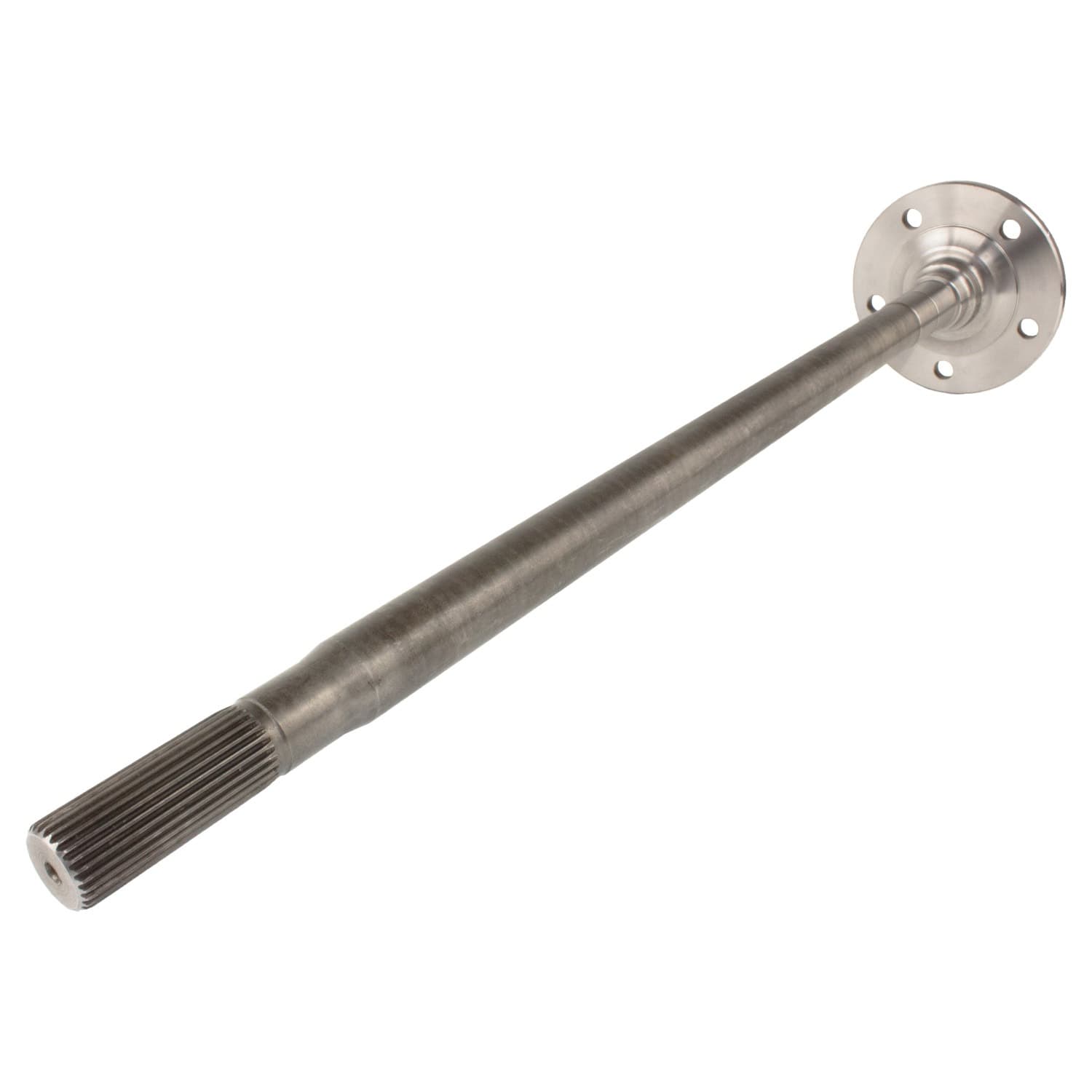

AXLE SHAFT - DANA 35 JEEP 1999-2004
1 / 2
AXLE SHAFT - DANA 35 JEEP 1999-2004
MPN: 76467-3XRUPC: 00698231965481In Stock
$461.00$472.52SAVE 2%
Starting at $39/mowithaffirm
AXLE SHAFT - DANA 35 JEEP 1999-2004
AXLE SHAFT
- DANA 35 JEEP 1999-2004
Technical Specifications
| Length | 36.0000 in |
| Width | 8.0000 in |
| Height | 8.0000 in |
| Part Number | 76467-3XR |
| UPC | 00698231965481 |
| App/Model | Dana 35 Standard |
| Axle Type | Semi-Floating |
| Bearing(s) Included | No |
| Brake Pilot Diameter | 4.997 IN |
| Country of Origin | IN |
| Cover Bolt Quantity | 10 |
| Differential Case Design Type | Dana 35 |
| Emissions | CARB Eligible |
| Height | 8.0000 |
| Height (in) | 8 |

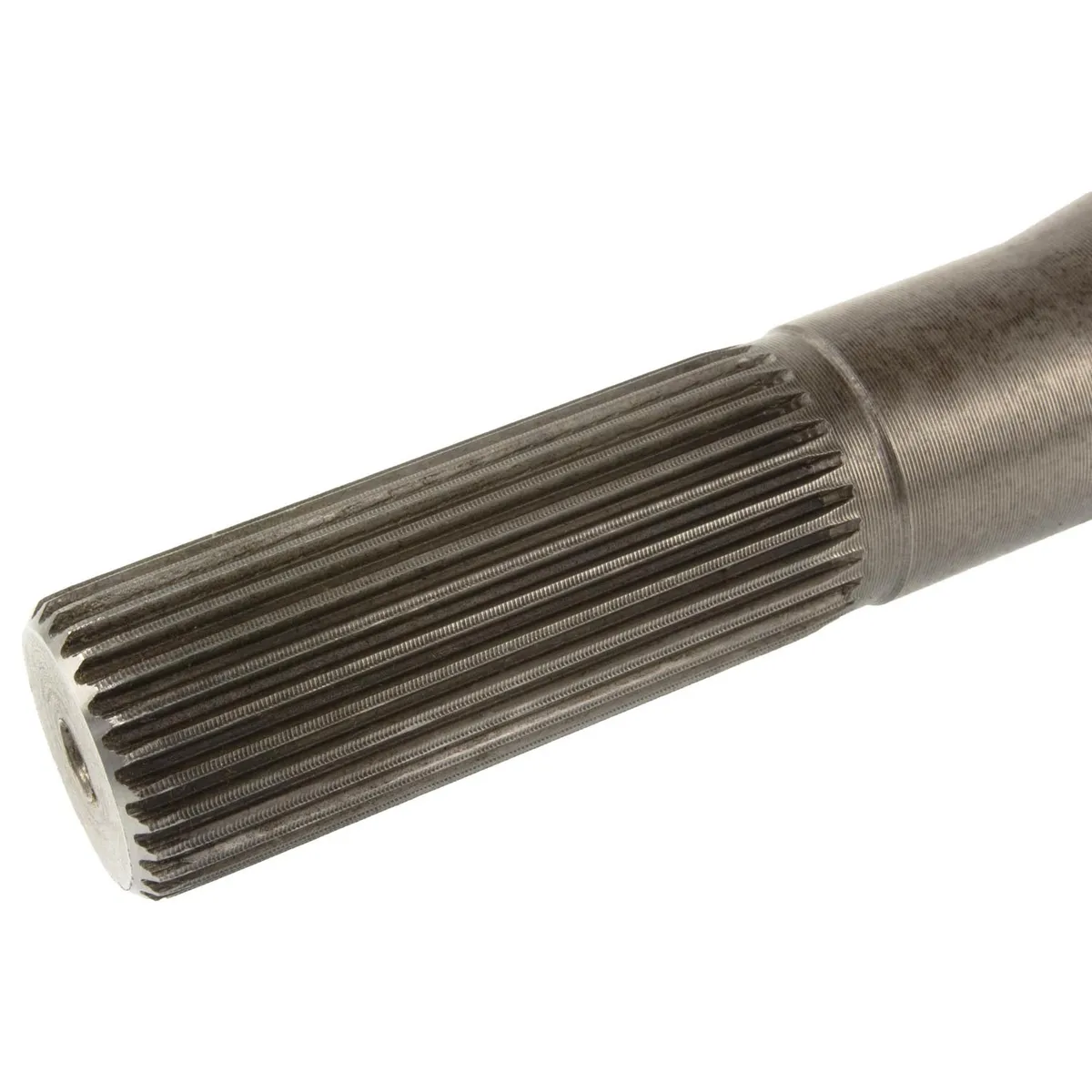

| Inboard Spline Quantity | 27 |
| Item Quantity/Size | 1 EA |
| Length | 36.0000 |
| Length (in) | 36 |
| Position | Rear |
| Prop 65 Y/N | N |
| Qty Per Application | Normal Quantity Used in a Vehicle:1 Each |
| Seal Included | No |
| Shaft Length | 30.25 IN |
| Shaft Material | 1541 Manganese |
Installation Overview
Difficulty
🔧🔧🔧🔧🔧
Expert
Common Tools: Specialized gear tools, Dial indicator, Torque wrench, Press
