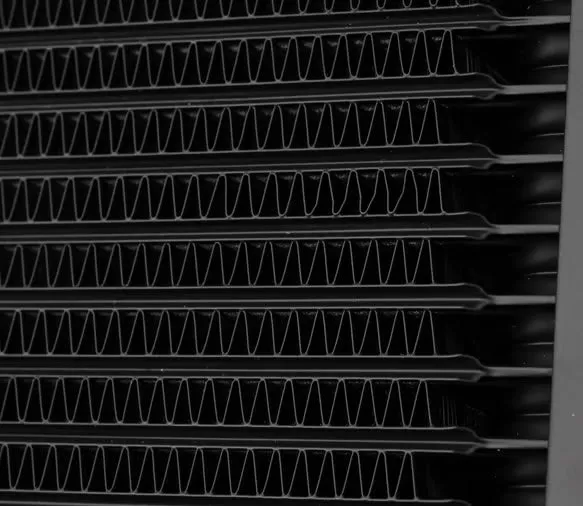

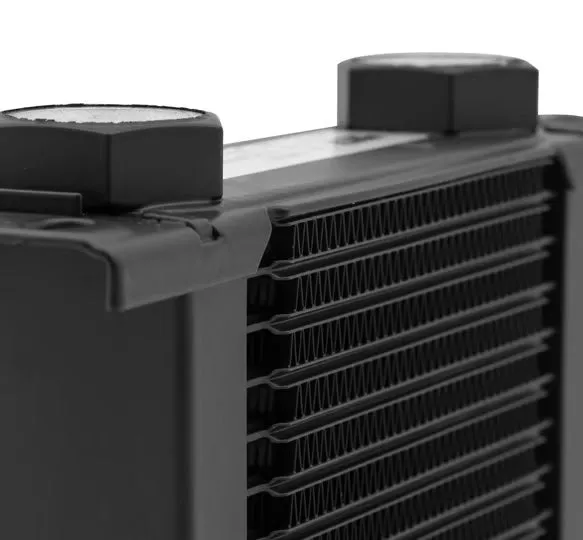

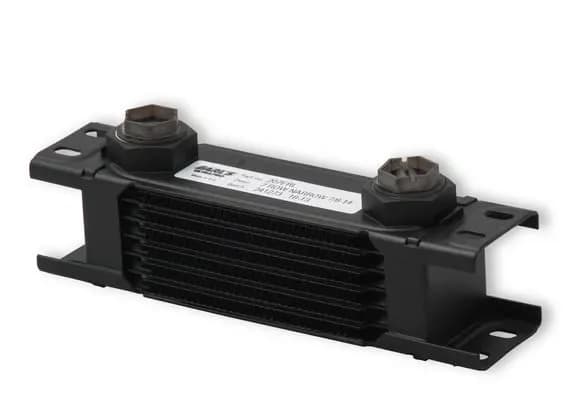

Description: Earls new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow.

Black Finish. Features:
Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers Made Using State of the Art Brazing Technology Highly Efficient Design w/ Minimal Pressure Drop Extremely Durable Lightweight Aluminum Construction w/Black Finish (3) Width Options
- Narrow 8.25, Wide 12.99, and Extra Wide 15.94 Overall Width (10) Height Options - w/ 7 to 60 Rows (2.09 to 18.31 Tall) (3) Fan Pack Style Coolers Include the Oil Cooler, Spal Cooling Fan(s) & Shroud Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order) Optional Mounting Brackets
– Sold Separately
