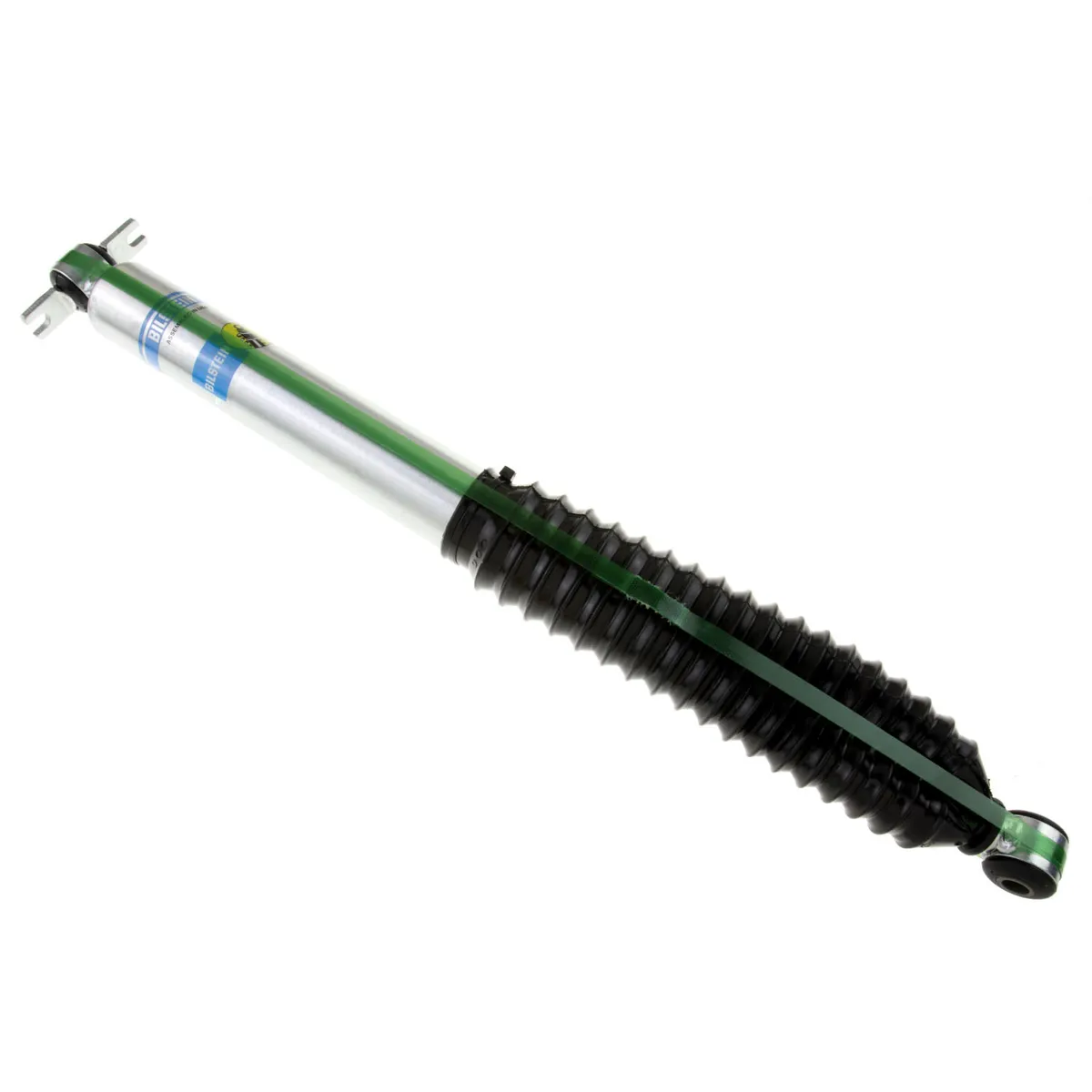

Bilstein B8 5100 Series Shock Rear 3.5-4in Lift - LJ/TJ
Bilstein B8 5100 Series Shock Rear 3.5-4in Lift - LJ/TJ
MPN: 33-185514UPC: 00651860453644In Stock
$118.00$168.10SAVE 30%
Starting at $10/mowithaffirm
Fits:Wrangler TJ1997-2006Wrangler LJ2004-2006Wrangler LJ RubiconWrangler TJ SportWrangler TJ Sahara1999-2001Wrangler TJ RubiconWrangler TJ X2003-2005Wrangler TJ TJ1997-1997Wrangler TJ1998-2006 Jeep Wrangler LJ Rubicon 2004-2006 Jeep Wrangler LJ Unlimited Rubicon 2005-2006
Bilstein B8 5100 Series Shock Rear 3.5-4in Lift.
Jeep Wrangler LJ Rubicon 2004-2006 Jeep Wrangler LJ Unlimited Rubicon 2005-2006
Bilstein B8 5100 Series Shock Rear 3.5-4in Lift
Technical Specifications
| Length | 26.8000 in |
| Width | 3.5500 in |
| Height | 3.5500 in |
| Part Number | 33-185514 |
| UPC | 00651860453644 |
| Active or Passive Suspension | Passive |
| Adjustable | No |
| Adjustable Compression | No |
| Adjustable Damping | Non-Adjustable |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Design | Smooth Body (Non-Coilover) |
| Boot Included | Blue Bellows |
| Case Quantity | 1 |
| Collapsed Length | 15.41in |
| Collapsed Length (IN) | 15.41 |
| Collapsed Length (MM) | 391.5 |
| Color | Silver |
| Compressed Length | 15.41 IN |
| Country of Origin | MX |
| Damper Type | Monotube |
| Emissions | Emissions Compliance Exempt |
| Extended Length | 635.0 MM |
| Extended Length (IN) | 25.00 |
| Extended Length (MM) | 635.0 |
Installation Overview
Difficulty
🔧🔧🔧🔧⚪
Advanced
Common Tools: Floor jack, Jack stands, Socket set, Torque wrench, Spring compressor
Read our Lift Kit Guide →Complete the BuildMore from Bilstein
