Johnny Joint® Rod End; 2 in.; 2 in. Mounting Width; 0.75 in.-16 RH Threaded Shank; Externally Greased; w/o Bolt; 0.4375 in. Thru Bolt Hole; Each;
RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm

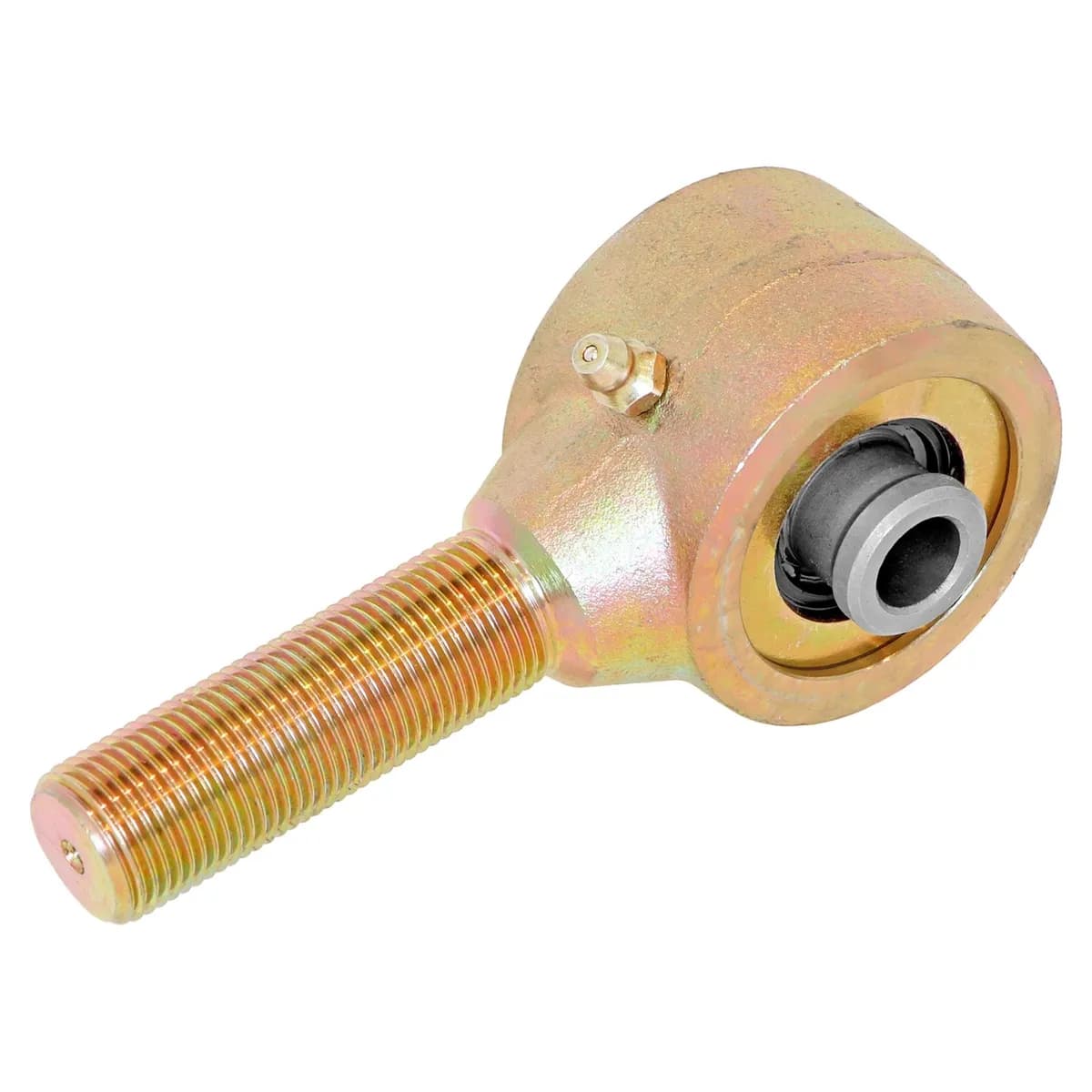

RockJock's forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 3/4 Inch-16 right hand threads on the shank, and a 2 Inch mounting width ball with a .4375 Inch thru bolt hole.
Finished in gold zinc plating. Details:
Forged Johnny Joint 2 Inch 2 Inch X 0.4375 Inch Ball 3/4 Inch-16 Right Hand Threaded Shank Externally Greased Each
