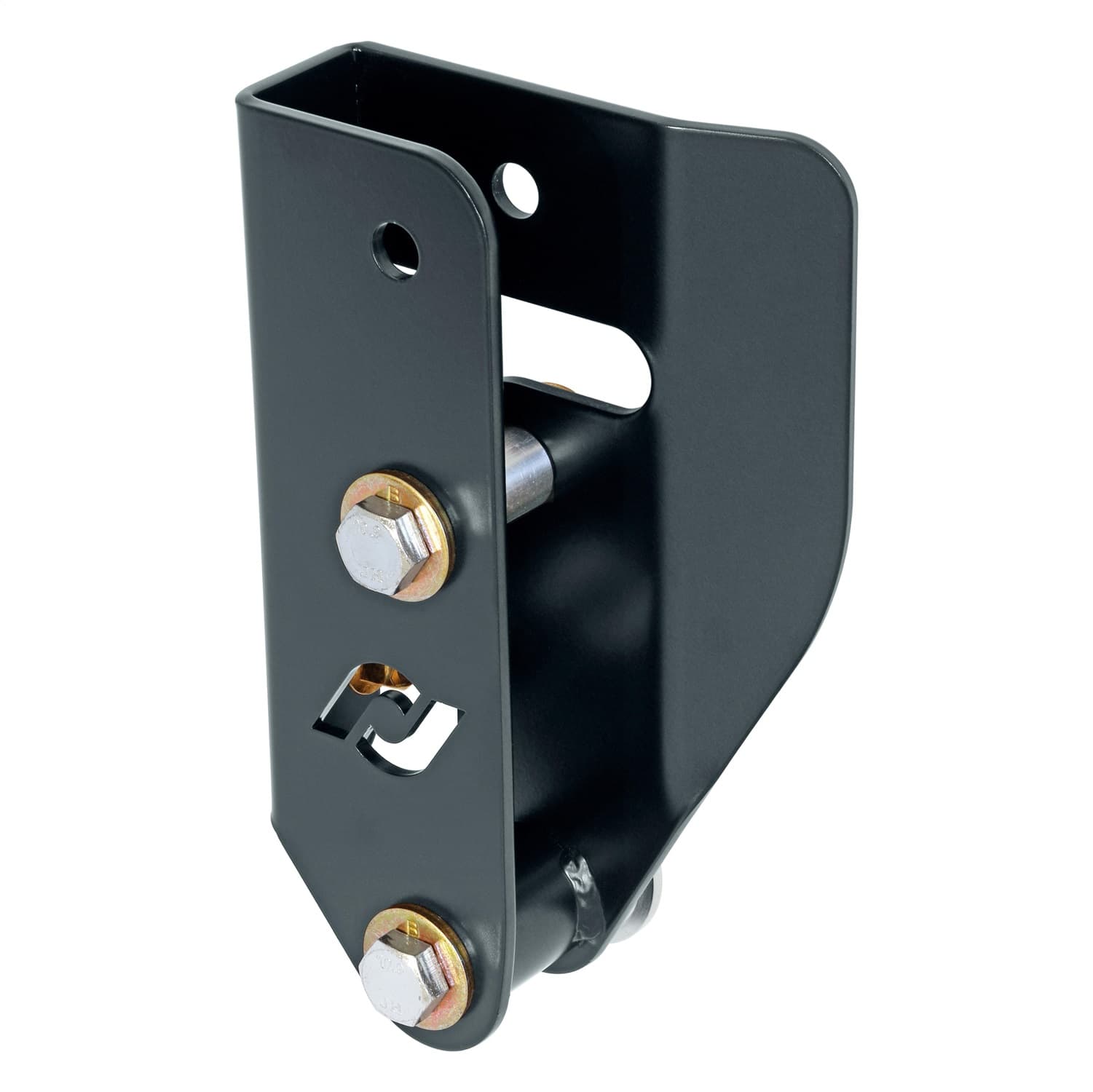

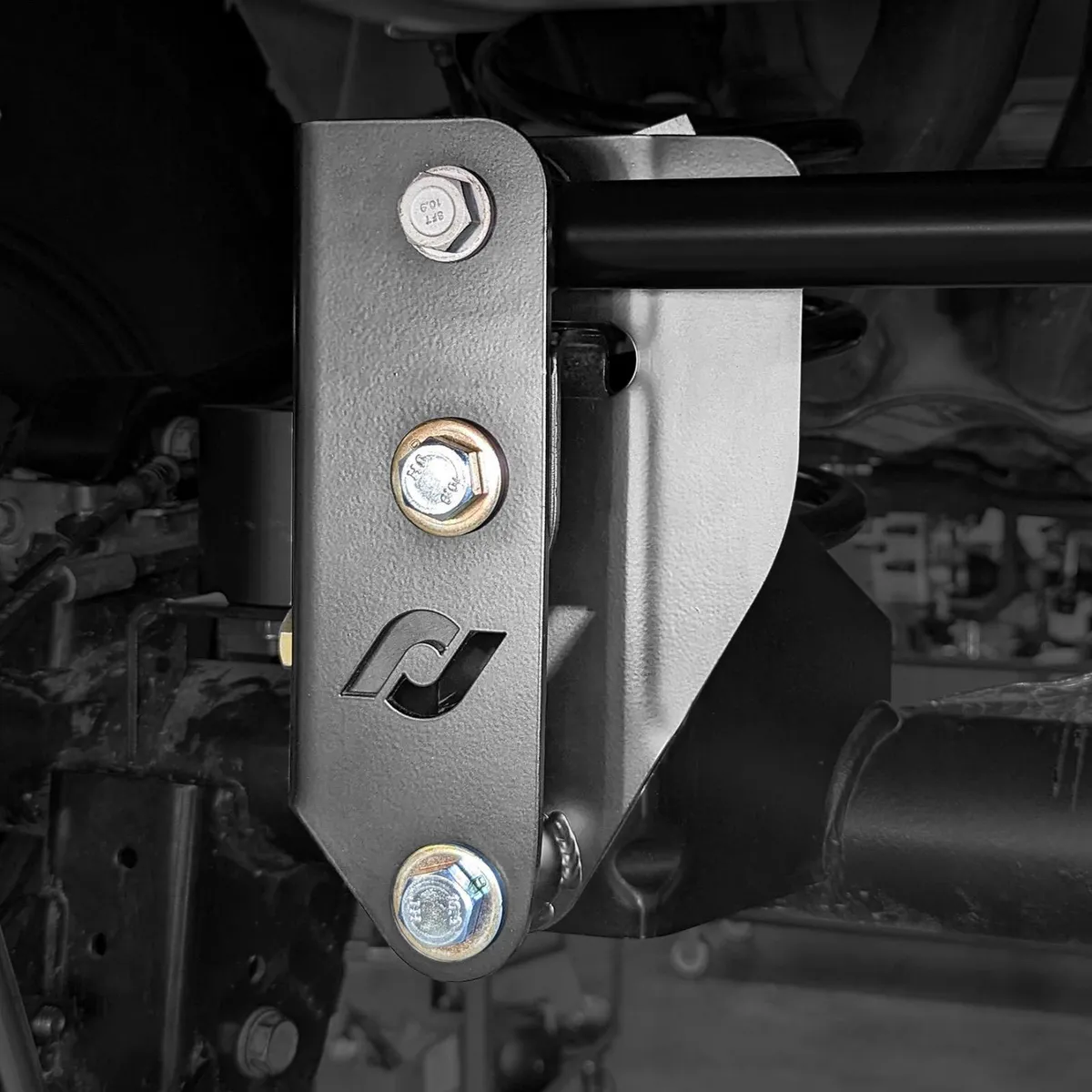

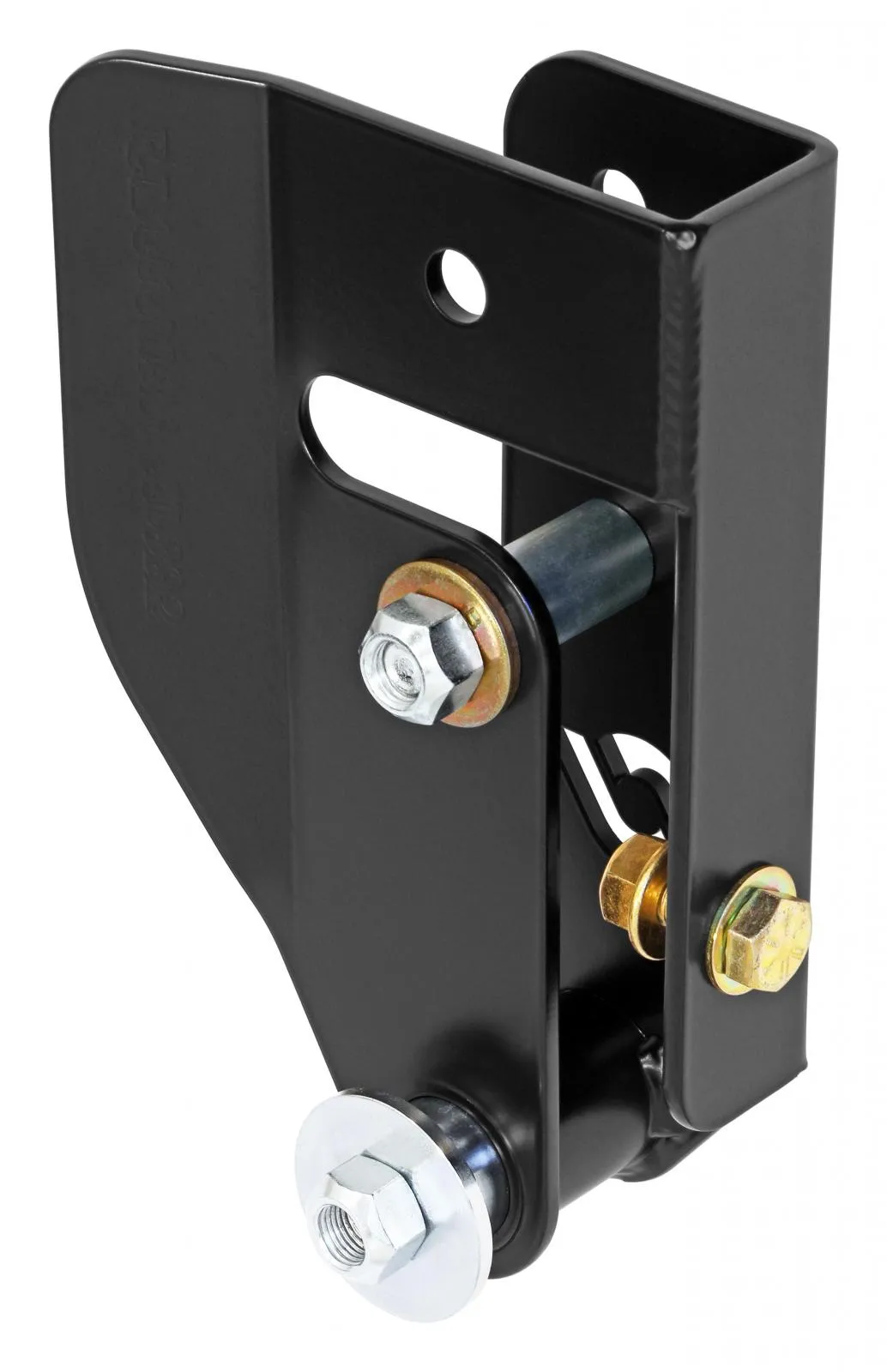

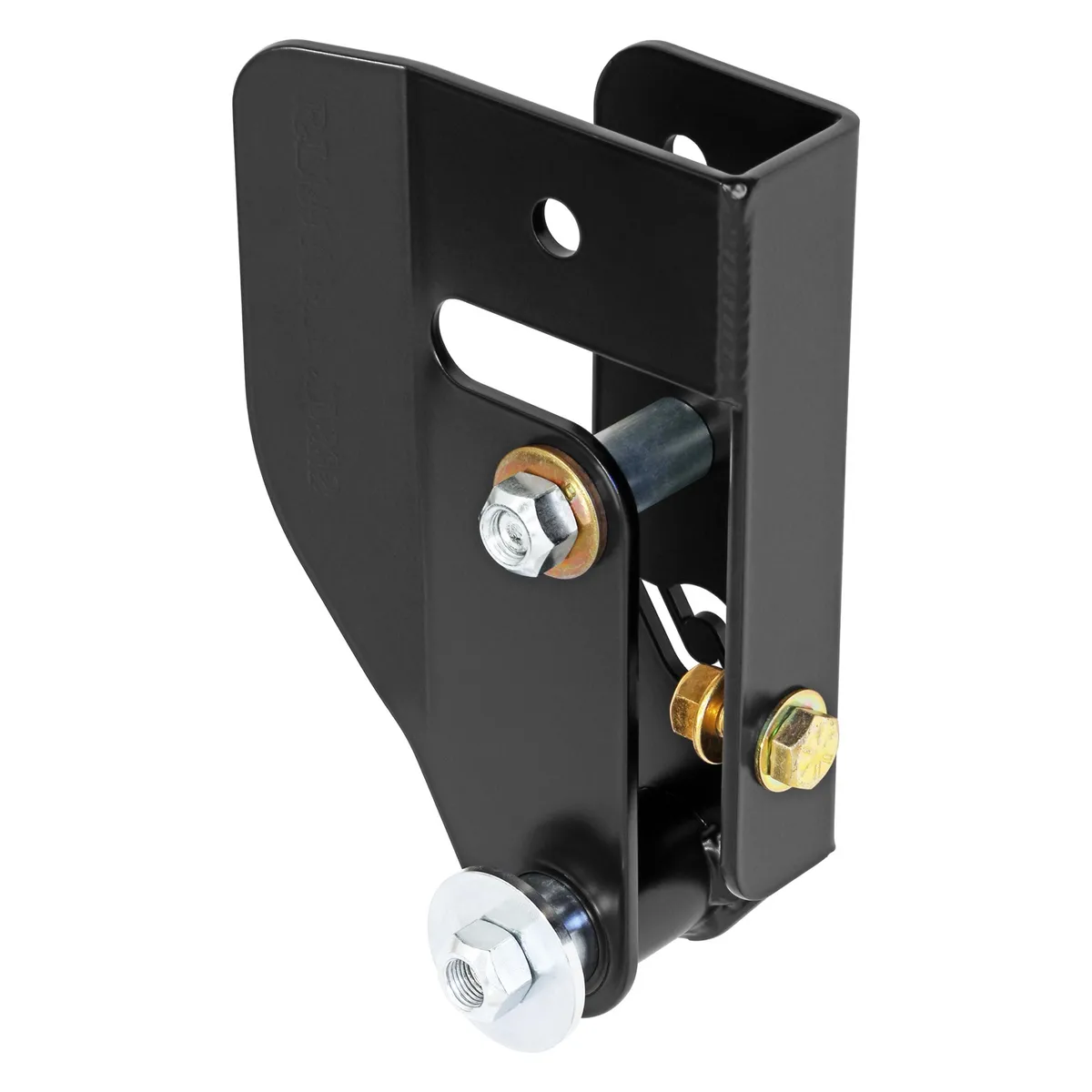

RockJock's Geometry Correction Axle Bracket Kit for the rear Trac Bar of JL Wrangler Unlimited vehicles equipped with the 392 Hemi engine relocates the axle housing mounting point of the rear trac bar upward, correcting the location of the trac bar mounting point on lifted vehicles. This kit is completely bolt-on and very simply installs into the factory axle housing. Bracket is finished in semi-gloss black and includes all necessary hardware for installation.

Kit Fits:
Jeep Wrangler JL Unlimited (4-door) - 392 Model's Stock Differentials Kit Includes: Trac Bar Relocation Bracket All Required Hardware Notes: Fitment
- JL 392 model factory rear axle housing only. Lift
- This kit is ideally designed to work on 2.5 in.-4 in. lifted vehicles. Trac Bar
- May be used with a factory trac bar (within the lift parameters above). Bracket may also be used with larger lift amounts, but will yield diminished benefit without the use of an adjustable trac bar, such as our CE-9120RJL Johnny Joint adjustable trac bar.

Parts List:
Trac Bar Relocation Bracket: RJ-141403-1 Steel Spacer: RJ-514001-1 Machined Steel Retainer: RJ-510000-1 1 3/8 in.

O.D. Flat Washer:
CE-H0016 14mm-1.5 x 80mm Long Hex Bolt: RJ-501102-1 1/2 in.-13 x 1 1/4 in.

Long Hex Bolt:
RJ-501203-3 .535 in.

I.D. Flat Washer:
CE-H0014 14mm-1.5 Lock Nut: RJ-502102-1 1/2 in.-13 Flanged Lock Nut: RJ-502505-1
