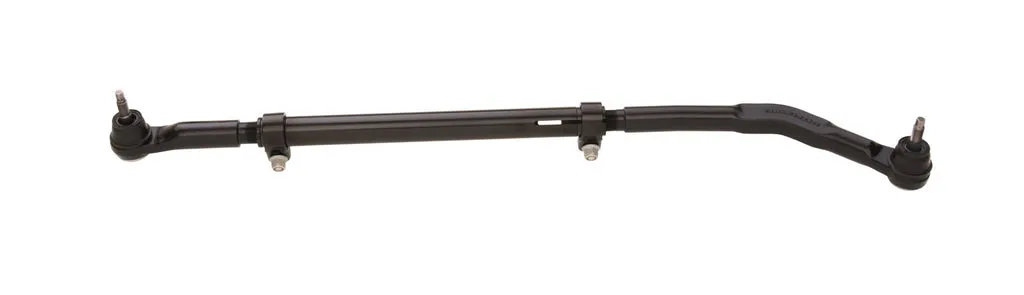

YETI XD™ 1½-ton JL/JT Bottom Mount Drag Link (DANA UD60 ) by Steer Smarts Part number: 78090001 STEER SMARTS™ is proud to present our most EXTREME steering linkage “The YETI XD™ Series” linkage for your Jeep JL Wrangler equipped with a DANA UD60 (68.5" wide). We applied our 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler. The YETI XD Bottom Mount Draglink is a complete bolt-on drag link . The YETI XD bottom mount installs in just minutes and bolts to the factory tapered knuckle hole and the factory pitman arm hole.

Features YETI XD DRAGLINK ASSEMBLY:
Easy bolt-on installation. Engineered for proper clearance to other chassis components to eliminate interferences.

MANUFACTURED IN THE USA BALL JOINTS:
30mm 1-1/2 Ton ball joints are designed specifically for the JL with a UD60 or PR60 (68.5" wide). Cold-headed medium carbon alloy steel ball studs provide incredible impact toughness for extreme duty usage. Induction heat-treated ball studs provide ultimate fatigue strength and superior off-road durability. Steel on steel bearings provide exceptional ball joint wear resistance and robustness. High-quality seals ensure long ball joint life. Our superior seals have been rigorously tested to minimize leakage between grease service intervals which greatly improves our ball joint reliability over our competition.

Fully greaseable. DRAGLINK ENDS:
Powder coat over E-coat for a long-lasting appearance under harsh conditions. External threads are e-coated for durability and long-term serviceability. Forged from medium carbon high harden-ability steel and heat treated for greater buckling, impact, and fatigue strength. Forged from medium carbon high hardenability steel and heat treated for even greater buckling, impact, and fatigue strength. Large 1 ¼ inch rolled threads at tie rod adjuster and draglink ends provide significantly increased strength over the original equipment threads. Unique “Reverse Pin” technology prevents our linkage from flopping or rocking. This technology is built into the socket unlike the weak external supports on some competitor linkages.

ADJUSTER TUBE:
Draglink adjuster is manufactured from large diameter ¼ inch thick wall high strength 4130 Chromoly steel tubing for maximum buckling strength. Adjuster clamps assure proper clamp force using conventional tools without the possible risk of loosening like large jam nuts. Designed with right hand and left hand threads for quick and easy adjustment when installed on the vehicle. Internal threads and tube are also e-coated for long term serviceability. Draglink fits all left hand drive JL Wrangler models 2018+ including Rubicon and Unlimited equipped with a UD60 or PR60 (68.5" wide). Videos Installation INSTALL TIME (approx) 1 Hour SKILL LEVEL Moderate Mechanical Skill Required TOOLS Basic Hand Tools Torque Wrench INSTRUCTIONS YETI XD
