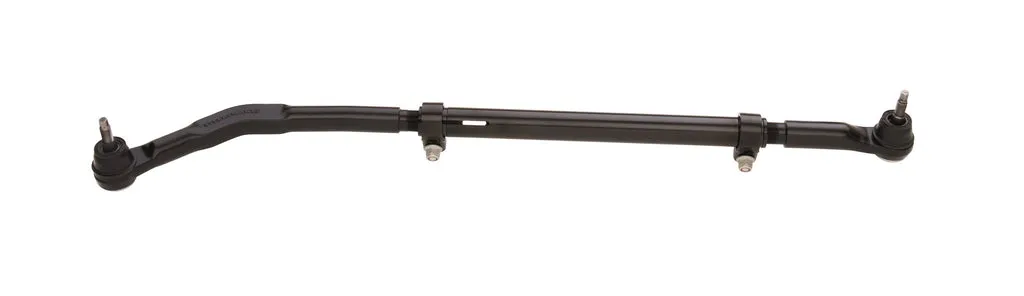

Jeep Drag Link Top Mount Assembly High Steer or Drilled-Out OE Knuckle Yeti XD For 07-18 Wrangler JK Steer Smarts

Steer Smarts Jeep Drag Link Top Mount Assembly High Steer or Drilled-Out OE Knuckle Yeti XD For 07-18 Wrangler JK Steer Smarts
1 / 3
Hover to zoom

Jeep Drag Link Top Mount Assembly High Steer or Drilled-Out OE Knuckle Yeti XD For 07-18 Wrangler JK Steer Smarts

MPN: 78066001UPC: 00887753497031
In Stock
Only 4 left in stock - order soon!
$475.00$494.00SAVE 4%
Starting at $40/mowithaffirm
12 Months
Installation Guide
Fits:Wrangler JK2007-2018Wrangler JKU2007-2018Wrangler JK SportWrangler JK SaharaWrangler JK RubiconWrangler JK2008-2018Wrangler JK JK2007-2007Wrangler JK 2.5Ton JK

2007-2018 Jeep Wrangler JK Yeti XD JK Drag Link Top Mount Assembly (High Steer or Drilled-Out OE Knuckle). A Minimum Lift Height Of 3-3.5 inch (And Correct Bump Stop) Is Required For A Top-Mount Drag Link. Track Bar Relocation Bracket Required For Top Mount Drag Link To Maintain Proper Parallel

1

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Guaranteed Fitment

Or your money back

Pay Over Time

With Affirm

Usually ships in 1-3 business days

2007-2018 JK YETI XD™ Top Mount 2½-ton Drag Link for High-Steer Knuckles STEER SMARTS™ is proud to present our most EXTREME steering linkage “The YETI XD™ Series” linkage for your Jeep JK Wrangler. We applied our 85 years of steering “lessons learned” to develop the strongest most durable linkage ever built for the Wrangler. The YETI XD Top Mount Draglink for a high steer or drilled-out stock knuckle was designed to be a complete bolt-on for JK's that have already been modified for a flipped draglink . The YETI XD Top Mount installs in just minutes and bolts to a High Steer knuckle hole and the factory pitman arm hole. **NOTE** A minimum lift height of 3-3.5" (and correct bump stop) is required for a top-mount drag link. Minimum height requirements will vary by lift manufacturer - please contact us if you are unsure. Part #79017001 (Track Bar Relocation Bracket) is necessary when flipping your drag link to maintain proper parallel geometry track bar and drag link. ***THERE IS NO TAPER INSERT PROVIDED WITH THE HIGH-STEER DRAG LINK - while this kit works with drilled knuckles that have JK taper insters, it was designed for use with High Steer Knuckles from companies like Reid, Rancho, Teraflex, Skyjaker, etc -- we do recommend replacing the tapered insert with a new one before installing this part to ensure proper fitment but we do not offer one and one is not included with the product*** Draglink fits all left-hand drive 2007-2018 JK Wrangler models including Rubicon and Unlimited.

Note:
A minimum of 17” wheels is recommended. 16" wheels with a maximum of 4.5 backspacing might fit but not guaranteed. **THIS PART DOES NOT COME WITH A TAPER SLEEVE
- THIS DRAGLINK HAS A TAPERED STUD INTENDED FOR AFTERMARKET KNUCKLES WITH A MACHINED TAPER OR A FACTORY KNUCKLE PREVIOUSLY DRILLED WITH A 7/8ths INSERT**
