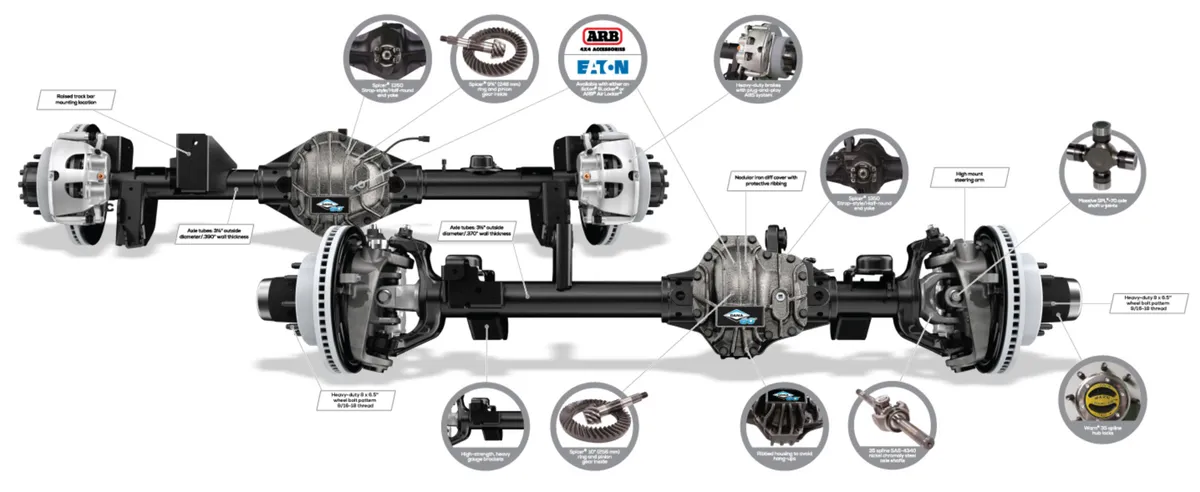

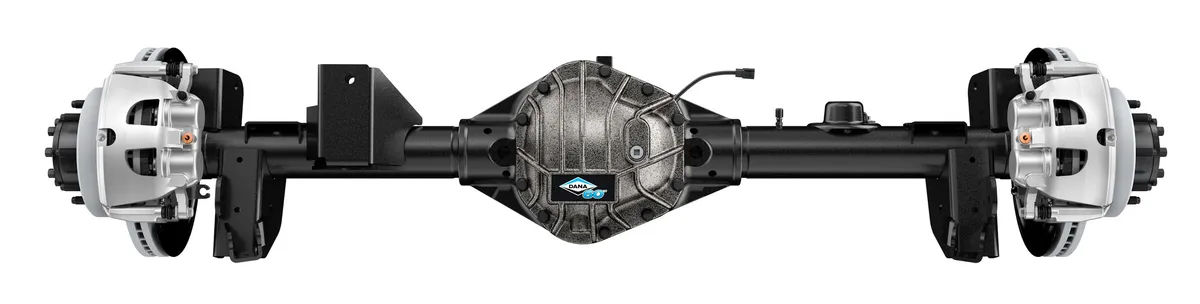

Ultimate Dana 60 Rear Crate Axle For Jeep JL 5.38 Ratio With Electronic Locker

1 / 3
Ultimate Dana 60 Rear Crate Axle For Jeep JL 5.38 Ratio With Electronic Locker
MPN: 10048784UPC: 00023913641399In Stock
Almost gone! Only 1 remaining $8,499.99$12,539.07SAVE 32%
Starting at $709/mowithaffirm
Jeep Wrangler JL Rubicon 2018-2021 Jeep Wrangler JL Rubicon I4 Turbo 2018-2021
Dana Ultimate 60 Rear Axle w/E-Locker 5.38 Ratio - Includes Brakes.
Freight Shipping — quoted at checkout Jeep Wrangler JL Rubicon 2018-2021 Jeep Wrangler JL Rubicon I4 Turbo 2018-2021
Dana Ultimate 60 Rear Axle w/E-Locker 5.38 Ratio
- Includes Brakes
Earn 8499 Yittzy Rewards points with this purchase — 1 point per $1 spent. Join free Technical Specifications
| Weight | 395.9100 lbs |
| Length | 94.0000 in |
| Width | 25.5000 in |
| Height | 22.5000 in |
| Part Number | 10048784 |
| UPC | 00023913641399 |
| Additional Handling Charge | Yes |
| Air Restricted | Yes |
| Axle Model | DANA 60 |
| Axle Shaft Material | Chromoly |
| Axle Shaft U Joint Series | SPL70 |
| Axle Style | Full Float |
| Axle Type | Dana 60 |
| Bolt Pattern | 8x6.5 |
| Brakes | 360mm |
| Brakes Included | Y |
| Country of Origin | US |
| Drive Shaft U Joint Series | 1350 |
| Emissions | CARB Eligible |
| End Yoke Style | Half Round |
| Gear Ratio | 5.38 |
| Height | 22.5000 |
| Height (in) | 22 |
| Hub Surface to Hub Surface(IN) | 69.000 |
| Inner Axle Shaft Spline Count | 35 |
Installation Overview
Common Tools: Specialized gear tools, Dial indicator, Torque wrench, Press
