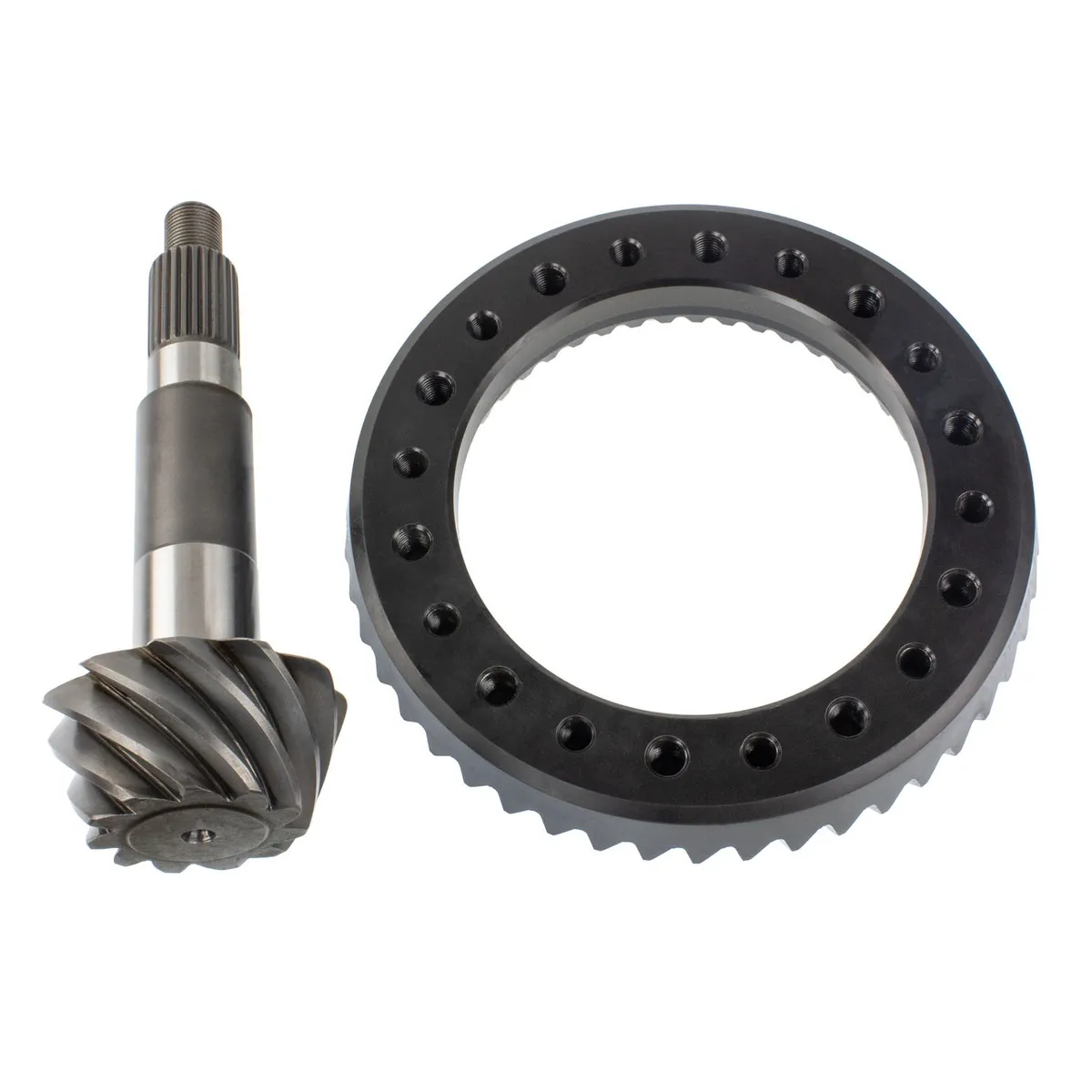

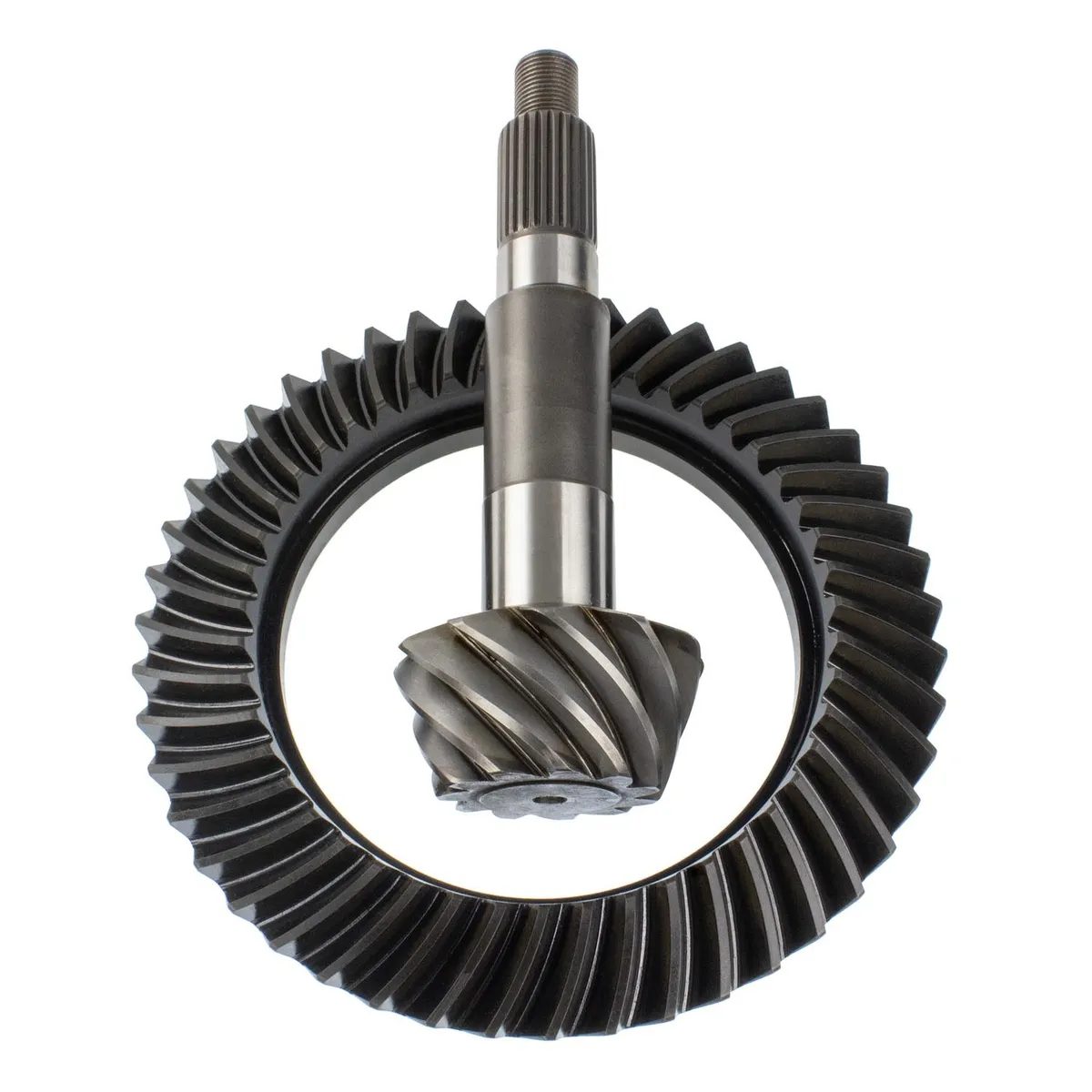

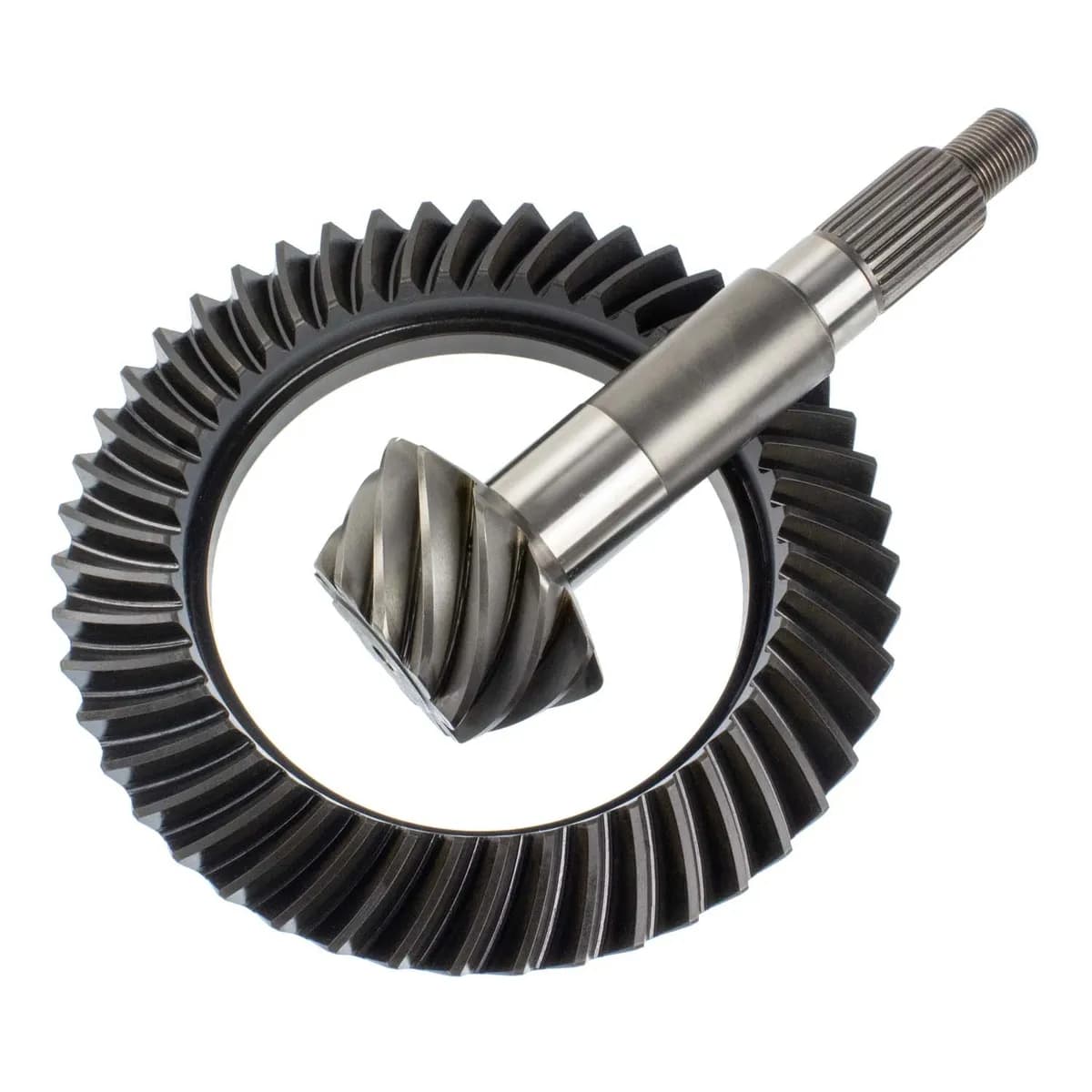

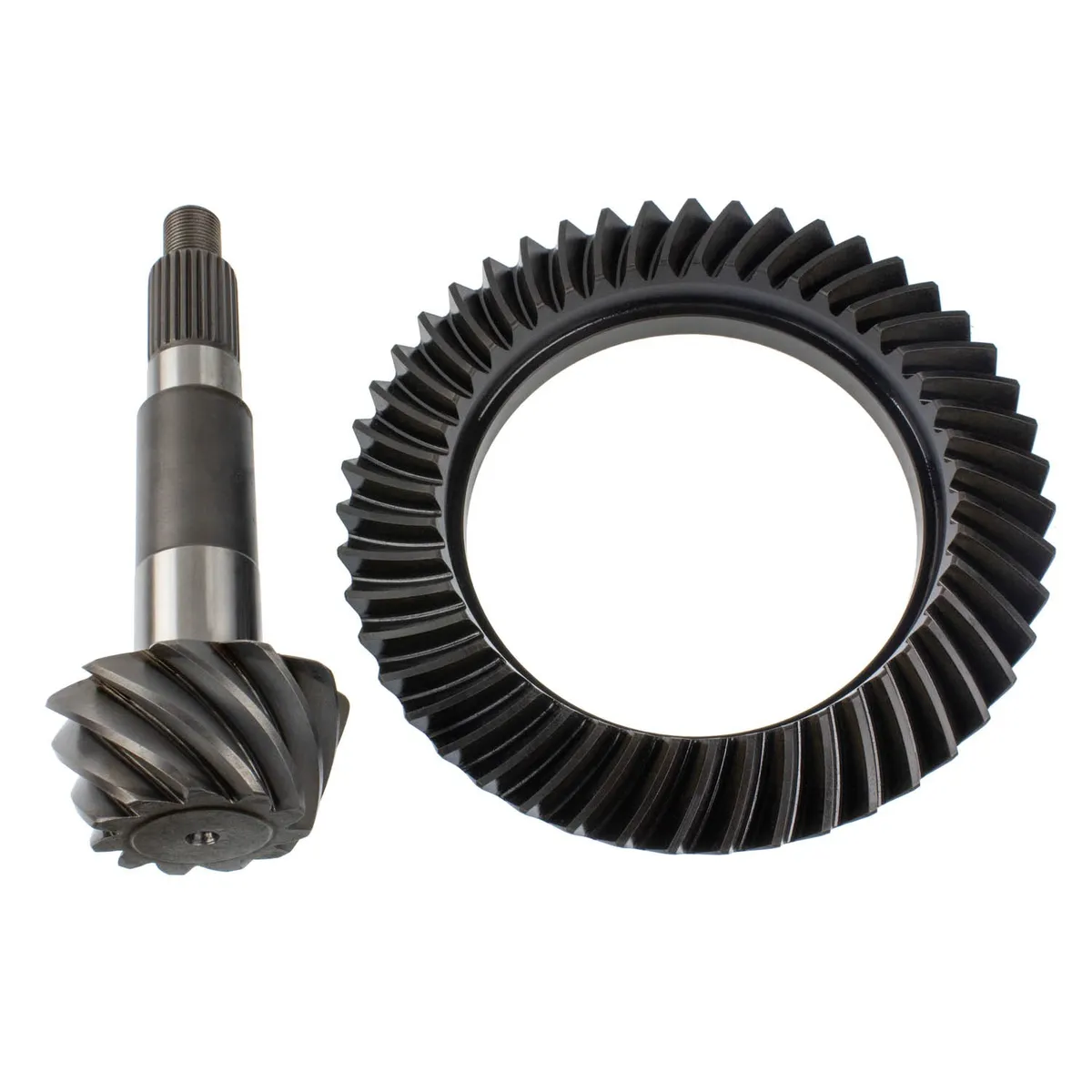

4.27 Ratio Ring and Pinion for a Front or Rear Dana 44 Standard; Rear Dana 44 IC
1 / 2
4.27 Ratio Ring and Pinion for a Front or Rear Dana 44 Standard; Rear Dana 44 IC
MPN: D44-427UPC: 00698231010907In Stock
$358.99$379.25SAVE 5%
Starting at $30/mowithaffirm
Fits:Cherokee XJ1986-1993Wrangler TJ1997-2006Wrangler LJ2004-2006Comanche MJ1986-1992CJ CJ-51960-1983CJ CJ-61966-1974CJ CJ-71986-1986Cherokee XJ 2-Door1986-1993Comanche MJ Base1986-1992Wagoneer SJ1971-1990Grand Wagoneer SJ1984-1991Commando C1041972-1973CJ-61975-1975CJ-51975-1975Commando1966-1971J101974-1988Grand Wagoneer1993-1993CJ-5 CJ1976-1976CJ-6 CJ1970-1970FC1501966-1966 TEN FACT DANA 44 CJ/TJ RING & PIN 4.27
TEN FACT DANA 44 CJ/TJ RING & PIN 4.27
Technical Specifications
| Length | 15.0000 in |
| Width | 11.0000 in |
| Height | 5.2500 in |
| Part Number | D44-427 |
| UPC | 00698231010907 |
| App/Model | Dana 44 Standard |
| Country of Origin | KR |
| Cover Bolt Quantity | 10 |
| Differential Carrier Break | 3.92 Ratio and Higher |
| Differential Case Design Type | Dana 44 Standard |
| Emissions | CARB Eligible |
| Gear Ratio | 4.27 |
| Height | 5.2500 |
| Height (in) | 3.75 |
| Installation Instructions | https://sdda.semadata.org/Standard/Midwest Truck/MGP_RP_Install.pdf |
| inventory_nv1 | 0 |
| inventory_pa1 | 0 |
| inventory_pa2 | 0 |
| Item Quantity/Size | 1 EA |
| Length | 15.0000 |
| Length (in) | 12.25 |
| Pinion Gear Tooth Quantity | 11 |
| Pinion Shaft Diameter | 1.376 IN |
| Pinion Spline Count | 26 |
| Position | Front |
Installation Overview
Common Tools: Specialized gear tools, Dial indicator, Torque wrench, Press
