McLeod McLeod 1364 1300 Series Hydraulic Bearing:GM:Tremec TKO 500/600,3550

1 / 2

Hover to zoom

McLeod

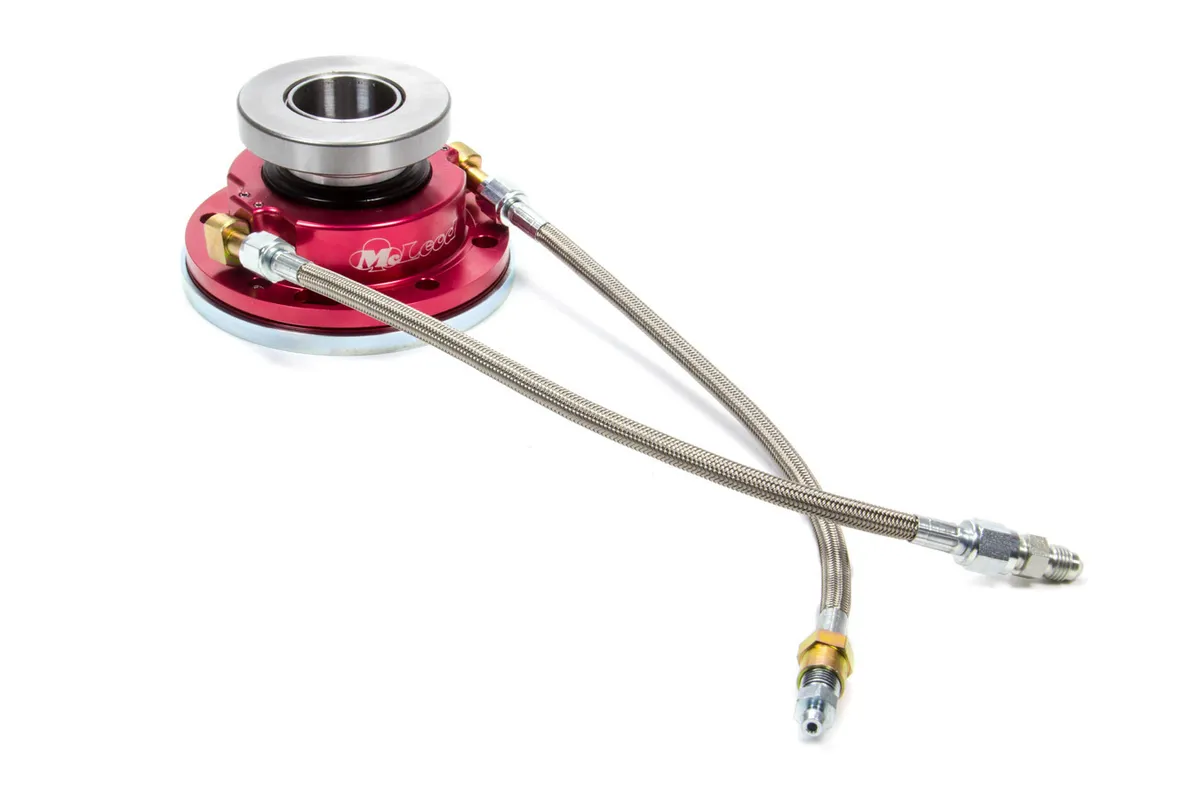

McLeod 1364 1300 Series Hydraulic Bearing:GM:Tremec TKO 500/600,3550

Name: McLeod 1364 1300 Series Hydraulic Bearing:GM:Tremec TKO 500/600,3550
Brand: McLeod
SKU: 1364
Price: 395 USD
Availability: InStock

MPN: 1364UPC: 00887753015204

In Stock

Only 6 left in stock - order soon!

$395.00$506.09SAVE 22%

Starting at $33/mowithaffirm

90 Days

Installation Guide

Throwout Bearing - 1300 Series - Hydraulic - Bolt-On - 4.680 in Collar ID - Braided Stainless Lines - GM / Ford Tremec 5 Speeds - Each

Secure Checkout

SSL Encrypted

Easy Returns

30-day policy

Pay Over Time

With Affirm

Throwout Bearing - 1300 Series
- Hydraulic
- Bolt-On - 4.680 in Collar ID
- Braided Stainless Lines
- GM / Ford Tremec 5 Speeds
- Each

Complete the BuildMore from McLeod

RXT TWN ASSY LS 6BLT CRK 11/8 X 26 SPLINE BRZ FACING 168

Clutch Flywheel

Length	13.25 in
Width	5.7 in
Height	3.25 in
Part Number	1364
UPC	00887753015204
A Dimension	2.50 in. to 2.99 in.
Bearing Face I.D. (in.)	1.590 IN
Bearing Face O.D. (in.)	3.000 IN
Country of Origin	US
Emissions	CARB Eligible
Height	3.25
Height 1 Spacer	2.590In.
Height 2 Spacers	2.740
Height 3 Spacers	2.890In.
Installation Instructions	https://sdda.semadata.org/Standard/Mc Leod/1300 Series Hydraulic Throw-Out Bearing Instructions(9_2024).pdf
Item Quantity/Size	1 EA
Length	13.25
Note	This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2	This bearing will NOT work with counter weighted diaphragm pressure plates.
Qty Per Application	Normal Quantity Used in a Vehicle:1 Each
Quantity	Sold individually.
Spline	1 1/8In. x 26
Stock Collar I.D. (in.)	4.680In.
Transmission	Tremec TKO 500/600
Warranty	90 Days

McLeod 1364 1300 Series Hydraulic Bearing:GM:Tremec TKO 500/600,3550

Complete the BuildMore from McLeod

RXT TWN ASSY LS 6BLT CRK 11/8 X 26 SPLINE BRZ FACING 168

McLeod 6912-07 RST: Metric Ring: GM 97-13 LS-X: Ford 01-17 4.6/5.0L: 1-1/8 x 26

McLeod 16908 Ball Stud: Adjustable: GM Vehicles: With Base and Nut

RST TWN ASSY LS 6BLT CRK 11/8 X 26 SPLINE ORG FACING 168

KIT HYDRAULIC CONVERSION 6472 CHEVELLE FIREWALL KIT

McLeod 139115 1300/1400 Series Bearing Repair Kit:2005-Up MODels

Related Articles

Jeep Gear Ratios: Choosing the Right Gears for Your Tire Size

Complete Jeep Recovery Gear Checklist for Every Trail

Spring Clean Your Jeep: Complete Winter Recovery Guide

You May Also Like

Centerforce ? Accessories, Premium Throw Out Bearing / Clutch Release Bearing

Centerforce ? Accessories, Premium Throw Out Bearing / Clutch Release Bearing, Fits Nissan 240Z and 260Z 2.4L/2.6L

McLeod 16505 Throw Out Bearing: GM Adjustable To 3 Lengths .

McLeod 16100 Throw Out Bearing:Ford 1986-04 Mustang. 1-1/16 x 10 Spline

McLeod 14-302 1400 Series Hydraulic Bearing: GM: T-56, T-56 Magnum,TR-6060

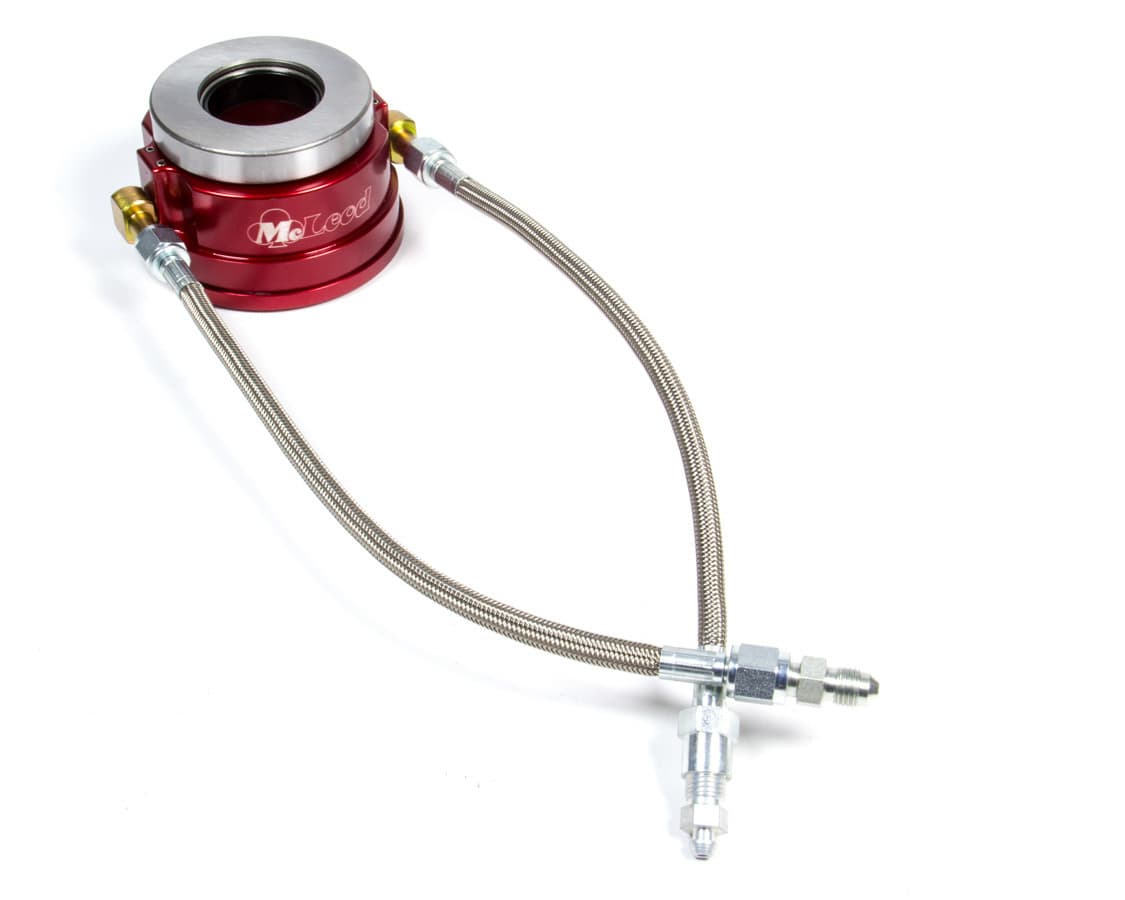

SLIP ON BRG W/ELBO FIT. & ADJ SCREW FORD/MOPAR W/ROUND FACE BRG
