{ "__shgImageV2Elements": { "uuid": "s-b629cc68-76af-4583-877e-6bdee2cc6216" } } Product Highlights Features Designed in the USA: Experience the excellence of American ingenuity. Stinger products are proudly designed by our innovative engineers in California, USA.

Flush Mount:

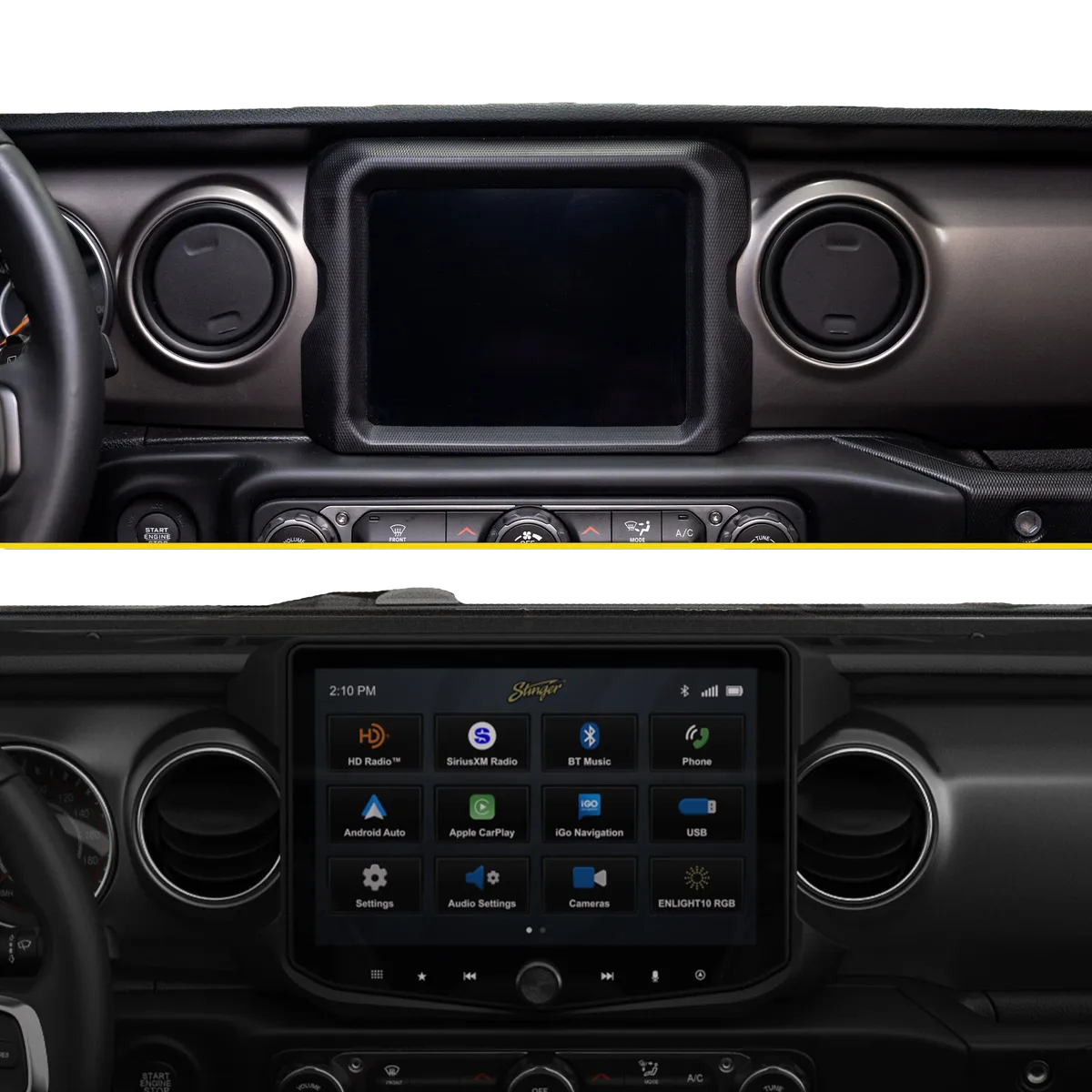

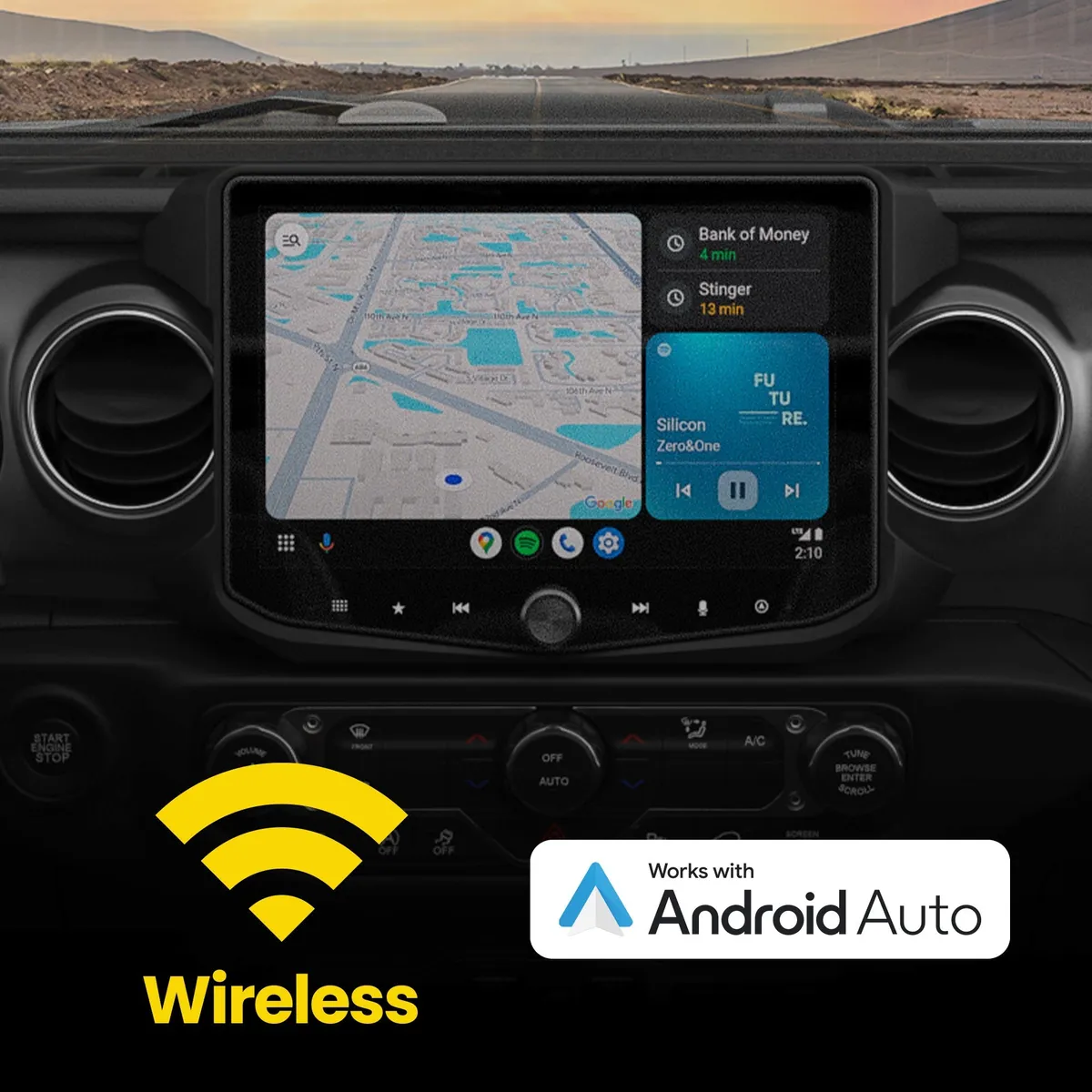

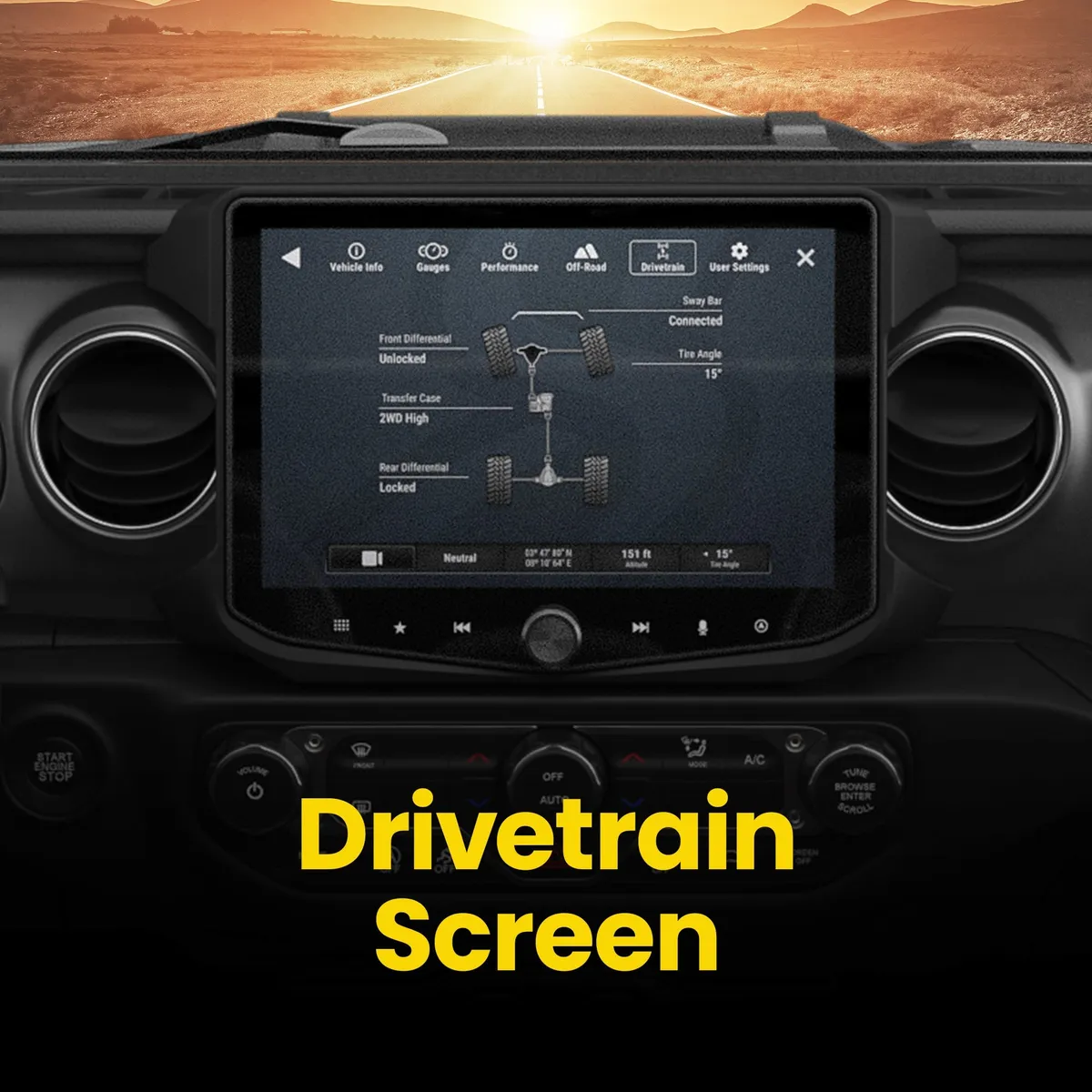

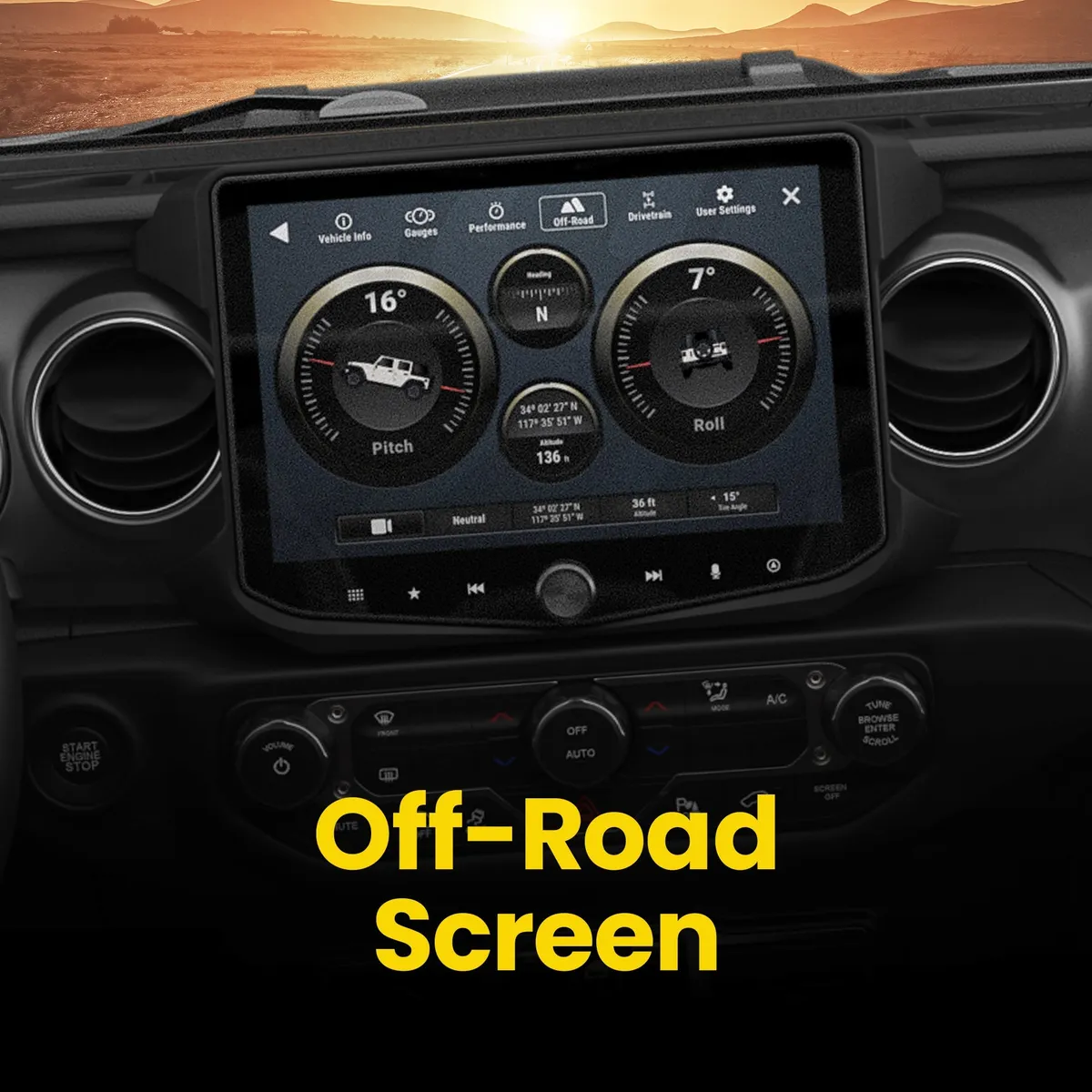

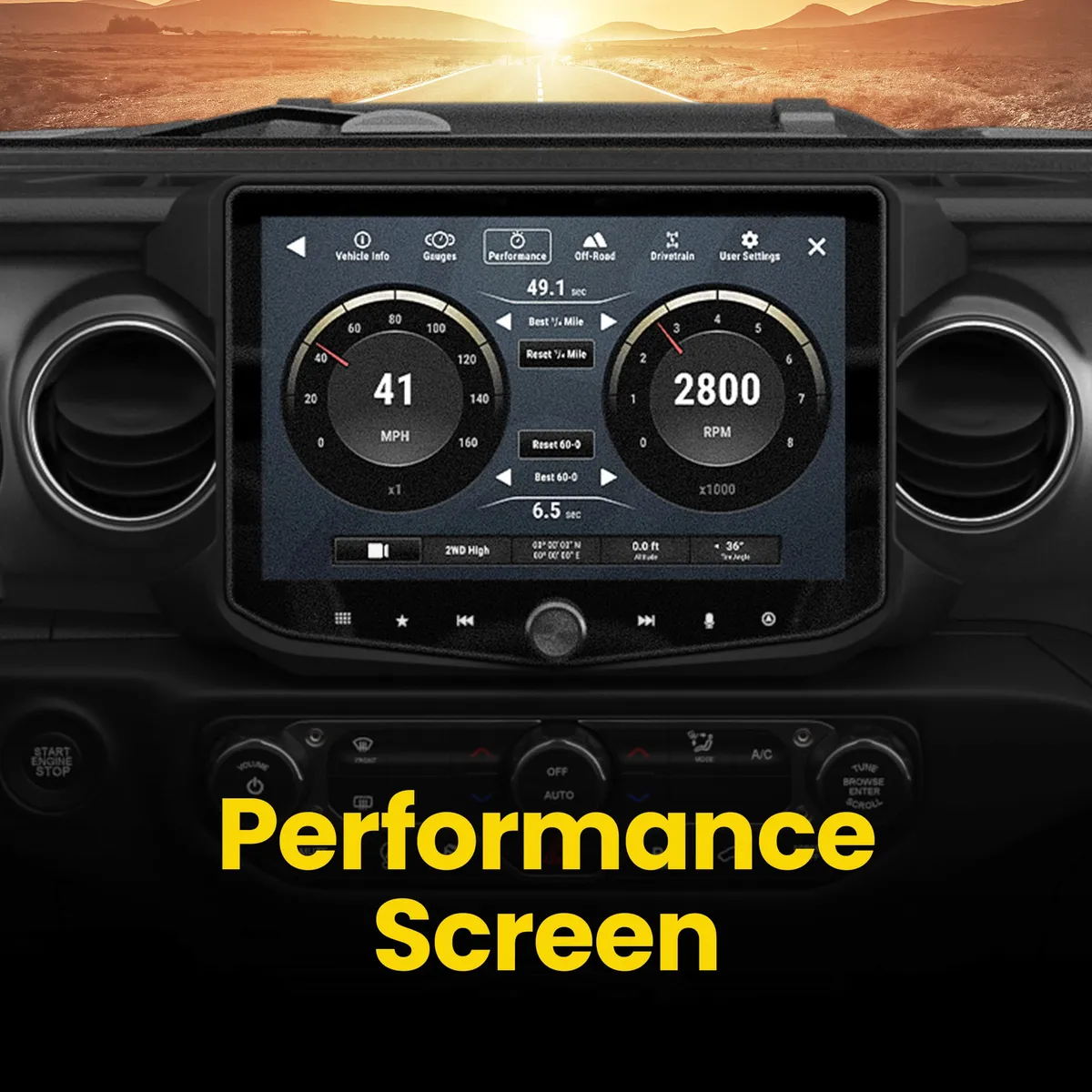

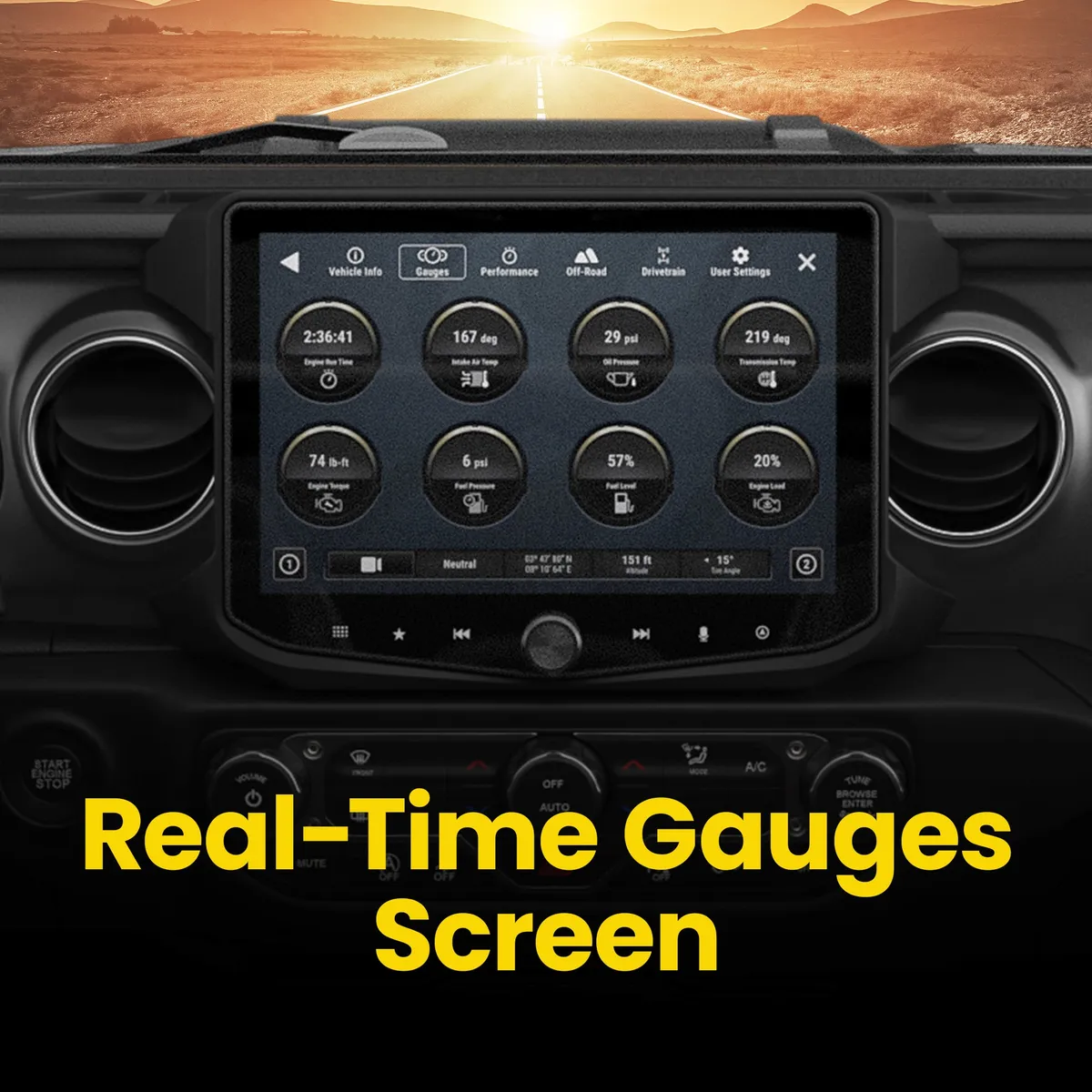

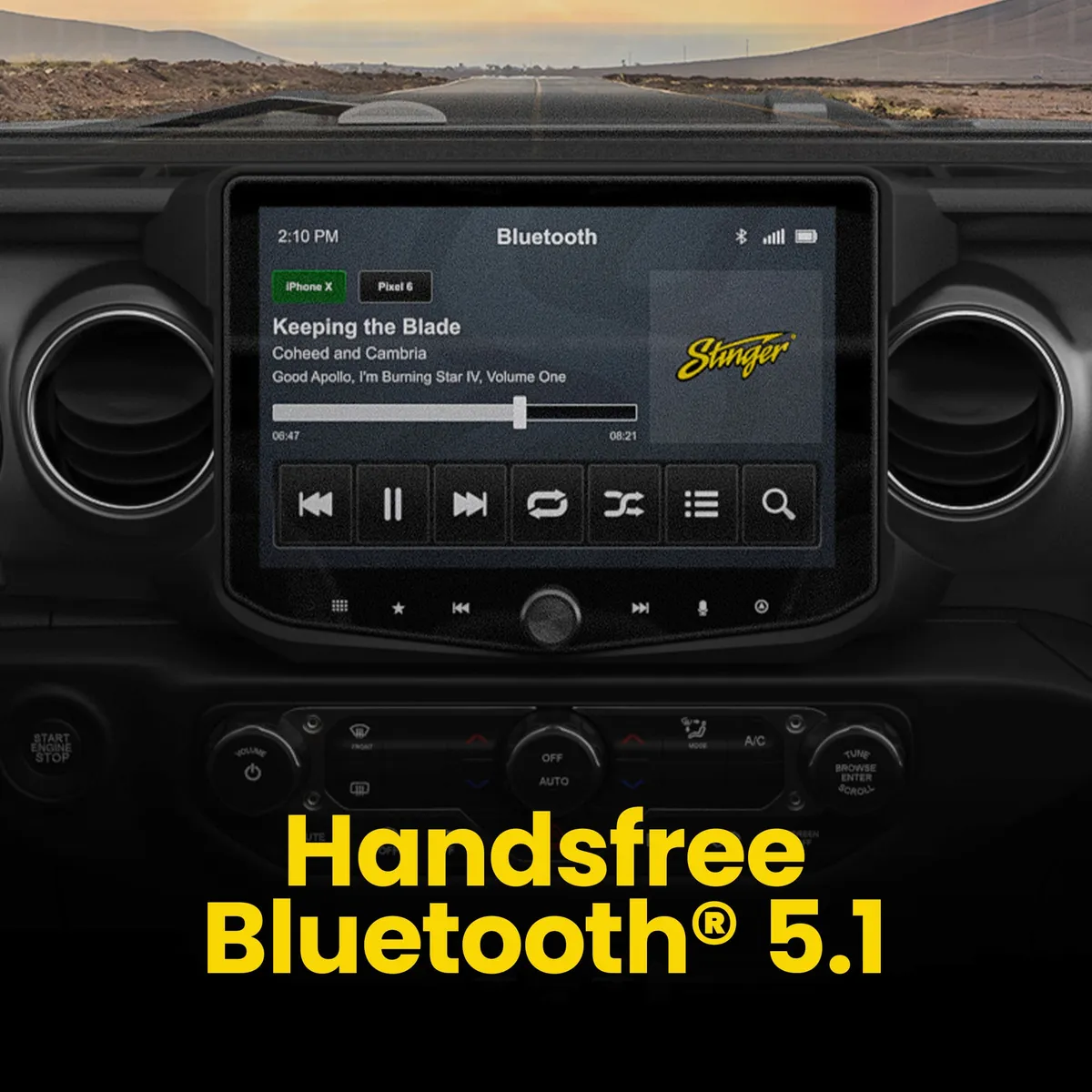

This head unit seamlessly integrates into the vehicle's dashboard, creating a clean and polished look. This design maximizes space efficiency, enhances durability, and provides a factory-like appearance. { "__shgImageElements": { "uuid": "s-48b4f1c4-2d95-40cb-8cc8-8c35de8e31bc" } } MFi-Ceritifed Wireless & *Wired Smartphone Integration: Access your phone's smart features by connecting through wired or wireless Apple CarPlay, Android Auto, and hands-free Bluetooth. *When connecting Apple Car Play or Android Auto via USB, only USB-C connection is compatible. { "__shgImageElements": { "uuid": "s-8ac8f46b-8669-45e8-85d5-725cd08c3008" } } On-Screen Vehicle Information Gauges: Vehicle-specific screens and apps with many user customizations. All are enhanced with off-road data, including transfer case, current position (latitude/longitude), altitude, steering angle, and more.

Plug-and-Play Capability:

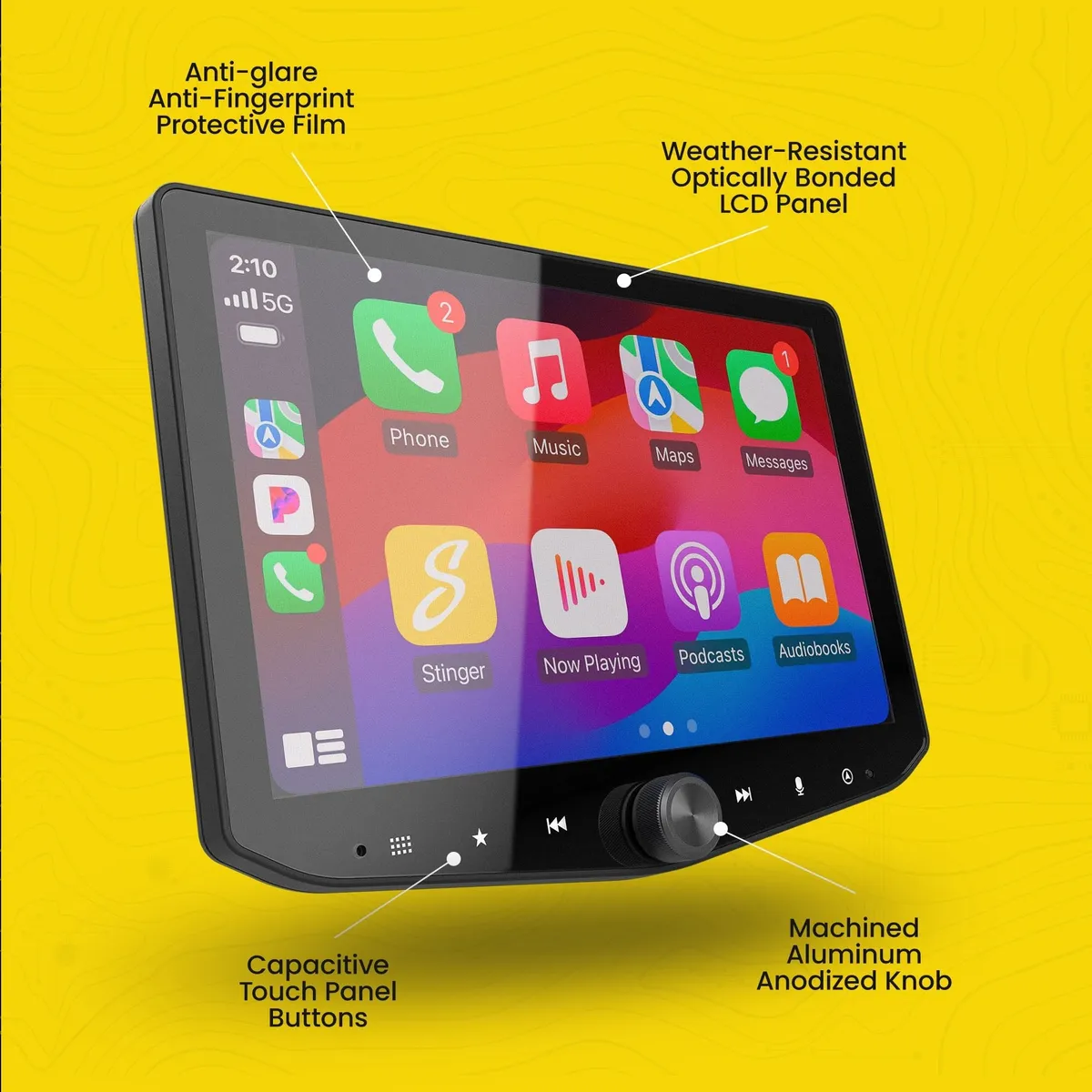

Users can easily connect the Stinger HORIZON10 Radio Kit to their vehicle's existing wiring harness without needing additional modifications or complex wiring procedures. This ensures a hassle-free installation experience, saving time and effort. { "__shgImageElements": { "uuid": "s-5d27a046-b9de-47f4-a198-17a70f0b2c49" } } High-Resolution Touchscreen: 10.1" 1280x800 HD screen with anti-glare, anti-reflection, anti-fingerprint film protection.

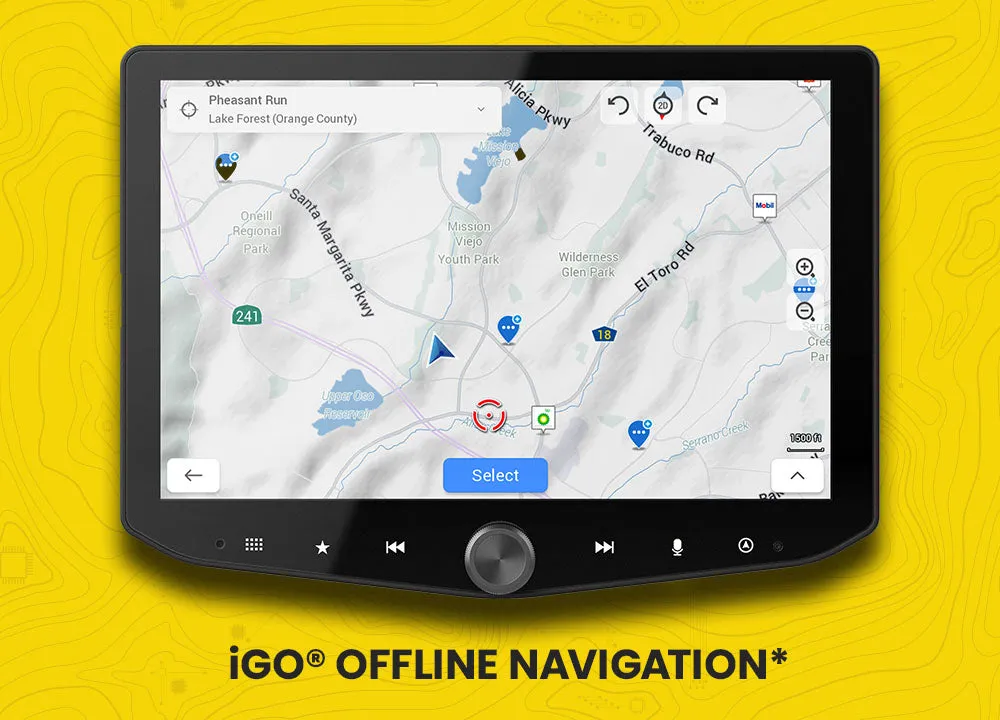

Off-Road Ready :
Upgrade with an iGO SD card (sold separately) for thousands of waypoints and network-free GPS, ideal for off-road adventures.

Note:

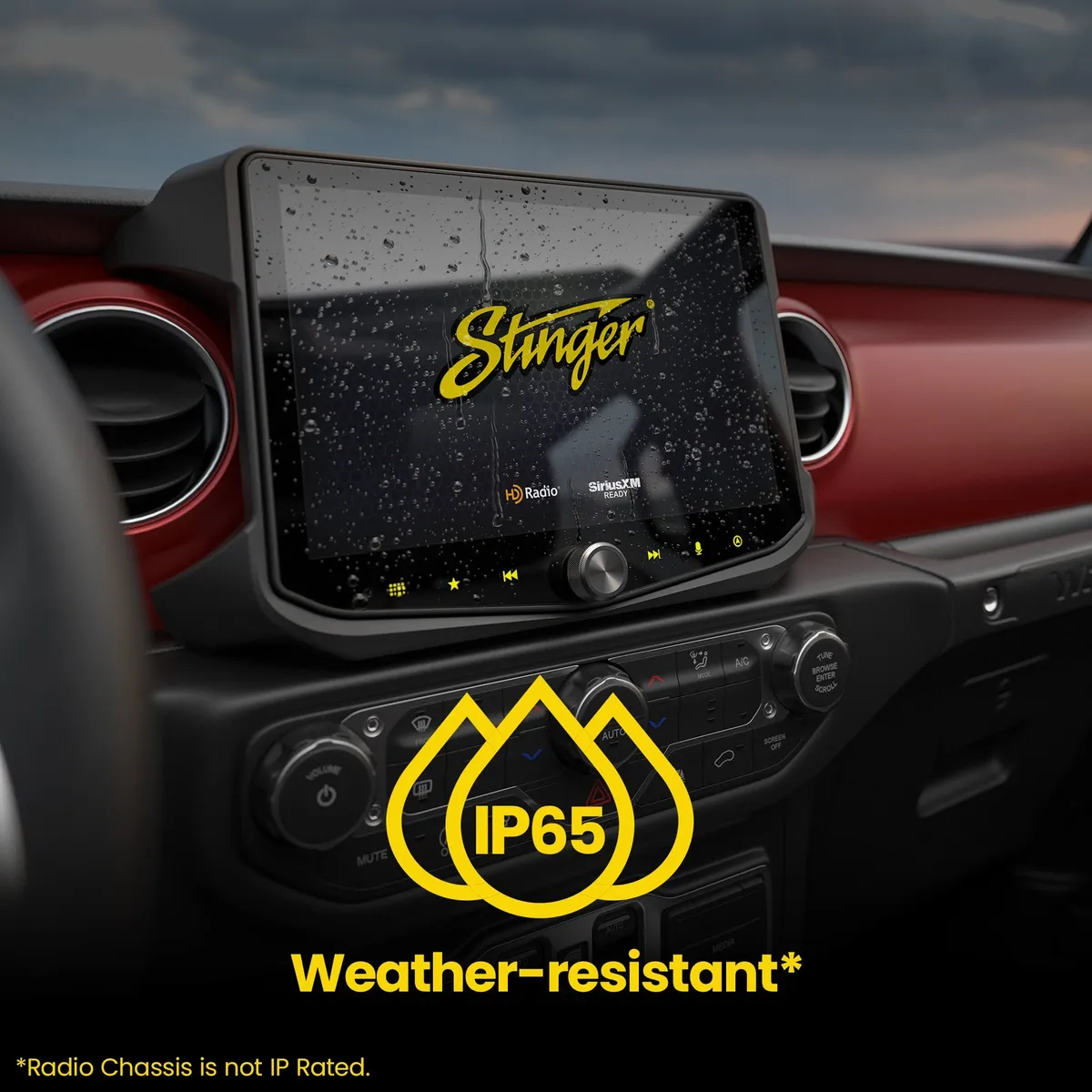

GPS requires the iGO Nav SD card. { "__shgImageElements": { "uuid": "s-f210ac16-d608-4c2c-a4ba-7d1a136bddc7" } } IP65 Weather Resistant Display: Optically bonded for dust and moisture protection*. *Radio Chassis is not IP rated.

On-Screen Accessory Control:

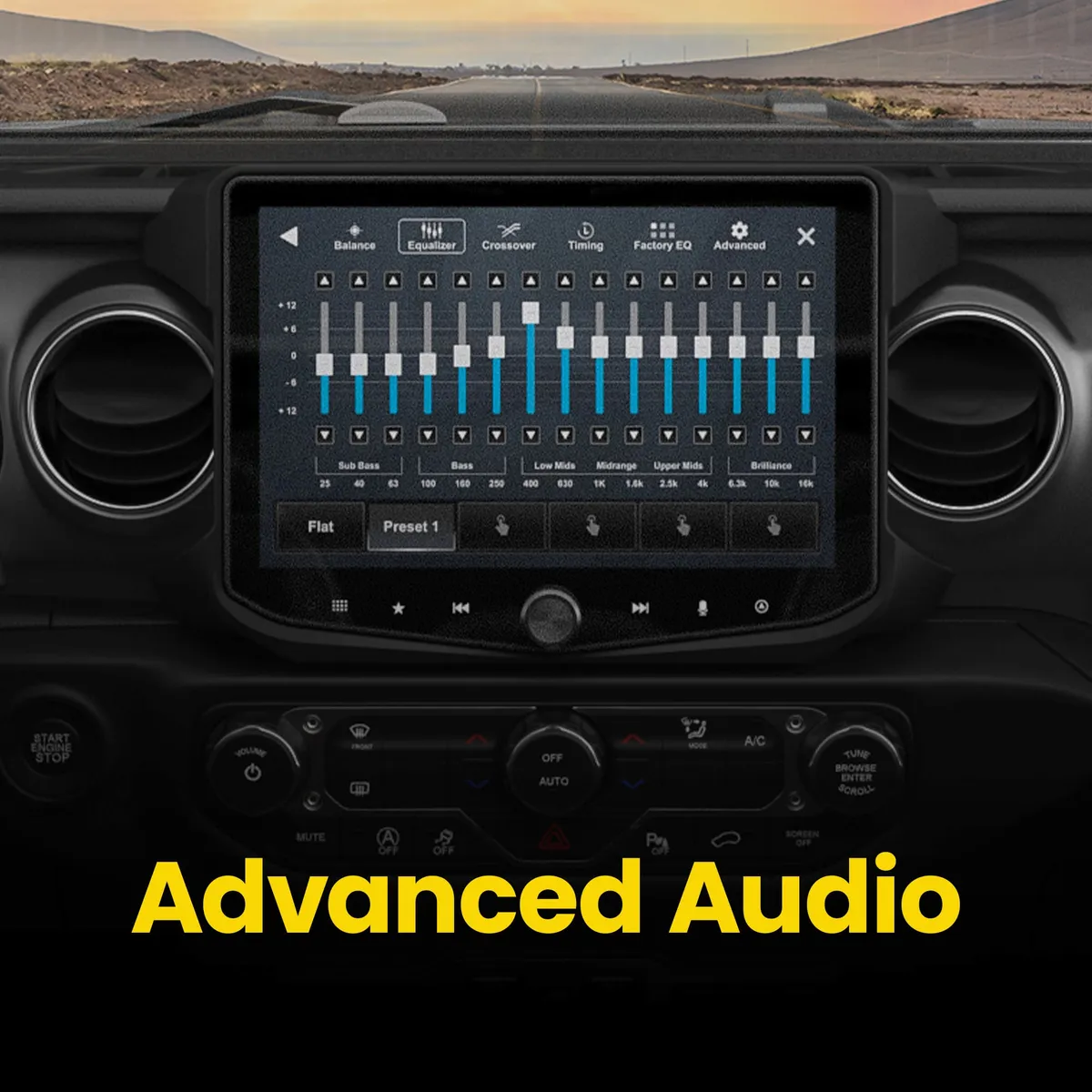

4 outputs allow you to control up to 4 accessories without additional switches. { "__shgImageElements": { "uuid": "s-c9f81670-fccd-463e-b22f-d783e351d014" } } Advanced Audio Features: Enhance the overall listening experience with a 15-band equalizer, capable of saving up to six custom presets, and enjoy superior Hi-Fi audio playback.

SiriusXM-Ready:
Offers a vast array of music, sports, and entertainment options (SiriusXM Connect Vehicle Tuner sold separately: SXV300).

Multiple Input Options :
3 USB Inputs (1-USB-C and 2 USB-A ports), HDMI input, and AV In. { "__shgImageElements": { "uuid": "s-c2c3f692-d2f2-4d15-90b6-82c789333aa8" } } HD Radio : Enjoy more local stations with clear digital sound, no static, and no subscription fees. Get access to additional content without the hassle of monthly payments.

Accessory Control :
Easily control up to four accessories on-screen with customizable icons (relays needed, SwitchHub recommended). { "__shgImageElements": { "uuid": "s-e240af80-947e-47fd-aec0-17041eaa5a80" } } AudioControl Compatibility: On-screen control of AudioControls's DM series processors and amplifiers for instant tweaks without the need to connect to a laptop or tablet.

ENLIGHT10 Lighting Integration:
Illuminate your ride and benefit from superior visibility with dynamic LED lighting that can be controlled on-screen. Description Enhance your driving experience with the Stinger HORIZON10 10" Radio Fully Integrated Kit, compatible with Jeep Wrangler JL and Jeep Gladiator JT. Featuring a stunning 10.1" HD touchscreen designed to resist glare, reflection, and fingerprints, this display ensures a flawless view every time. Stay seamlessly connected with hands-free Bluetooth and wireless integration of Apple CarPlay and Android Auto. Whether you're navigating city streets or rugged trails, the IP65 weather-resistant display is designed to withstand any adventure. Immerse yourself in rich, clear, and detailed sound for all your audio needs, and enjoy endless entertainment with SiriusXM-Ready capabilities (SiriusXM Connect Vehicle Tuner and subscription required). Navigate confidently with optional iGO Navigation via a Micro-SD card slot (SD card sold separately) and control up to four accessories directly from the display. The fully integrated kit also includes vehicle information gauges and off-road data, combining cutting-edge technology, durability, and superior sound quality for a truly enhanced and connected driving experience. What's in the Box 10-inch touchscreen display and infotainment system RadioPro Interface for Jeep Wrangler JL and Gladiator JT (2018-2023) Jeep Wrangler JL and Gladiator JT radio dash kit (SRK-JW18HX) Complete Plug-n-Play installation harness Antenna adapters for satellite and AM/FM radio Link Adapter for Stinger Radio High-definition factory camera retention module Vehicle and radio-specific plug-n-play harnessing SiriusXM Adaptor (retain factory-installed SiriusXM antenna) Tuner sold separately not on Stinger: SXV300V1 Stinger USB-A (2) & USB-C extension Chime Speaker (used on radio boot) Installation Guide Guides User Guide Installation Guide Specifications GENERAL Model Number: RB10JW18X Operating Voltage: 10.5VDC to 16VDC Grounding system; Negative Ground Max current consumption: 15A fused DIMENSIONS Radio Module: 177.7 mm x 112.96 mm x 50 mm (WxHxD) Display: 247.2 mm x 180.56 mm x 36.19 mm (WxH xD) DISPLAY 10.1- inch Diagonal 16:10 aspect ratio 1280 × 800 Pixels: 1,024,000 Active area 216.96 (W) x 135.6 (H) mm Operating Temperature (C) -20° to 70° AUDIO Load impedance: 4 Ω nominal / 2 Ω allowable Continuous power output: 18W x 4ch/4 Ω 20Hz to 20KHz, 1% THD at 14.4V Speaker level adjustment: 0-40 steps Audio Preamp Output level: 4.5Vrms typical Audio Preamp 8 Channels: Front 1 Left, Frontl Right, Front 2 Left, Front 2 Right, Rear Left, Rear Right, Subwoofer Left, Subwoofer Right.

Equalizer:
(15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/10KHz/16KHz Gain: +/- 6dB (0.5dB/step) Crossover level: 10 steps Front 1 and Rear output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass Slope: 6dB, 12dB, 18dB Level: 0-15,1db/step Front 2 output: HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass LPF: 25Hz|40Hz/63Hz|80Hz/100Hz/160Hz/250Hz/500Hz/1kHz/3.5kHz/5kHz/bypass Slope: 6dB, 12dB, 18dB level: 0-15,1db/step Subwoofer Pre-lineout: 4.5Vrms typical, 7vrms maximum without distortion LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160H z/250Hz Slope: 6dB, 12dB, 18dB Gain: 0db to 15dB (1dB/step) Subwoofer level: 0-15, 1db/Step Phase: 0 or 180 Time Alignment for 8 channels: 0 to 133 steps for inches and 0-99 steps for 9.9ms User Preset EQ: Rock, Hip-Hop, Electronics, Jazz, Pop, Flat.

Source Gain:
default 0db, -10 to 10 adjustable, 0.35db/Step.

Volume Settings:
Main Volume, Phone Volume, Navigation Volume, Voice Volume, Ringtone Volume adjustable separately. Supports Internal & External Smart DSP AKM AK7739 Audio Processor DAC- Advanced 32bit USB USB 2.0 (two) Max current supply 1.5A Max storage size: 128GB USB Class: A Supports: Video/Audio/Image Media Playback, Charging, and Firmware Update USB 3.0 (one) Max current supply 3А Max storage size: 128GB USB Class: C MSC (Mass Storage Class), MTP (Media Transfer Protocol) File system: FAT32, NTFS *Supports: Apple CarPlay, Android Auto, Video/Audio/Image Media Playback, Charging, and Firmware Update *When connecting Apple Car Play or Android Auto via USB, only USB-C connection is compatible. BLUETOOTH V5.1 dual 4dBm Class2 2.4GHz to 2.48GHz WIFI Support lEEE 802.11a/b/g/n/ac Support 802.11ac 1xl, Wave-2 compliant with MU-MIMO STA mode Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band HD RADIO™ FM TUNER 87.9MHz to 107.9MHz Usable sensitive 3dBuv (mono S/N: 30dB) SNR: 65dB AM TUNER 530KHz to 1710KHz Usable sensitive 25dBuv (mono S/N: 20dB) SNR: 58dB 4 CAMERA VIDEO INPUTS NTSC, PAL, AHD 25 & 30 mhz Mirror Camera Image ACCESSORY CONTROL 4x Accessory Control w. custom icon, name, & switch behavior HDMI INPUT Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720р, 1920*1080i, 1920*1080р TOSLINK Output: 48khz Variable AUDIO MPEG-1 Audio Layer-3 (mp3) FLAC (flac) MPEG-2 Advanced Audio (.aac) MPEG-4 Audio (m4a) Windows Audio (wav) OGG Audio (ogg) MP1 MP2 AAC AMR-NB AMR-WB APE PCM / ADPCM VORBIS OPUS WMA AC3/DDP DTS VIDEO MPEG-4 Video, H.264 (.mp4) Microsoft AVI (.avi) MPG Video (.mpg) MPEG Video 1/2 (.mpeg) VOB DVD (.vob) Flash Video (.flv) MPEG-1 MPEG-2 H.263 H.264 H.265 (HEVC) WMV 7/8 VC-1 VP8 M-JPEG IMAGE JPEG (.jpg) CompuServe GIF (.gif) PNG (.png) JPEG (.jpeg) Bitmap (.bmp) BACKGROUND IMAGE (USER) File Format: JPG / PNG Resolution: 1280 x 800 Vehicle Fitment Guide New Column New Column New Column New Column 2020-2023 JEEP GLADIATOR ALL TRIM LEVELS 2018-2023 JEEP WRANGLER FITS MOST TRIM LEVELS 2018-2023 JEEP WRANGLER UNLIMITED FITS MOST TRIM LEVELS Not compatible with 392 or Wrangler 4XE Hybrid Models New Firmware Stay up-to-date with the latest firmware for your HORIZON10! Get the newest features, enhancements, and performance improvements by visiting the product information page. Click here to be redirected! Warranty Information We have a 30-day easy return policy for all purchases. We provide a shipping label for defective products upon your return request at no cost. Non-defective products will not receive a shipping label and the consumer will be responsible for all shipping costs. Stinger products are warrantied against defects in materials One (1) Year from purchase date. Stinger will, at its discretion, replace any products that exhibit defects in materials and/or workmanship during the warranty period. Assessments of defective parts are performed before replacements are shipped or refunds are released. Please hold on to your order confirmation! All warranty service requires original sales receipt documentation with Order Number. The warranty only applies to the original purchaser.

Note:
Products purchased from unauthorized dealers are not covered under warranty. Warranty Limitations Units found to have physical or liquid damage caused by use abuse or improper installation may be void of warranty. FAQs Will it retain factory vehicle settings & features? Yes, it will retain factory features. Will it retain satellite radio & factory hot spot? No. Will it retain my factory Jeep HD cameras? Yes. It retains both the reverse camera and front camera. Will it work in a Jeep 4XE? No, you lose some hybrid settings when the factory radio is removed. Is it compatible with Tazer Products or Super Chips? It is compatible with the Tazer lite only. All other aftermarket tuners are NOT compatible. Does it retain Jeep Uconnect Features? No, it does not retain factory Uconnect features. Does the HEIGH10/HORIZON10/HORIZON12 retain the factory microphone? No, aftermarket radios have external mics as the factory ones are built to the specifications of the factory radio and are not interchangeable. *Don't see your question? Scroll down and ask one yourself.*
