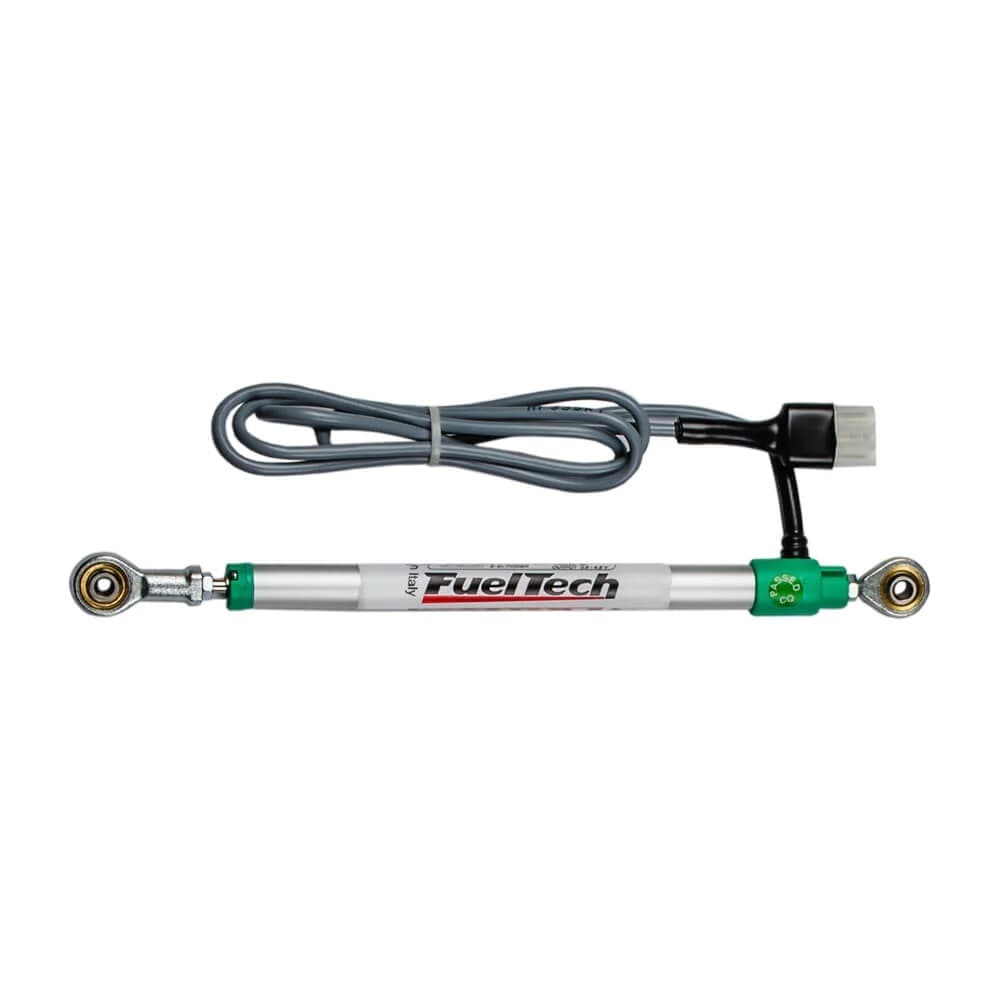

Travel Sensor - 0-4in
Shock Travel Sensor - 4 in Travel - 9 in Compressed / 13 in Extended - FuelTech ECU - Each
Secure Checkout
SSL Encrypted
Easy Returns
30-day policy
Guaranteed Fitment
Or your money back
Pay Over Time
With Affirm
The best way of monitoring your vehicle`s suspension and body movements.
Available travel lengths:
0-4", 0-6", 0-8" & 0-10". Can be used with any FuelTech PowerFT & VisionFT ECU (FT450, FT550, FT600, FT700 & FT700PLUS) Technical Description 4" Travel Sensor: Total Travel: 4" Length Closed: 9" Length Extended: 13" Mounting: 5mm Heim joints Cable Length: 41" 6" Travel Sensor: Total Travel: 6" Length Closed: 12" Length Extended: 18" Mounting: 5mm Heim joints Cable Length: 41" 8" Travel Sensor: Total Travel: 8" Length Closed: 13" Length Extended: 21" Mounting: 5mm Heim joints Cable Length: 41" 10" Travel Sensor: Total Travel: 10" Length Closed: 16" Length Extended: 26" Mounting: 5mm Heim joints Cable Length: 41" Voltage/Output: Supply voltage: 5V Signal Output: 0.5V - 4.5V Connector Pinout: Pin 1
- Ground (Brown) Pin 2
- Signal (Yellow) Pin 3 - 5V (Blue)
