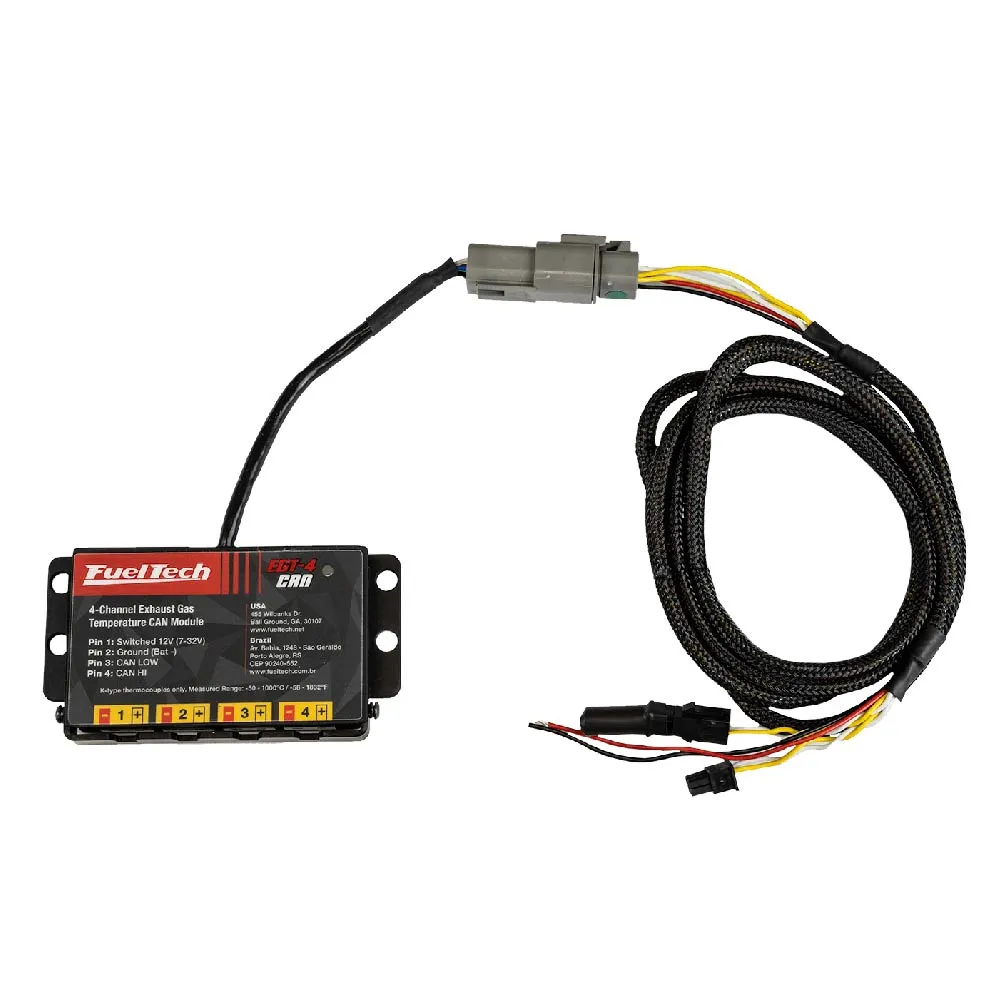

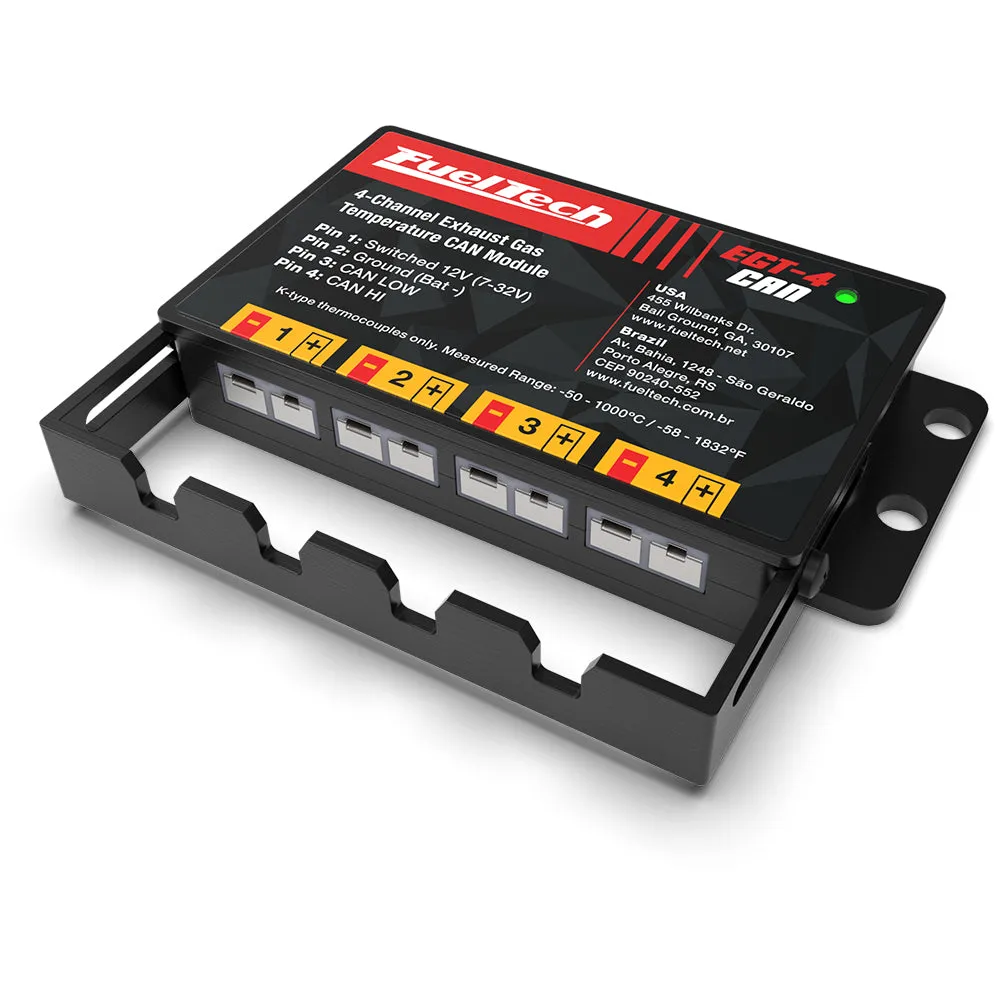

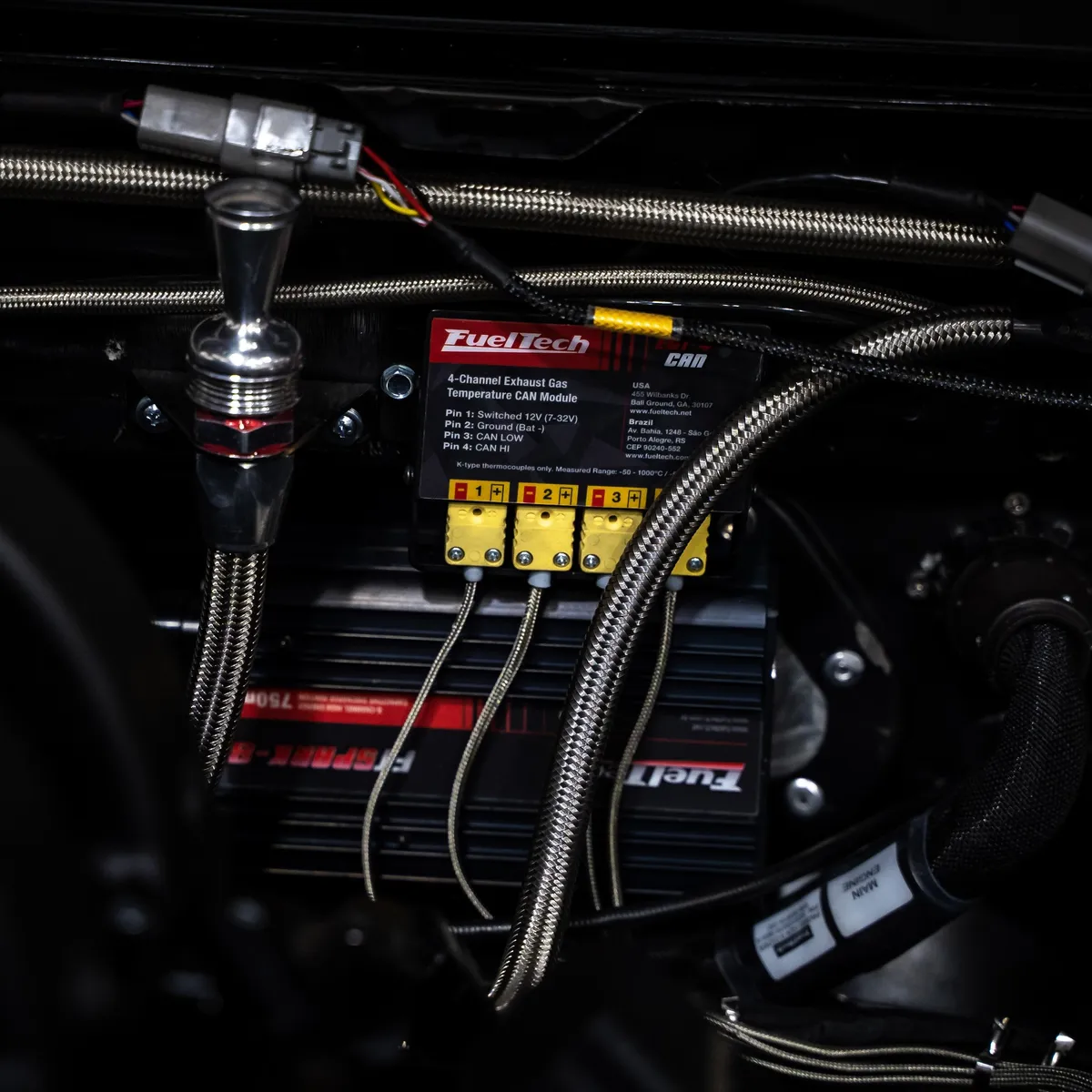

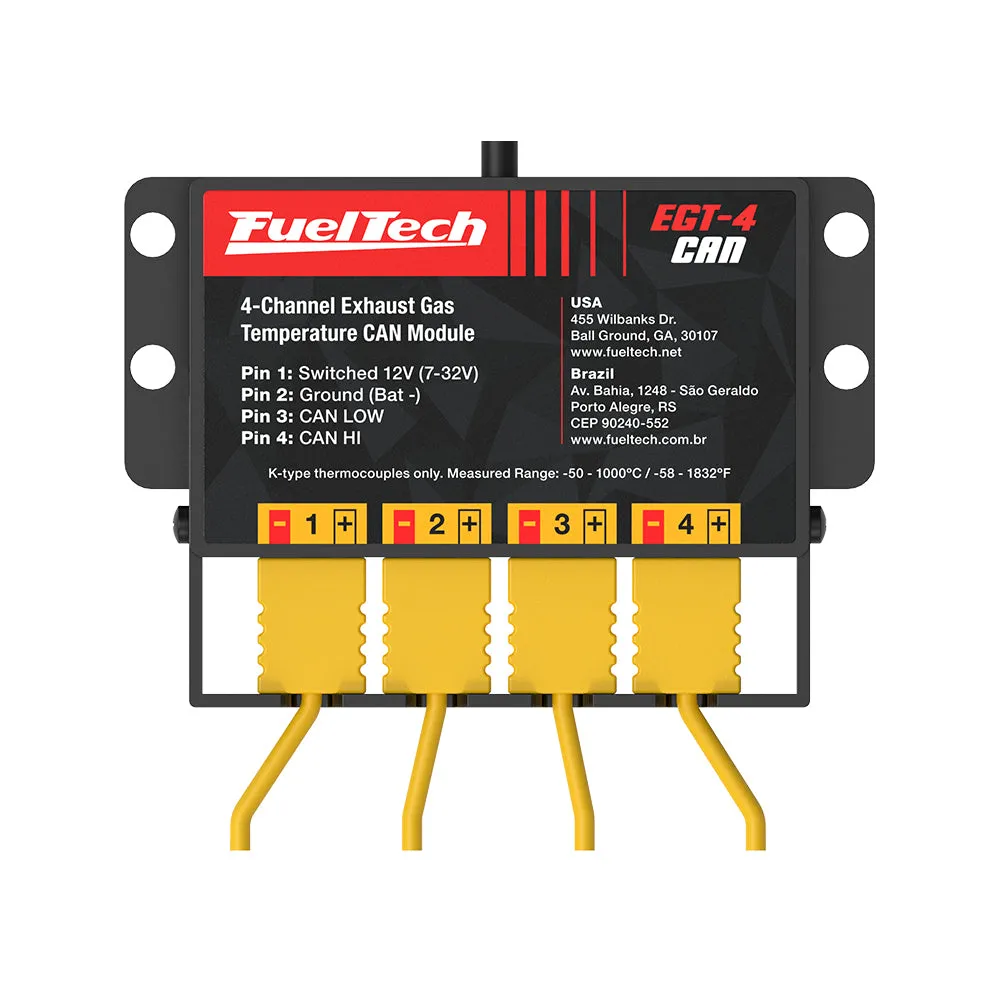

FuelTech's EGT-4 CAN is a 4-channel EGT controller CAN module , connecting up to 4 type K thermocouples and sending the input signals to the ECU via CAN bus communication. Compatible with FuelTech ECU's including the FT450 , FT550 , FT550LITE , FT600 , FT700, and FT700PLUS.In addition to acting as a 4-channel type K thermocouple CAN module , the EGT-4 acts as an input expander, removing up to 4 type K thermocouple inputs (grounded junction or not), such as EGT's, CHT's, oil, air, water, or other temperatures from the white ECU input channels by allowing them to communicate via the CAN bus network. Up to 4 EGT-4 modules may be used in the same installation , making up to 16 input channels available for additional data acquisition.

DOWNLOAD MANUAL Related Products:
EGT-4 CAN Wiring Harness EGT-4 Connector Kit
- Male EGT-4 Connector Kit
- Female EGT-4 CAN Manual PACKAGE OPTIONS V8 / 2 units, harnesses, and 8 sensors: w/ 2 harnesses 2 of each 42"/36"/30"/24" Thermocouple sensors included Add second EGT-4 CAN unit 6 cylinder / 2 units, harnesses and 6 sensors: w/ 2 harnesses 48"/42"/36"/30"/24"/18" Thermocouple sensors included Add second EGT-4 CAN unit 4 cylinder / harness and 4 sensors: w/ harness 42"/36"/30"/24" Thermocouple sensors included 4 rotor / harness and 4 sensors: w/ harness 4 of the 36" Thermocouple sensors included 3 rotor / harness and 3 sensors: w/ harness 3 of the 36" Thermocouple sensors included 2 rotor / harness and 2 sensors: w/ harness 2 of the 36" Thermocouple sensors included TECHNICAL DESCRIPTION Inputs: 4 type K thermocouple inputs Outputs: 1 CAN Dimensions: EGT-4 CAN : 4.33 x 2.28 x 0.7 in EGT-4 CAN Packaging: 8.78 x 6.38 x 2.36 in Weight: EGT-4 CAN : 4.87 oz EGT-4 CAN Packaging without harness 78.75 in: 12.13 oz Contents of packaging: 1 EGT-4 CAN 1 Installation and operation manual Warranty: Worldwide: 1 year
