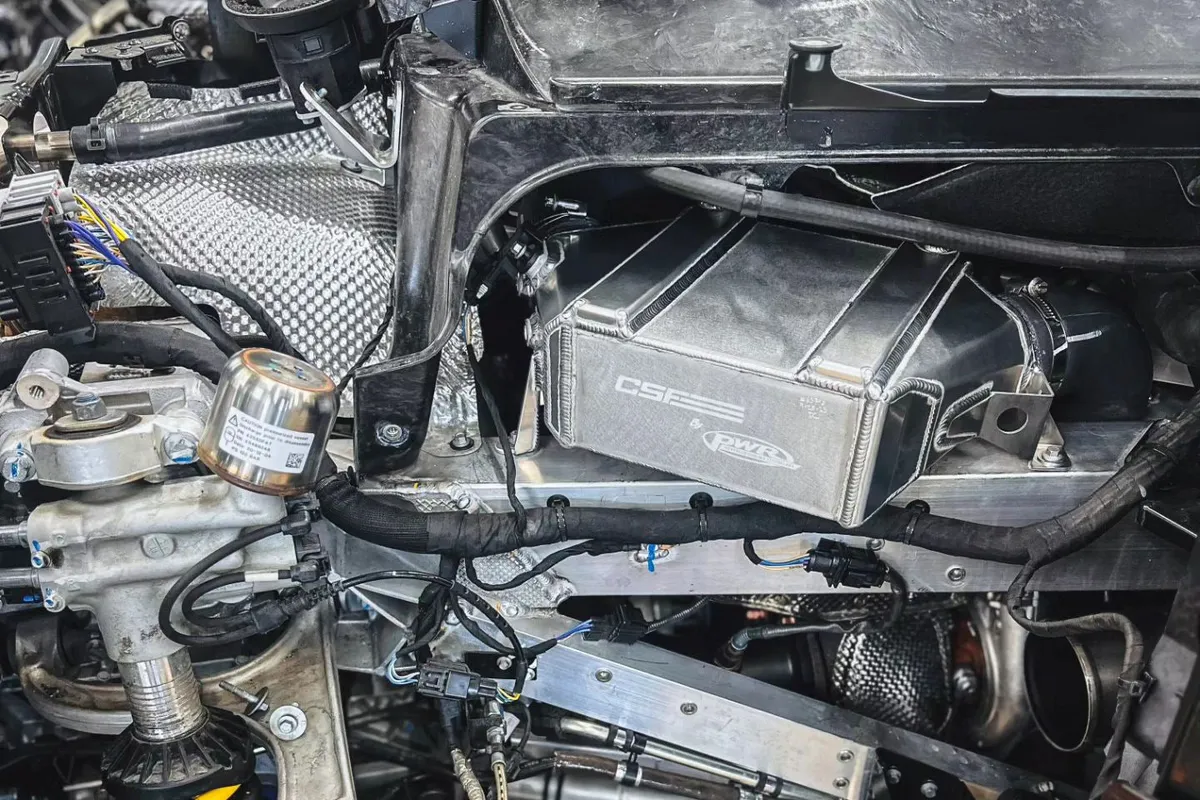

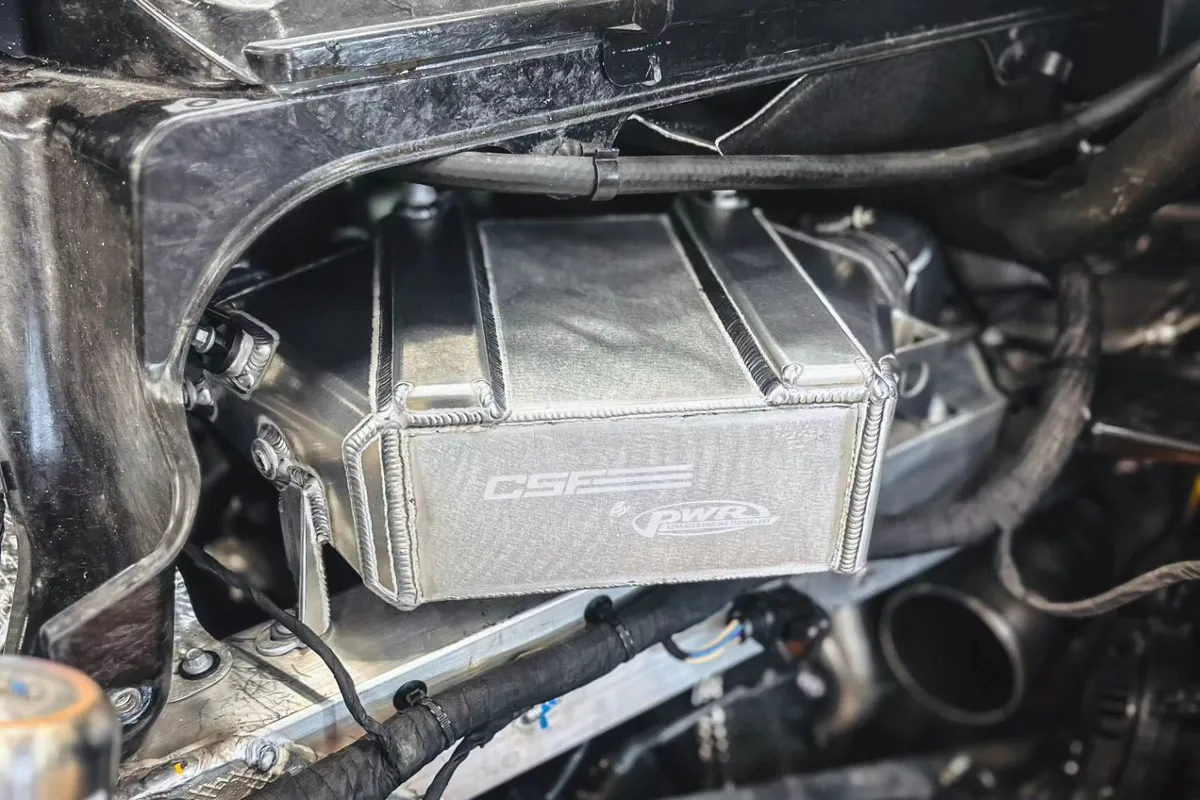

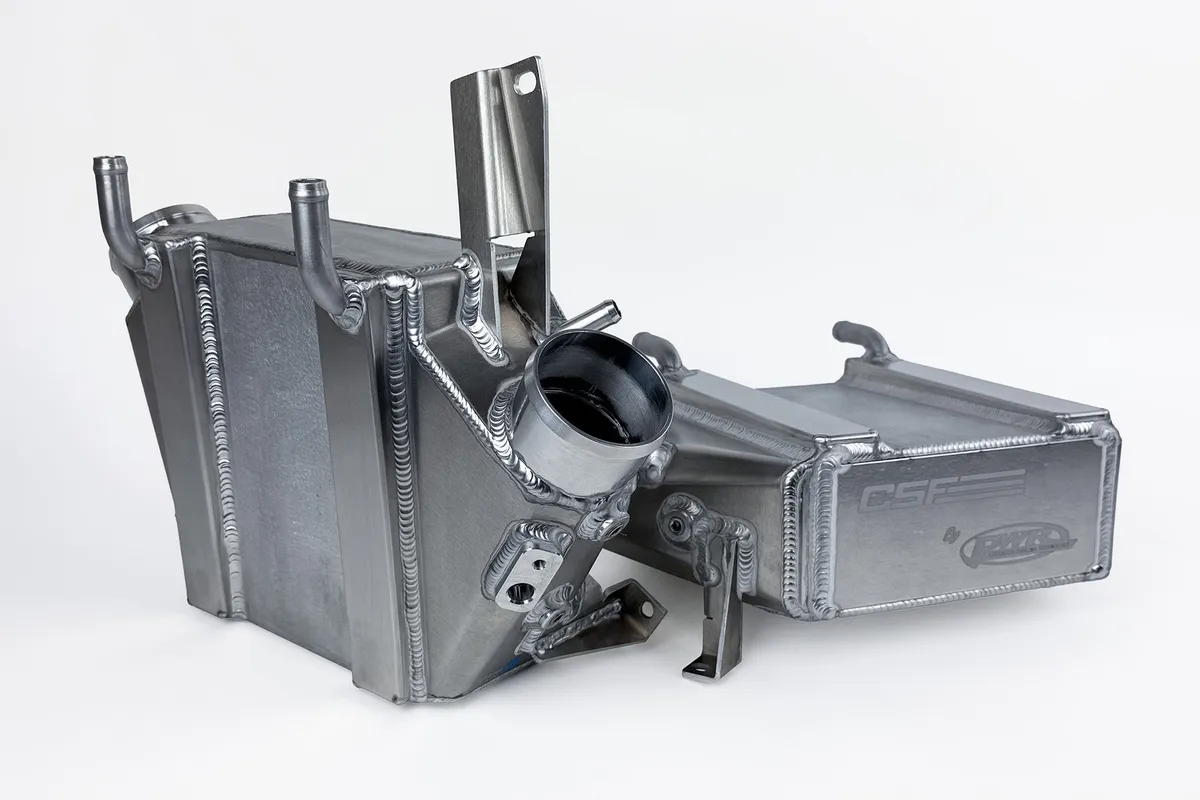

Click Here for the Full Press Release & Additional Product Details CSF's original Charge-Air-Coolers (Intercoolers) for the McLaren 720S made waves when released in
2021. This system delivered an astonishing 99% thermal efficiency and could be found in the fastest, most powerful McLarens in the world. However, even proven success can be improved upon. In 2024, CSF went back to the drawing board to address fitment for Spider models and streamline manufacturing amid supply chain challenges. The result is an all-new, reengineered Charge-Air-Cooler system developed in partnership with CSF's strategic partner PWR. Compact, more efficient, and now compatible with Spider models, this next-generation system sets a new benchmark in performance cooling for the McLaren 720S, 765LT, GT, plus the new 750S and GTS. Product Details Design & Engineering This updated system was developed in collaboration with PWR, one of CSF’s strategic manufacturing partners. PWR is known for their motorsports expertise, manufacturing cooling systems for F1, WRC, MotoGP, and more. Together, CSF & PWR have created a high-performance solution tailored for the most demanding McLaren owners, tuners, and race teams. Both CSF and PWR are Tier-1 OEM-certified cooling manufacturers that specialize in high-performance heat exchangers. These new McLaren Charge-Air-Coolers use advanced core technology, optimized for minimal pressure drop and maximum thermal transfer. Each pair of coolers are made here in the USA with in-house pressure-testing, and quality inspections to meet the stringent demands of McLaren owners. This system delivers unmatched cooling performance for the 4.0L twin-turbo V8 (M840T) found in the 720S, 765LT, 750S, GT, and GTS. The CSF by PWR Charge-Air-Coolers are handcrafted and professionally tig welded in the USA. Each unit is made with the highest level of craftsmanship and durability that is unmatched anywhere else in the aftermarket.

Key Features:

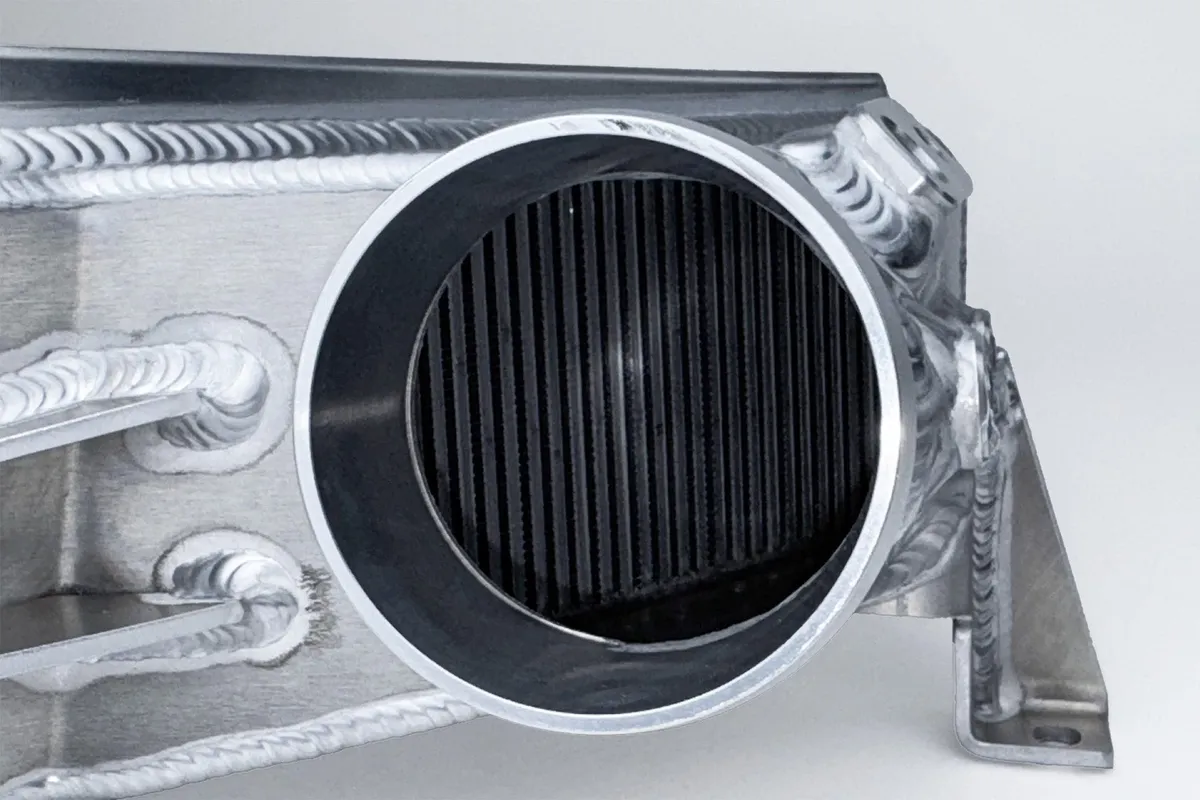

Advanced core technology with optimized fin design for maximum thermal efficiency Minimal pressure drop for improved performance under high-boost conditions Fully TIG-welded by hand in the USA for unmatched quality and durability 100% in-house manufacturing with thorough pressure testing and quality control Engineered for the GT, GTS, 720S, 765LT, and 750S compatible with both Coupe and Spider models CSF vs OEM The OEM McLaren units are very well engineered, offering up to 94% thermal efficiency while handling modest boost increases quite well. This strong baseline performance made developing an upgraded system quite challenging. CSF’s original design (#8186) managed 99% efficiency, but the larger cores caused fitment issues for the Spider models. The new design solves this, delivering exceptional performance in a more compact package that fits all GT, GTS, 720S, 765LT, and 750S variants. Formula 1 Grade Core The new CSF coolers feature hand-built bar/plate cores manufactured in PWR’s Tier-1 OEM facility here in the USA (Indianapolis, IN). Each core is produced to aerospace-level tolerances using extremely lightweight and thin materials. This allows for a higher concentration of internal fins, maximizing heat transfer efficiency. The PWR bar/plate core uses 3 times as many fin rows compared to the factory tube & fin core. Bar/plate cores also have a much higher burst pressure rating and can take the stress of boost spikes much better than tube/fin cores. What makes these cores exceptional isn’t just the materials, but the craftsmanship as well. Building each core is an intensive process requiring expert technicians and precision welders capable of working with cladding as thin as 0.3mm. Only five cores can be built per day by a qualified technician, and welding them requires the highest level of fabrication skill.

Core Construction Highlights:
Air-side & water-side fin thickness: 0.08mm (~50% thinner than conventional cores) Air-side bars: 5.35mm tall vs. ~7.5mm in standard cores (allows more rows for greater surface area) Cladding thickness: 0.3mm , enhancing thermal transfer and reducing weight Air-side Fins Per Inch : 28 FPI using rolled fin geometry (~100% more than typical cores) Water-side Fins Per Inch : 26 FPI (vs. conventional bar/plate core ~18 FPI).

End plates:

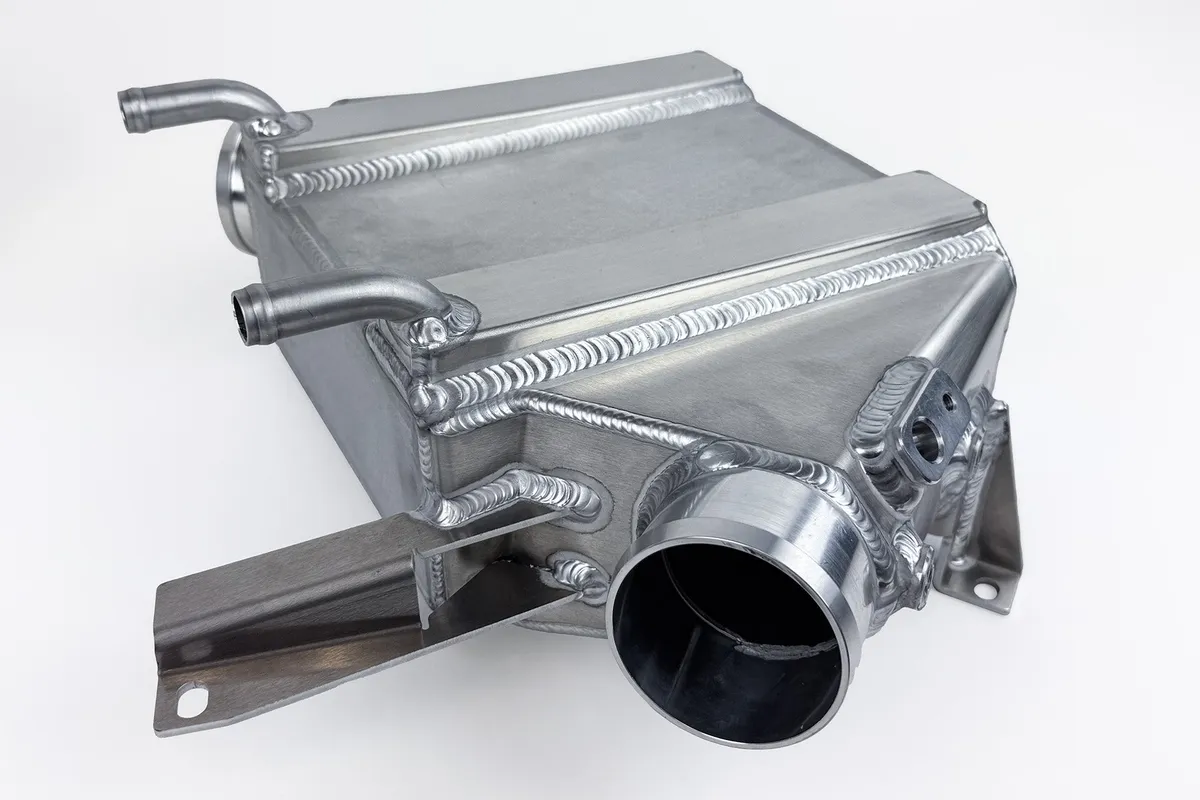

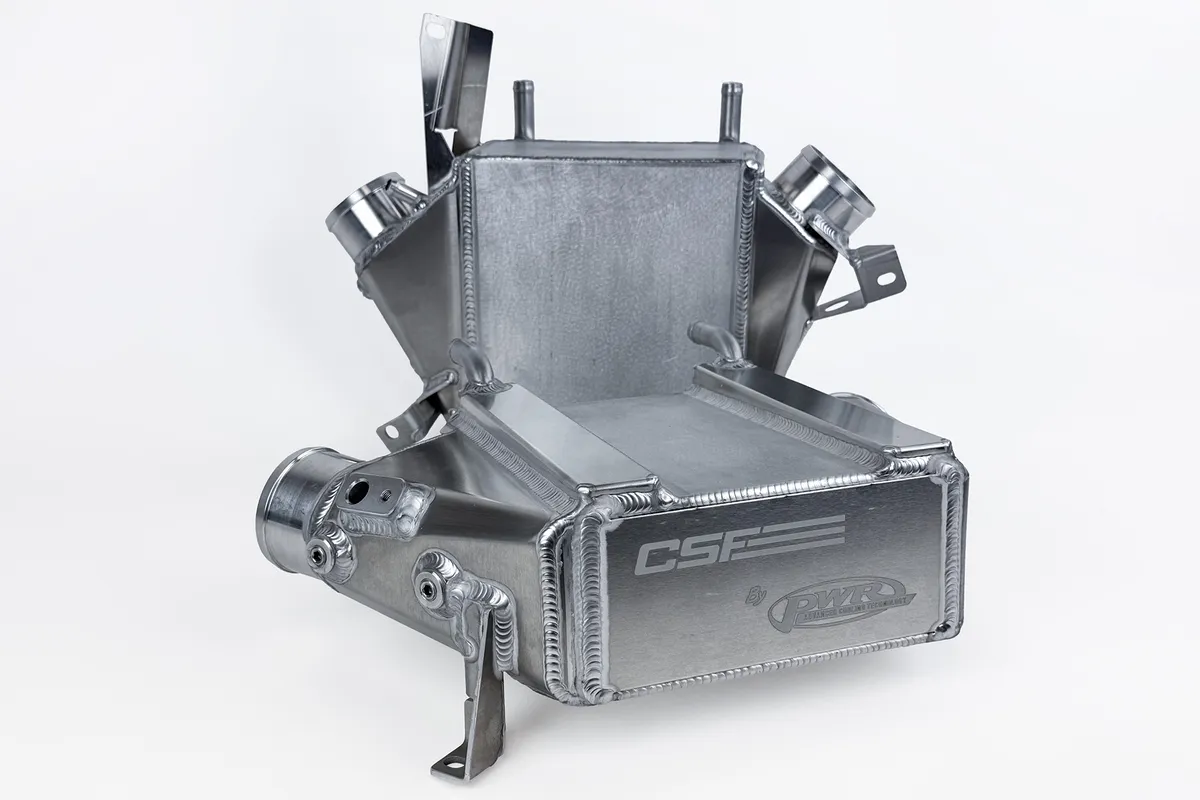

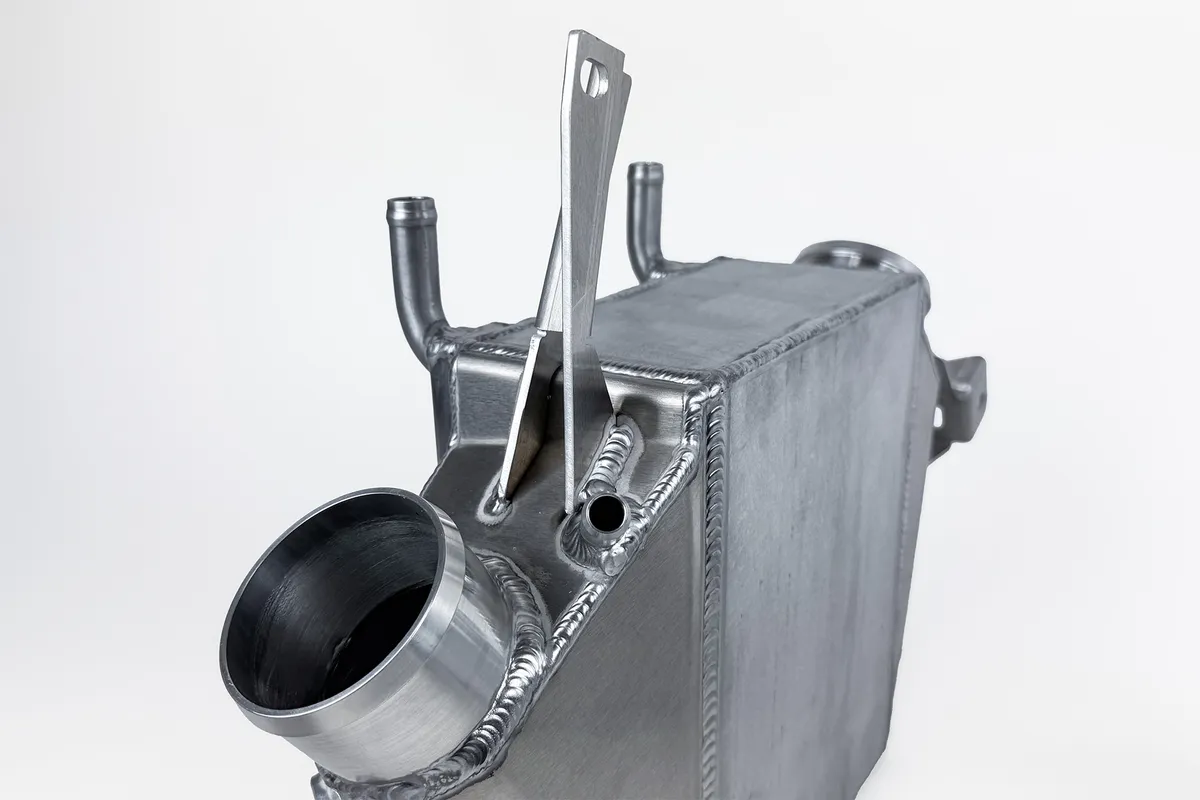

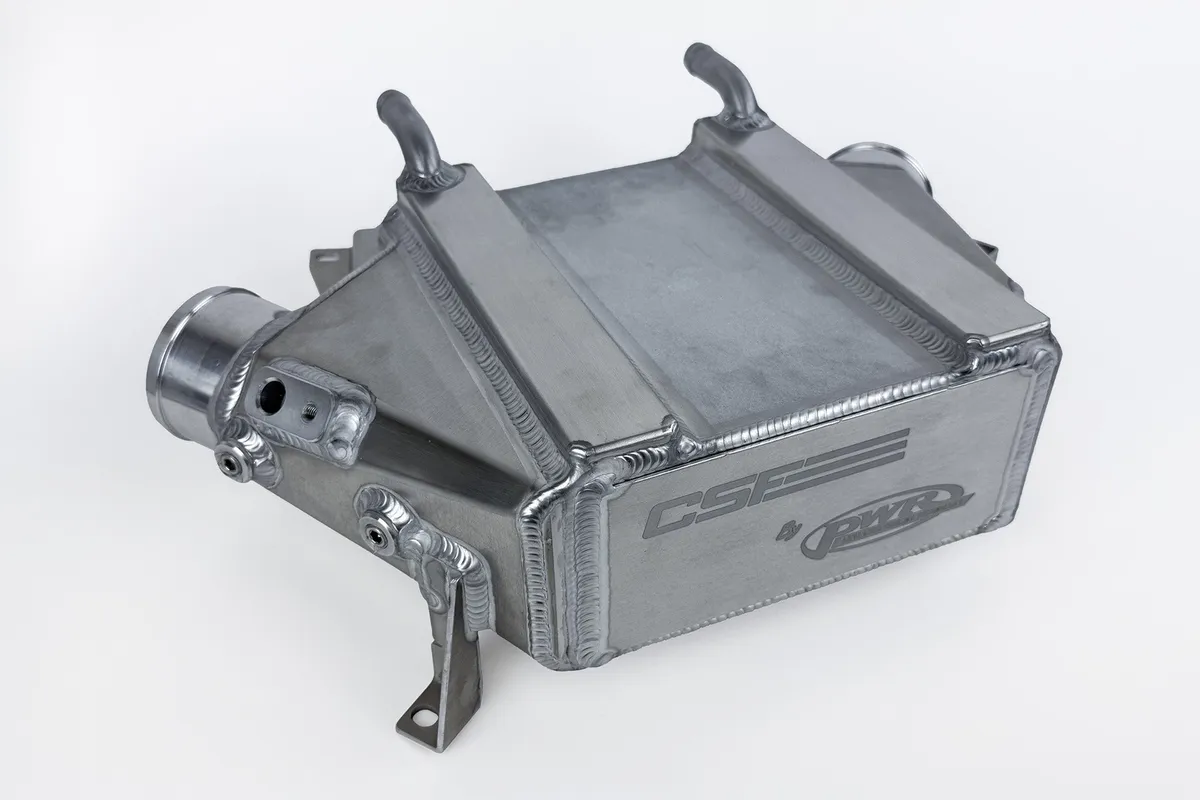

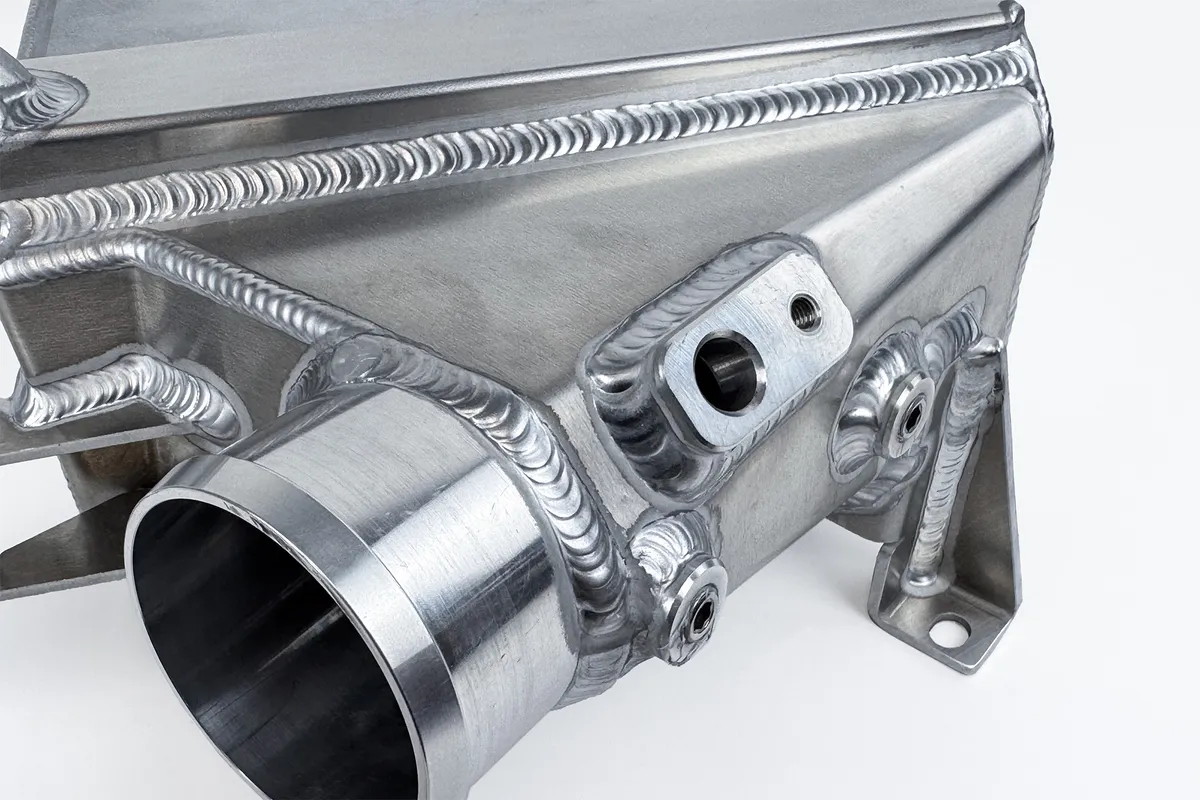

1.5mm thick with pocketed 3mm extrusions for max core volume and weld precision Feature CSF by PWR OEM # Cooling Fin Rows 44 14 # Cooling Tube Rows 43 15 Core Material Aluminum Aluminum Tank Material Aluminum Aluminum Construction 100% TIG Welded Brazed Tank Design & Construction One of the other shortcomings of the factory coolers is their ability to handle high boost. The factory coolers are an all metal construction with extrusion formed tanks brazed to the cores. This is much stronger than the more common plastic tank with crimped-on gasket seals, but it still leaves room for improvement. The brazed joint is still a weak spot in the system and can burst at higher boost pressures. The new CSF Charge-Air-Coolers fully TIG welded the all aluminum tanks to the cores. This construction method offers the strongest possible coolers that will handle much higher boost pressures than the factory coolers. The Ultimate Cooling Solution Whether you need more cooling for your high horsepower build with big turbos or just want to stave off heat soak on track days, the CSF by PWR Charge-Air-Coolers are the cooling solution your McLaren needs. Features Sold as a pair (Left & Right Charge-Air-Coolers / Intercoolers) Faster recovery of Intake Air Temperatures (IATs) No pressure drop compared to OEM core High performance bar/plate intercooler core by PWR pressure tested to 120psi Plug-and-Play "Drop-in Fit" Installation
- Requires No Modifications CNC Machined Mounting Brackets and OEM Style Inlet/Outlet 100% All Aluminum TIG-Welded Construction Hand Brushed Satin Finish True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications Individually Leak and Pressure Tested Limited Lifetime Warranty Applications Year Range Make Chassis Code Model Trim Engine / Trans / Etc Notes 2018-2023 McLaren - 720S Base Turbocharged 4.0L V8 - 2019-2024 McLaren - 720S Spider Turbocharged 4.0L V8 - 2023-2025 McLaren - 750S Base Turbocharged 4.0L V8 - 2023-2025 McLaren - 750S Spider Turbocharged 4.0L V8 - 2021-2024 McLaren - 765LT
- Turbocharged 4.0L V8 - 2019-2023 McLaren
- GT
- Turbocharged 4.0L V8 - 2024-2025 McLaren
- GTS
- Turbocharged 4.0L V8
- OEM Part Numbers McLaren: 14F0656CP04 McLaren: 14F0657CP04 McLaren: 14F0656CP.04 McLaren: 14F0657CP.04 McLaren: HA700E3Y1I04 McLaren: HA700E3Y1H04 Warranty Cooling Systems and Flexibles, Inc. (CSF) warrants CSF’s High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. For more information and details please visit our Warranty Page SKU# 8352 Warranty Term: Limited Lifetime
