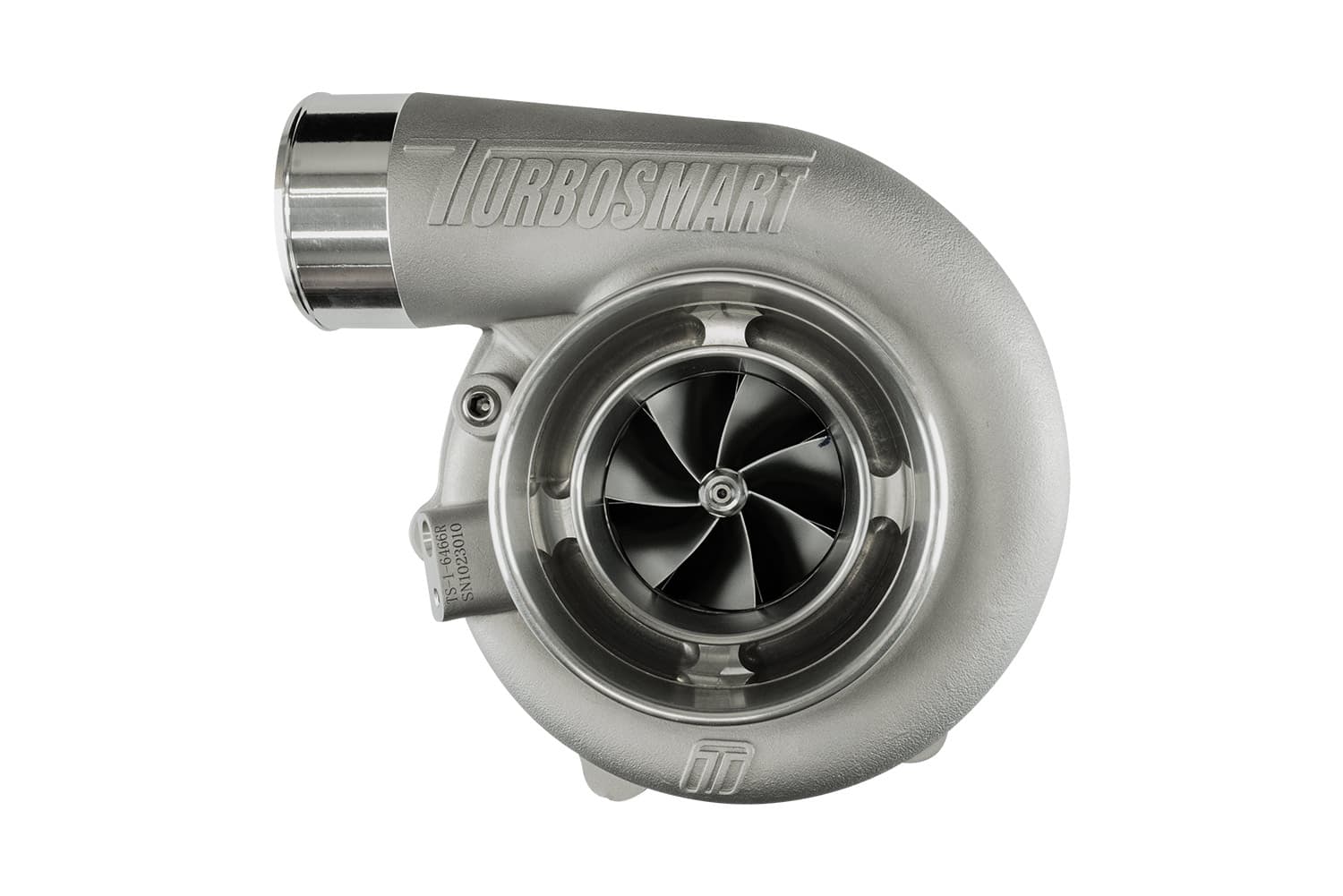

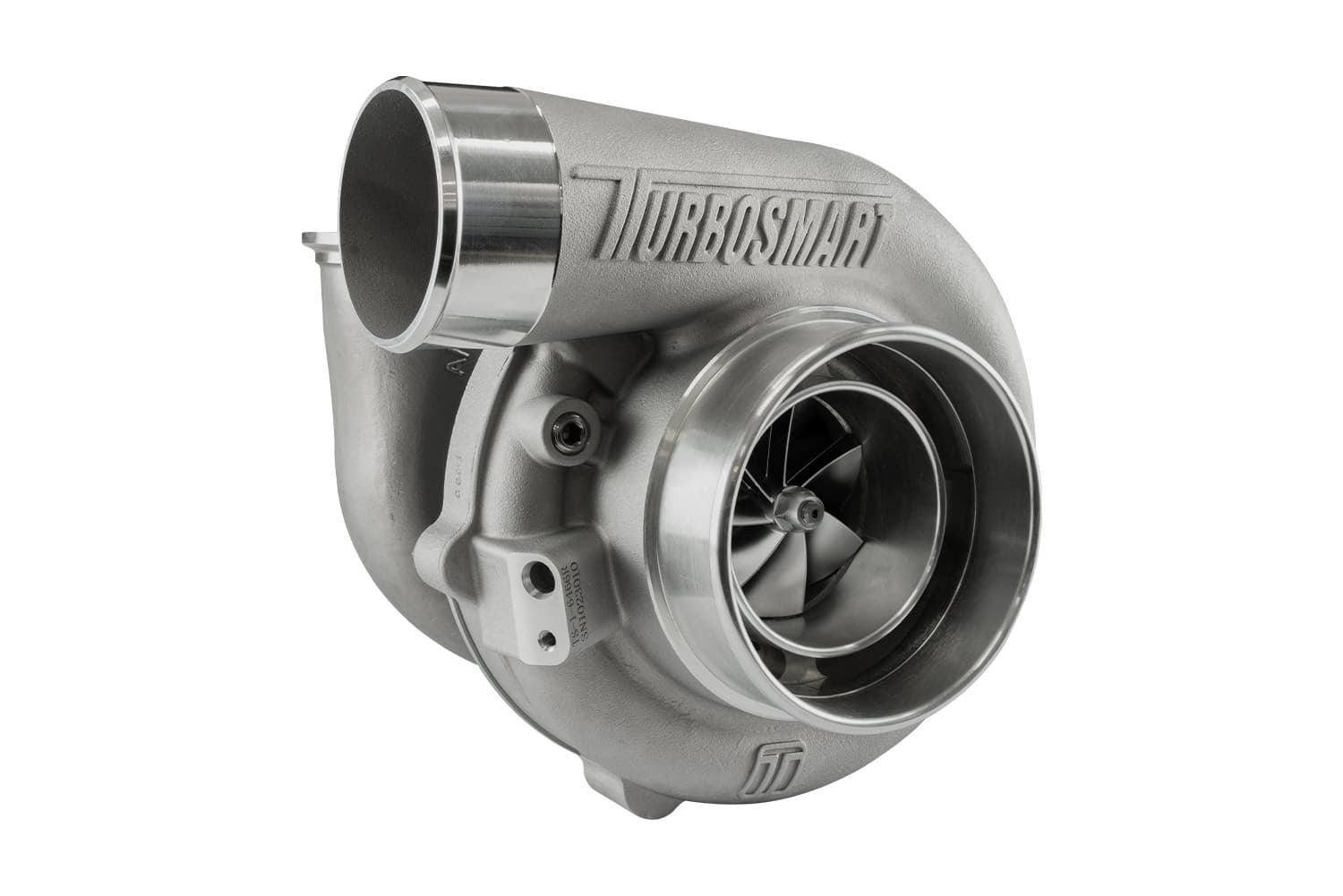

Name: TS-1 Turbocharger 6262 V-Band 0.82AR Externally Wastegated Reversed Rotation
Brand: Turbosmart
SKU: TS-1-6262B-VR082E
Price: 2216.61 USD
Availability: InStock

Turbocharger
- TS-1 - 62 mm Inlet
- V-Band Outlet
- External Wastegate
- Reverse Rotation
- Aluminum
- Natural
- Universal
- Each

Overview

TS-1 Turbocharger 6262 V-Band 0.82AR Externally Wastegated Reversed Rotation

Length	11.93 in
Width	11.46 in
Height	10.12 in
Part Number	TS-1-6262B-VR082E
UPC	09329677028997
Available in	TS-1 oil cooled turbochargers
Compressor Inducer	62mm
Compressor Inlet	4.0 in. / 101.6mm
Country of Origin	AU
Emissions	Racing or Pre-Emissions Use Only
Height	11
Height (in)	10.12
Installation Instructions	TS-1-6262VR082E.pdf
Item Quantity/Size	1 EA
Length	12
Length (in)	11.93
Package Contents	(1x) Turbosmart Performance Turbocharger (2x) Weld Flanges (Turbine inlet and outlet) (2x) V-Band Clamps (Turbine inlet and outlet) (1x) Oil drain gasket
Prop 65	Warning - Both Cancer and Reproduction.JPG
Qty Per Application	As Required:1 Each
Turbine AR	0.82
Turbine Exducer	62mm
Turbine Inlet	V-Band (2.25 in.)
Turbine Outlet	V-Band (3.00 in.)
Warranty	24 Months
Weight	6.06kg / 13.3lbs

TS-1 Turbocharger 6262 V-Band 0.82AR Externally Wastegated Reversed Rotation

Overview

Complete the BuildMore from Turbosmart

FPR Gauge 0-100psi Liquid Fill Automotive type Universal

Boost Gauge 0-30psi 52mm - 2 116 Automotive type Universal

Turbosmart - TS-0203-1223 - Turbocharger Blow Off Valve

2011 WG384045 10PSI Outer Spring BrownBlue Automotive type Universal

Turbosmart - TS-0204-1405 - Turbocharger Blow Off Valve

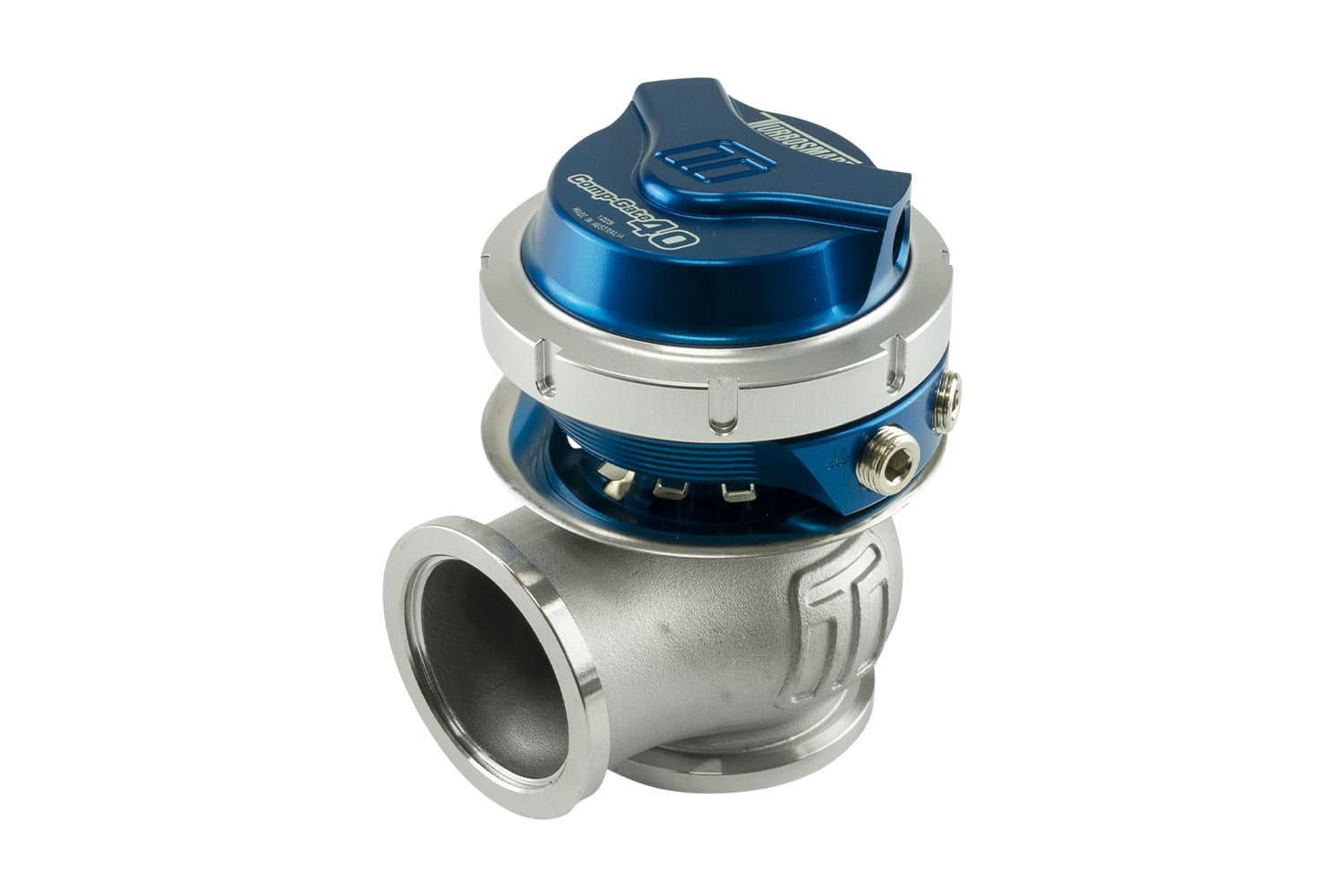

Turbosmart - TS-0552-1011 - Turbocharger Wastegate

Related Articles

Jeep Gear Ratios: Choosing the Right Gears for Your Tire Size

Complete Jeep Recovery Gear Checklist for Every Trail

Spring Clean Your Jeep: Complete Winter Recovery Guide

You May Also Like

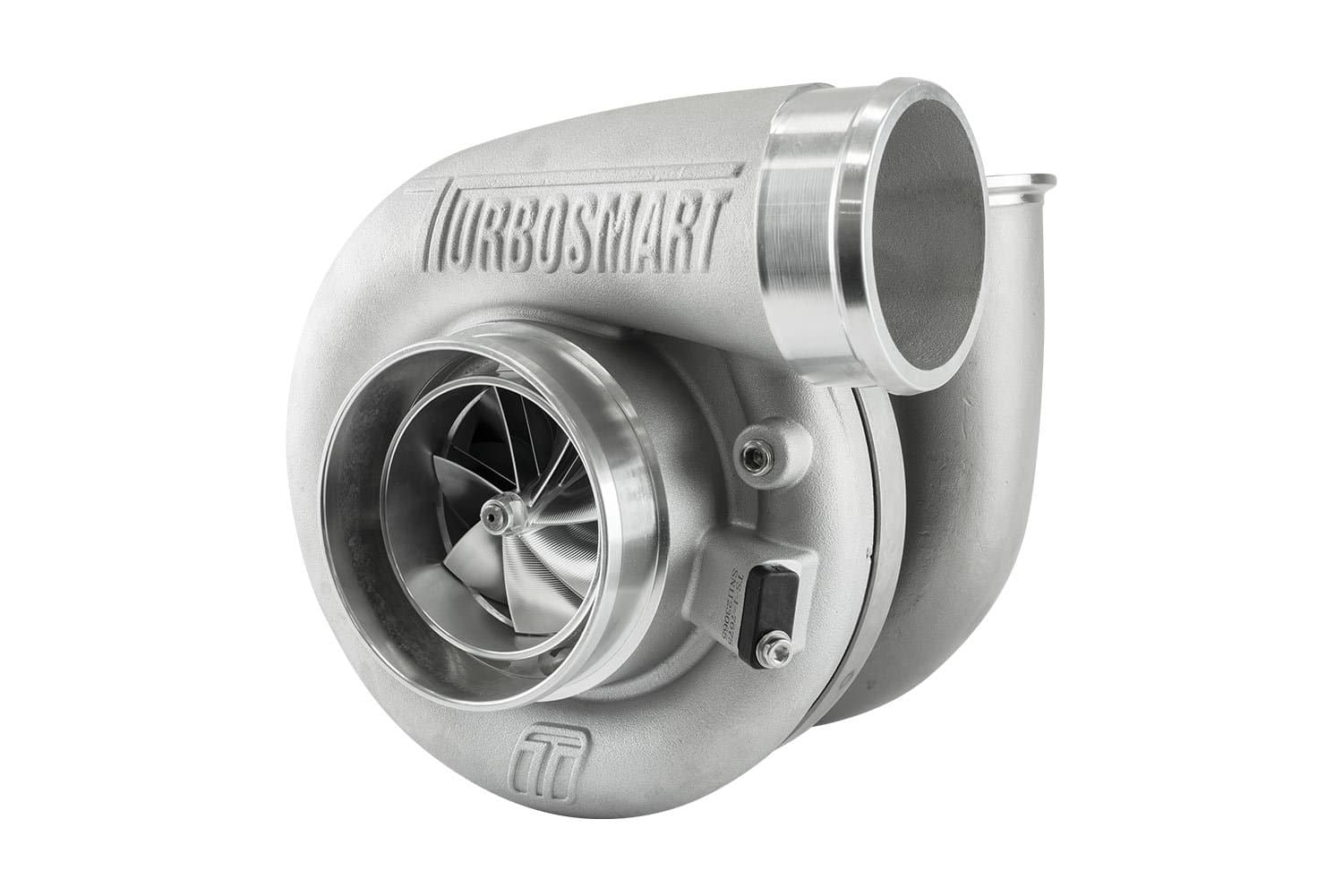

TS-1 Turbocharger 7675 V-Band 0.96AR Externally Wastegated

BD Diesel 179514-B Exchange Twin Turbo Assembly - Ford 2008-2010 6.4L PowerStroke

TS-2 Turbocharger Water Cooled 6466 V-Band 0.82AR Internally Wastegated

TS-1 Turbocharger 5862 V-Band 0.82AR Externally Wastegated

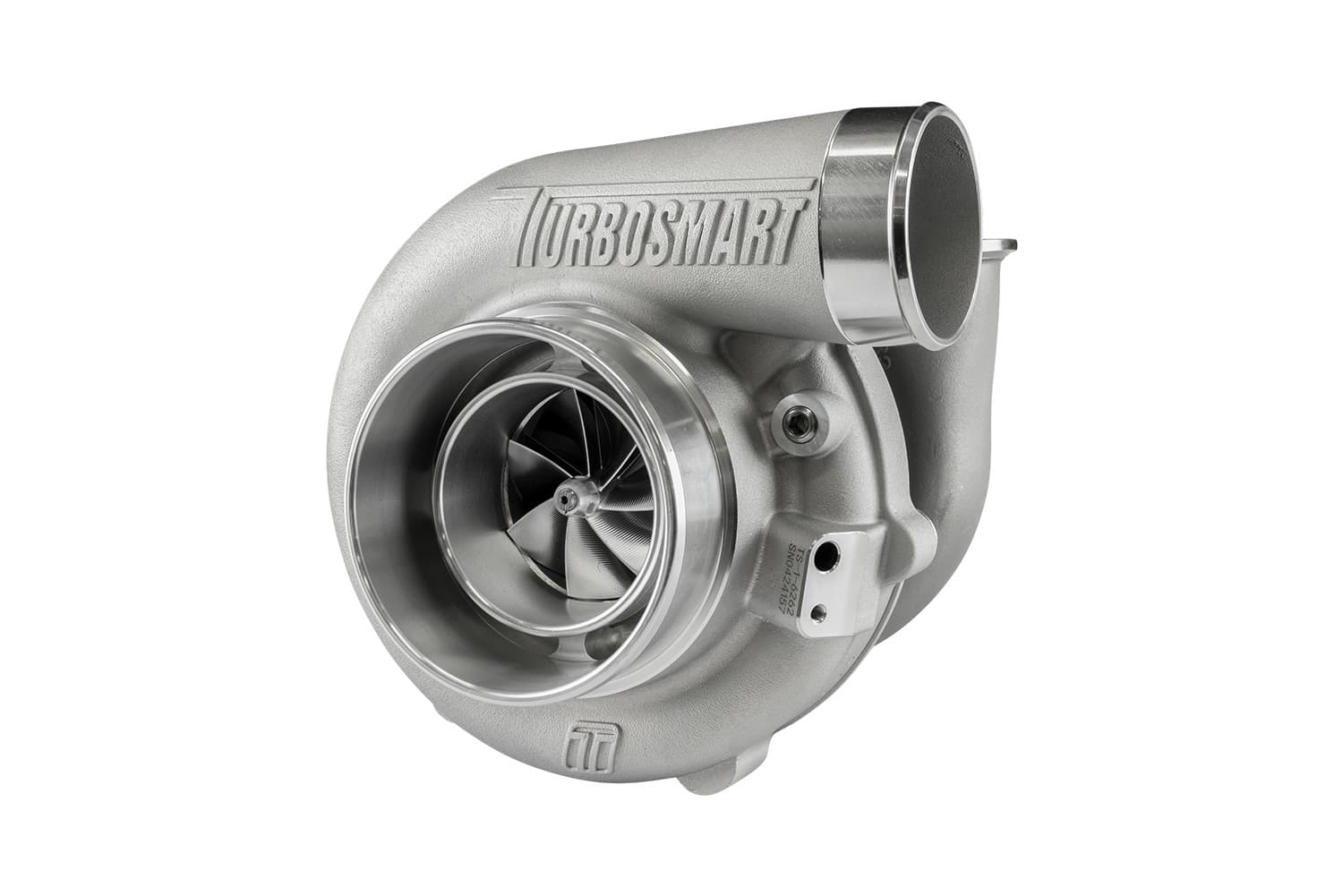

TS-1 Turbocharger 6262 V-Band 0.82AR Externally Wastegated
