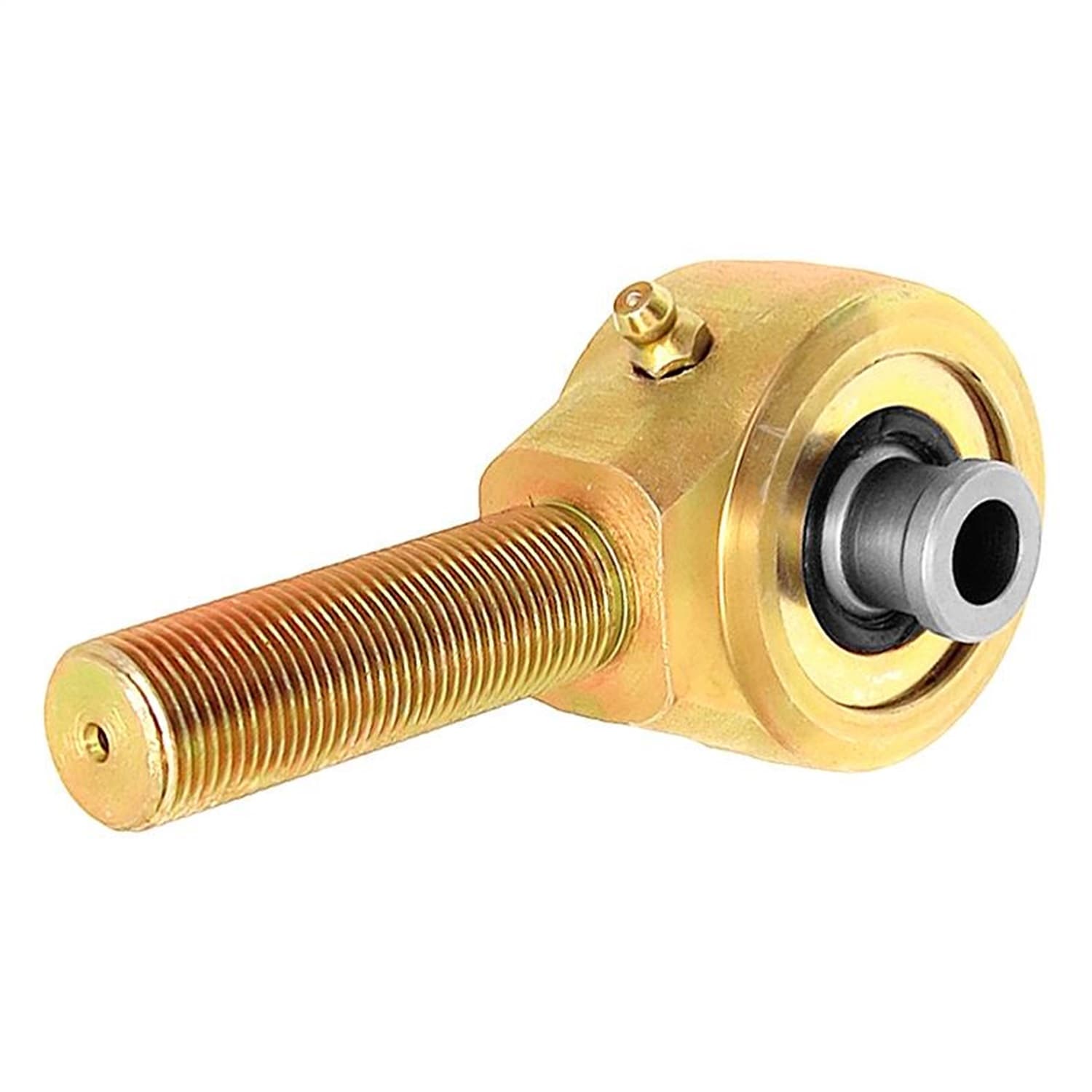

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 3/4 Inch-16 left hand threads on the shank, and a 2 Inch mounting width ball with a .4375 Inch thru bolt hole.

Finished in gold zinc plating. Details:
Narrow Forged Johnny Joint 2 Inch 2 Inch X 0.4375 Inch Ball 3/4 Inch-16 Left Hand Threaded Shank Externally Greased Each
